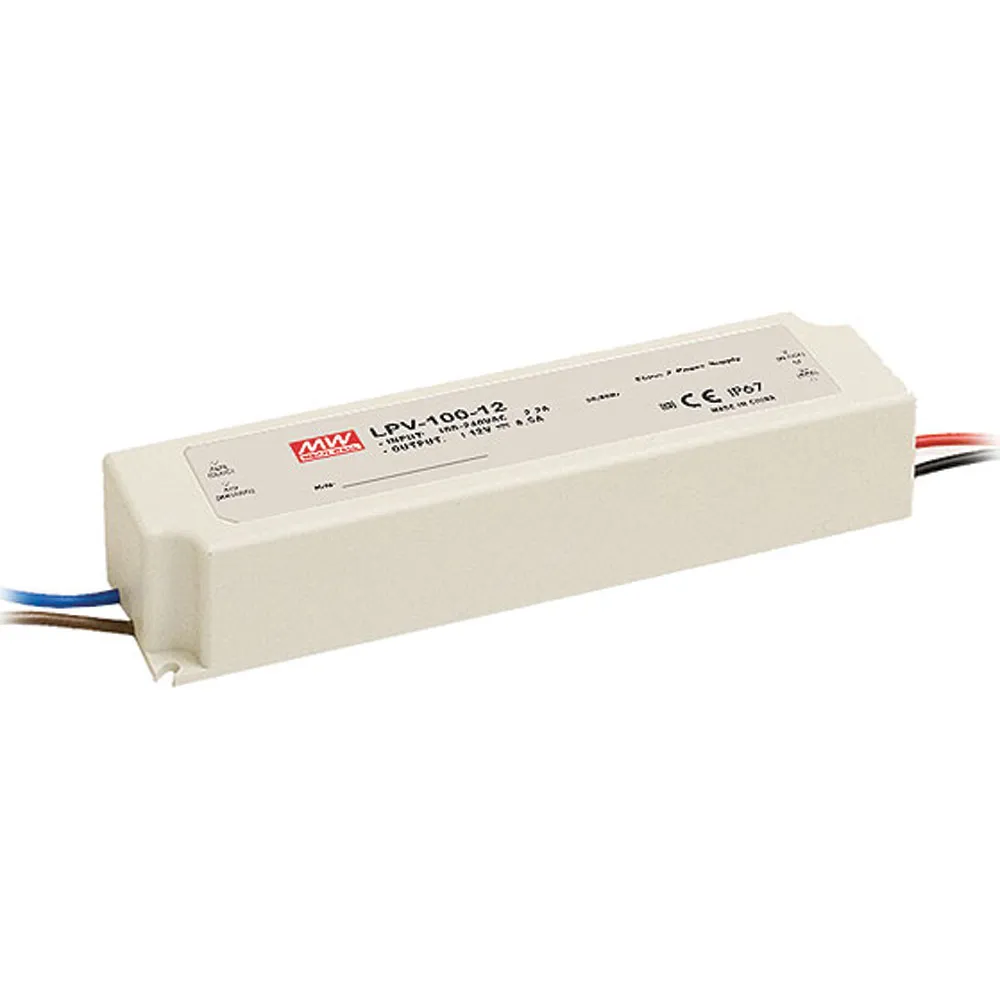

Enclosed Switching LED Driver Power Supply 12V 8.5A 102W

12 Volts @ 8.5 Amps

Features:

  • Universal AC input
  • Input Voltage: 90~264VAC @ 47~63Hz, or 127-370VDC
  • Constant Voltage design
  • Able to withstand 300VAC surge input for 5 seconds
  • Short-circuit / Overload / Over-voltage protection
  • 100% full load burn-in test
  • Ripple and Noise: 120mVp-p
  • Line Regulation: ±1.0%
  • Load Regulation: ±2.0%
  • Size: 7.48"L x 2.05"W x 1.46"H
  • Weight: 1.39 lbs.

Overview

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LPV-100

Compliance

Agency Approvals: CE, CUL, EAC, EN, UL

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.45 in.
Width:2.04 in.
Length:7.48 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Stripped and Tinned
Output Range:N/A
Output Current:8.50 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
IP Rating:IP67
Efficiency:85%
Power Rating:102 W
,
