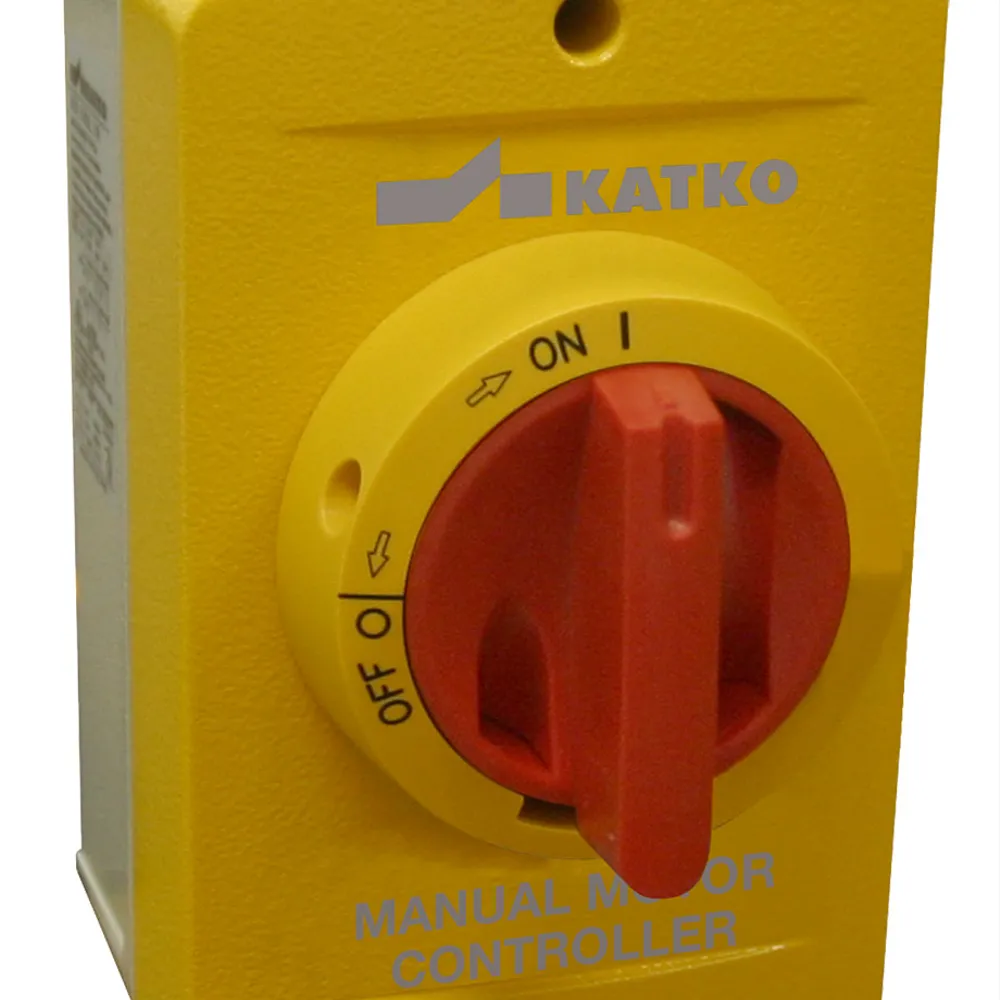

Enclosed Disconnect Switch 3 Pole 40A/600V Yellow/Red Handle A2 Enclosure

Features

• Color: Yellow/ Red Handle
• Environmenl Rating (UL): UL Type 4x
• Poles: 3
• Weight 3 Pole: 0.8 kg (1.76 lb.)
• General Purpose Current: 40 A
• Maximum Voltage: 600V AC
• Motor FLA @ 480V AC: 27 A
• Motor FLA @ 600V AC: 17A
• Horsepower Rating/HP: 110-120V AC - 1 Phase: 2
• Horsepower Rating/HP: 200V AC - 1 Phase: 3
• Horsepower Rating/HP: 208V AC - 1 Phase: 3
• Horsepower Rating/HP: 220-240V AC- 1 Phase: 5
• Horsepower Rating/HP: 110-120V AC - 3 Phase: 3
• Horsepower Rating/HP: 200V AC - 3 Phase: 7.5
• Horsepower Rating/HP: 208V AC - 3 Phase: 7.5
• Horsepower Rating/HP: 220-240V AC- 3 Phase: 7.5
• Horsepower Rating/HP: 265V AC - 3 Phase: 10
• Horsepower Rating/HP: 277V AC - 3 Phase: 10
• Horsepower Rating/HP: 380-415V AC - 3 Phase: 15
• Horsepower Rating/HP: 440-480V AC - 3 Phase: 20
• Horsepower Rating/HP: 550-600V AC - 3 Phase: 15
• Short Circuit Withstand Rating at 600 V with Max. Fuse Size/Class: 10 kA
• Fuse K5: 30 A
• Fuse RK5: 30 A
• Fuse RK1: 60 A
• Fuse J: 80 A
• Terminal Size Acceptability (Cu Conductors only, 75 °C): 14-8 AWG
• Terminal Torque: 16 lb. in. (1.8 Nm)
• Screw Head Type: No. 2 Pozidrive
• Enclosure Type: A2
• Suitable Accessories - Auxilary Contacts: KU1.V, KU2.V

Overview

Enclosed Disconnect Switch 3 Pole 40A/600V Yellow/Red Handle A2 Enclosure
