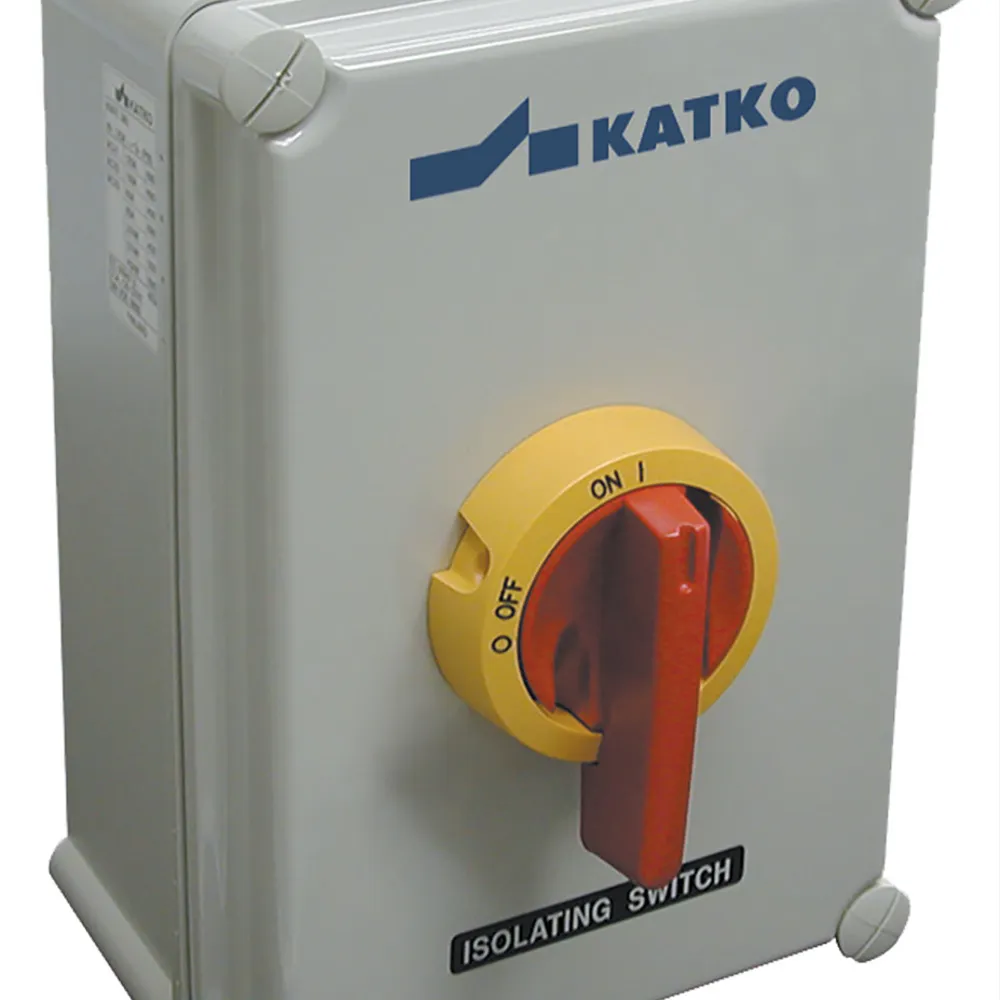

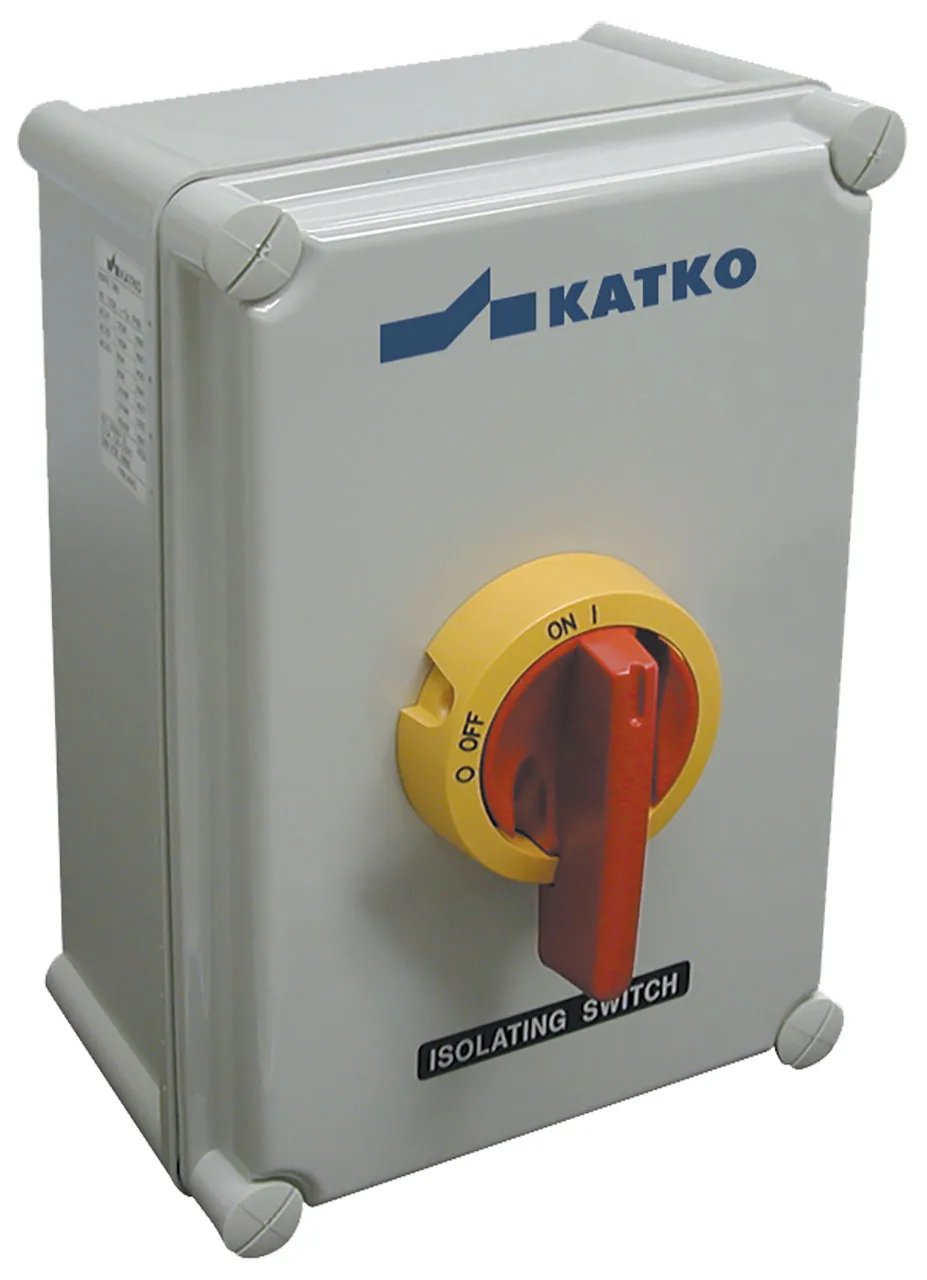

Enclosed Disconnect Switch 3 Pole 125A/600V Yellow/Red Handle

Features

• Color: Yellow/ Red Handle
• Environmenl Rating (UL): UL Type 4x
• Poles: 3
• Weight 3 Pole: 1.9051 kg (4.2 lb.)
• General Purpose Current: 125 A
• Maximum Voltage: 600V AC
• Motor FLA @ 600V AC: 68A
• Horsepower Rating/HP: 110-120V AC - 1 Phase: 5
• Horsepower Rating/HP: 200V AC - 1 Phase: 10
• Horsepower Rating/HP: 208V AC - 1 Phase: 10
• Horsepower Rating/HP: 220-240V AC- 1 Phase: 15
• Horsepower Rating/HP: 265V AC - 1 Phase: 15
• Horsepower Rating/HP: 277V AC - 1 Phase: 15
• Horsepower Rating/HP: 380-415V AC - 1 Phase: 20
• Horsepower Rating/HP: 440-480V AC - 1 Phase: 30
• Horsepower Rating/HP: 550-600V AC - 1 Phase: 30
• Horsepower Rating/HP: 110-120V AC - 3 Phase: 10
• Horsepower Rating/HP: 200V AC - 3 Phase: 20
• Horsepower Rating/HP: 208V AC - 3 Phase: 20
• Horsepower Rating/HP: 220-240V AC- 3 Phase: 25
• Horsepower Rating/HP: 265V AC - 3 Phase: 25
• Horsepower Rating/HP: 277V AC - 3 Phase: 30
• Horsepower Rating/HP: 380-415V AC - 3 Phase: 40
• Horsepower Rating/HP: 440-480V AC - 3 Phase: 50
• Horsepower Rating/HP: 550-600V AC - 3 Phase: 60
• Short Circuit Withstand Rating at 600 V with Max. Fuse Size/Class: 10 kA
• Fuse K5: 150 A
• Fuse RK5: 150 A
• Fuse J: 200 A
• Terminal Size Acceptability (Cu Conductors only, 75 °C): 8-1/0 AWG
• Terminal Torque: 50 lb. in. (5.6 Nm)
• Screw Head Type: 5 mm Allen Key
• Enclosure Type: MF10
• Suitable Accessories - Auxilary Contacts: VKA1.V, VKA2.V

Overview

Enclosed Disconnect Switch 3 Pole 125A/600V Yellow/Red Handle
