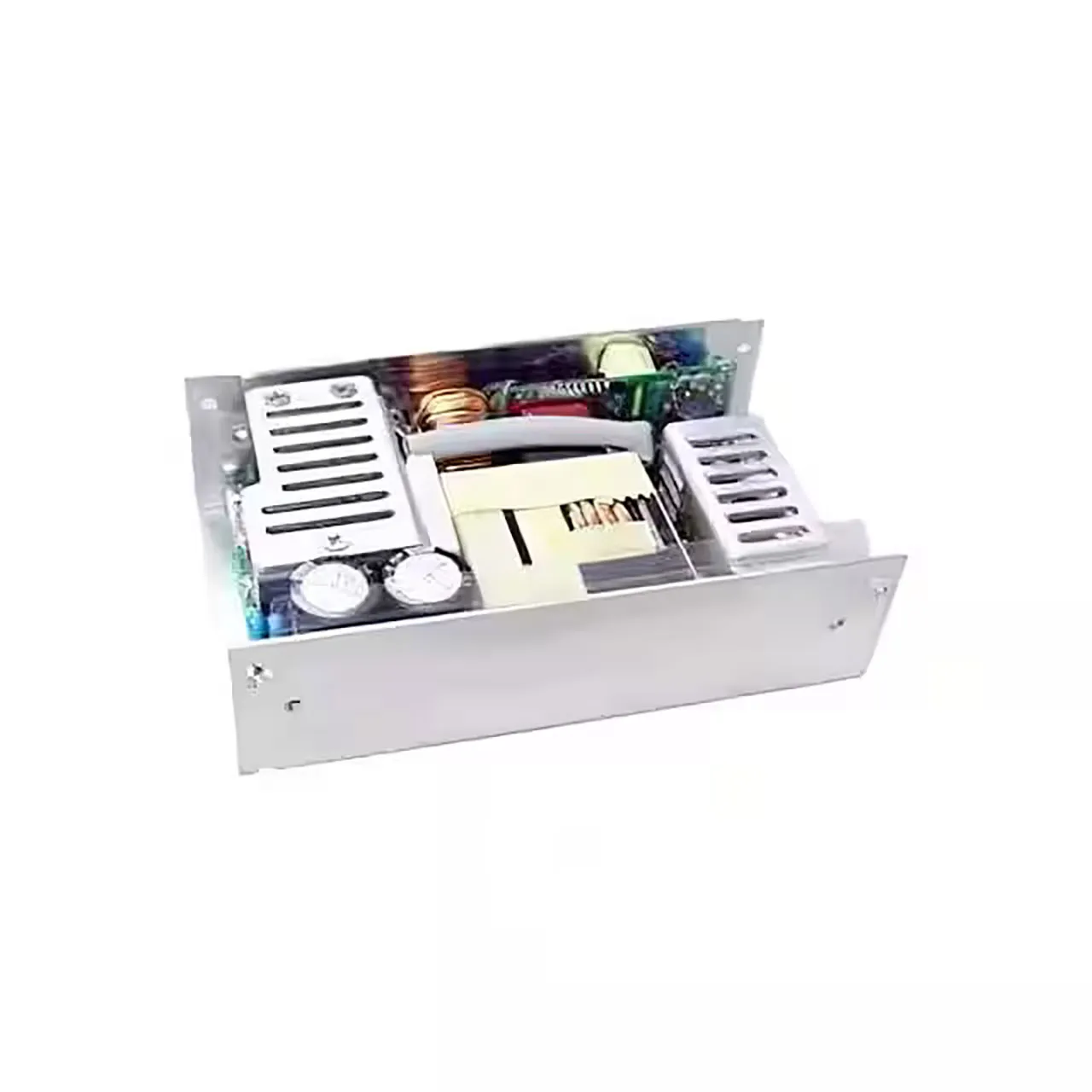

Enclosed AC-DC ITE and Medical Switching Power Supply 12 VDC 41.5 A 500 Watt

Features

  • Family: HDM500E
  • Output Voltage - Channel 1: 12 VDC
  • Output Current - Channel 1: 41.5 A
  • Number of Outputs: 1
  • Maximum Output Power (W): 500
  • Input Voltage: 90 VAC to 264 VAC
  • Input Frequency: 47 Hz to 63 Hz
  • Maximum Input Current: 6.3 A
  • Type: Switching
  • Industry: Commercial, Industrial, Medical
  • Isolation Voltage: 4000V
  • Style: Enclosed
  • Mounting Style: Chassis
  • Length (inch): 5.5
  • Width (inch): 3.25
  • Height (inch): 2.42
  • Agency Approvals: UL, CUL, CB, CE, EN, IEC
  • Efficiency (%): 89
  • Output Connector Type: Screw Terminal Block
  • AC Input Connector/Terminal: Alex: 9396-3, 96T series; JST: VHR-3N, SVH-41T-P1.1
  • Color: Silver
  • Product Type: AC to DC Power Supply for ITE and Medical Appl

,
