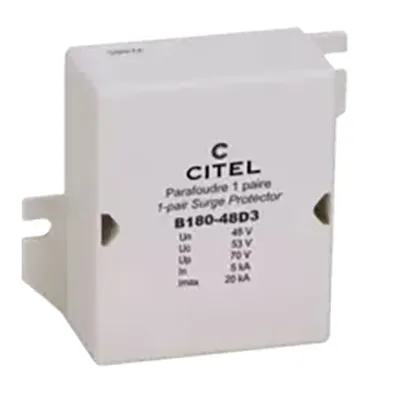

Enclosed 48V Dataline Surge Protection Device for POE and GB IP65 outdoor Single Line Hybrid GDT+Diode 20kA IMAX

This data surge suppression device (SPD) is designed for POE and GB IP65 outdoor data lines and offers common mode or differential mode protection. It is IP20 rated for indoor applications. It features Hybrid GDT and diode technology for surge current rating up to 20 kA IMAX. This SPD is mounted on a DIN rail.

Specifications

• Protection Mode: Common Mode, Differential Mode
• Data Speed (Mbps): 10/100
• Insertion Loss (@ Freq): <1 dB
• Impulse Current (Iimp): 2.5 kA
• Max Load Current (IL): 300 mA
• Line Current Max: 0.3 A
• Nominal Line Voltage: 48 V
• Maximum Line Voltage: 53 V
• Residual Voltage: 20 V
• Wires: 2W+Ground
• Ambient Temp: -50°C to +85°C
• MCOV (V): 60 / 72 / 72
• Surge Current (IMAX): 20 kA
• Nominal Discharge Current (IN): 5 kA (8/20us)
• End of Life: Short-circuit
• Technology
