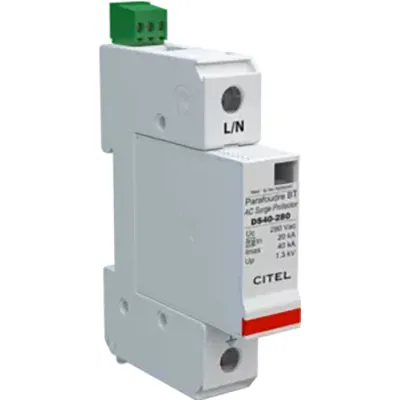

Enclosed 280V Dataline Surge Protection Device for 280VAC Single Phase MOV 20kA IMAX

This data surge suppression device (SPD) is designed for 280V DC Power Network data lines and offers common mode or differential mode protection. It is IP20 rated for indoor applications. It features MOV technology for surge current rating up to 20 kA IMAX. This SPD is mounted on a DIN rail.

Specifications

• Protection Mode: Common Mode, Differential Mode
• Data Speed (Mbps): N/A
• Insertion Loss (@ Freq): N/A
• Impulse Current (Iimp): N/A
• Max Load Current (IL): 20 A
• Line Current Max: N/A
• Nominal Line Voltage: 280 V
• Maximum Line Voltage: N/A
• Residual Voltage: N/A
• Wires: 2W+Ground
• Ambient Temp: -35°C to +60°C
• MCOV (V): - / - / 275 / -
• Surge Current (IMAX): N/A
• Nominal Discharge Current (IN): N/A
• End of Life: Short-circuit
• Technology: MOV
• Network Configuration: 2W+G (2 wire)
• Connection Method: Screw Terminal (8 to 12 AWG)
• Mounting: DIN Rail
• Material: Thermoplastic
• Flammability Rating: UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Certification: UL Listed
• UL Standard: UL497B
