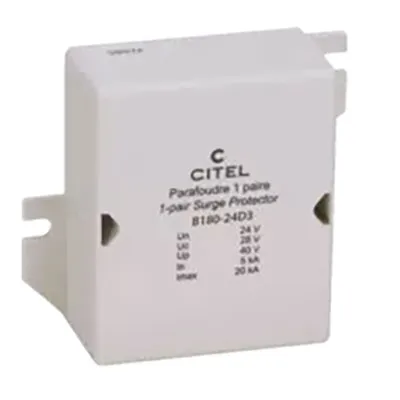

Enclosed 24V Dataline Surge Protection Device for Leased Line 4-20mA Hybrid GDT+Diode Single Line 20kA IMAX

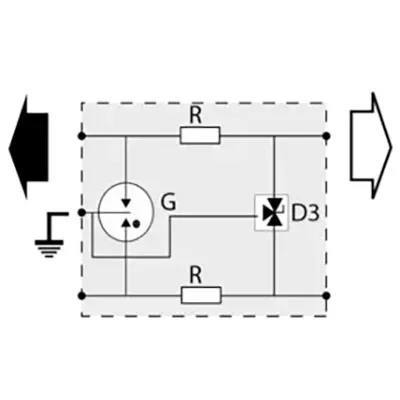

This surge suppression device (SPD) is designed for data lines and is compatible with all 10/100 Mbps configurations in either common mode or differential mode protection. It is IP20 rated for indoor applications. It features Hybrid GDT and diode technology for surge current rating up to 20 kA IMAX. This SPD is mounted on a DIN rail.

Specifications

• Protection Mode: Common Mode, Differential Mode
• Data Speed (Mbps): 10/100
• Insertion Loss (@ Freq): <1 dB
• Impulse Current (Iimp): 2.5 kA
• Max Load Current (IL): 300 mA
• Line Current Max: 0.3 A
• Nominal Line Voltage: 24 V
• Maximum Line Voltage: 28 V
• Residual Voltage: 40 V
• Wires: 2W+Ground
• Ambient Temp: -50°C to +85°C
• MCOV (V): 28 / 72 / 72
• Surge Current (IMAX): 20 kA
• Nominal Discharge Current (IN): 5 kA (8/20us)
• End of Life: Short-cir
