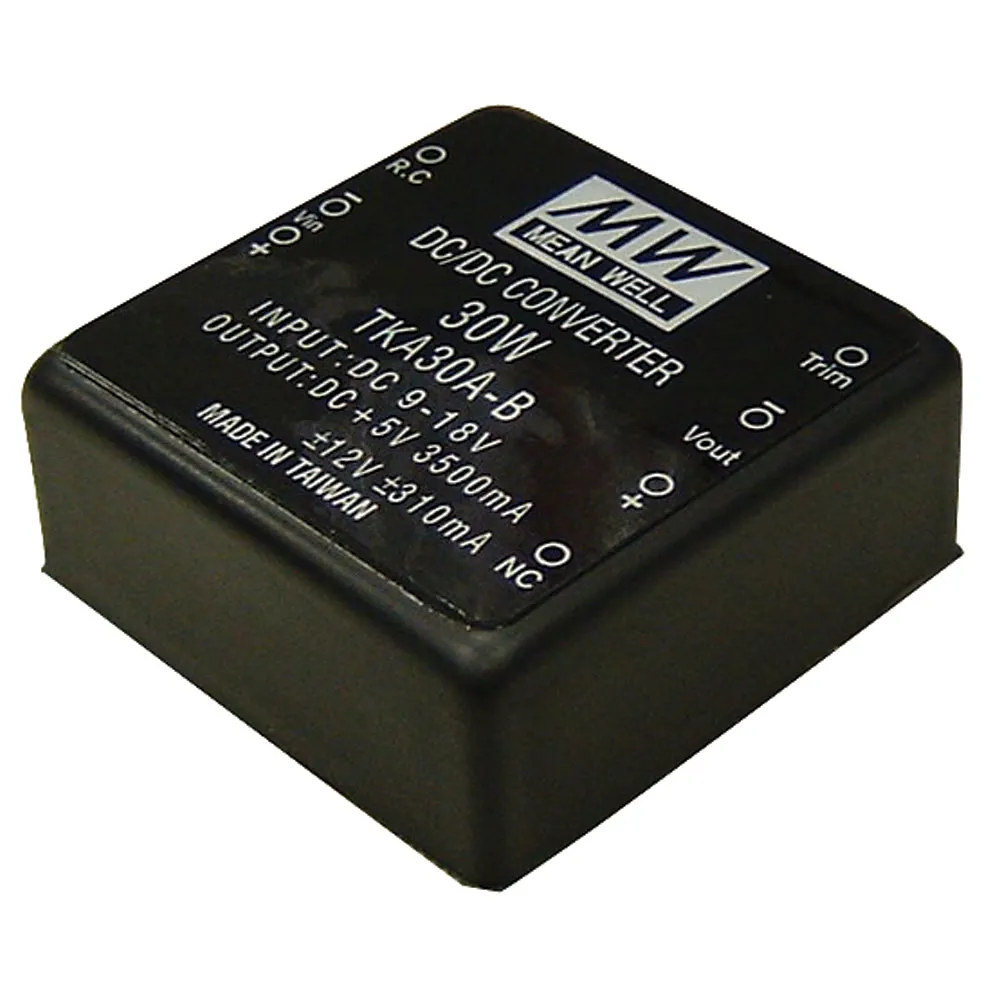

Isolated Encapsulated DC-to-DC Converter
TKA30 Series: Triple Output
The Mean Well TKA30 family of regulated 30-watt DC-to-DC converters include popular dual and triple-output configurations packaged in six-sided, shielded metal cases. Line and load regulation are both an outstanding 0.2%. Load regulation applies for a load change of 10% to full load for both dual and triple-outputs. The industry-standard package supports full power with free-air convection over the ambient temperature range of ?40°C to 71°C. Performance features include a wide input voltage range of 2:1 and the use of a pi-network input filter for low noise operation. The input-to-output isolation is an impressive 1000VDC, with I/O isolation resistance of 1000MOHM. Short-circuit and over-voltage protection is included. For ease of use, the TKA30 units require no external components and provide both voltage trim and remote ON/OFF capability.
- 1000VDC isolation
- Input filter: Pi-network
- Protection: short-circuit & overload
- 0.2% regulation
- 100% burn-in test
- Output trim
- Remote ON/OFF
- Shielded metal case
- Industry standard package
- 2:1 wide input range
- Free-air convction cooling
- One-year warranty
- Very high MTBF
- Working temperature: -40° to +71°C
- Input range: 18-36V
- Output voltage: +5V @ 3500mA; +15V@250mA; -15V@250mA
- Power: 25.0W
- Power density: 7.8W/in3
- Pins: 8
- Ripple & noise: 100mV p-p
- Line Reg.: 0.2%
- Load Reg.: 0.2%
- Switching frequency (Hz) min.: 100k
- Isolation voltage: 1000
- Temperature: -40° to +71°C
- Efficiency: 82%
- MTBF hours: 700,000
- Weight: 0.25 lbs.
