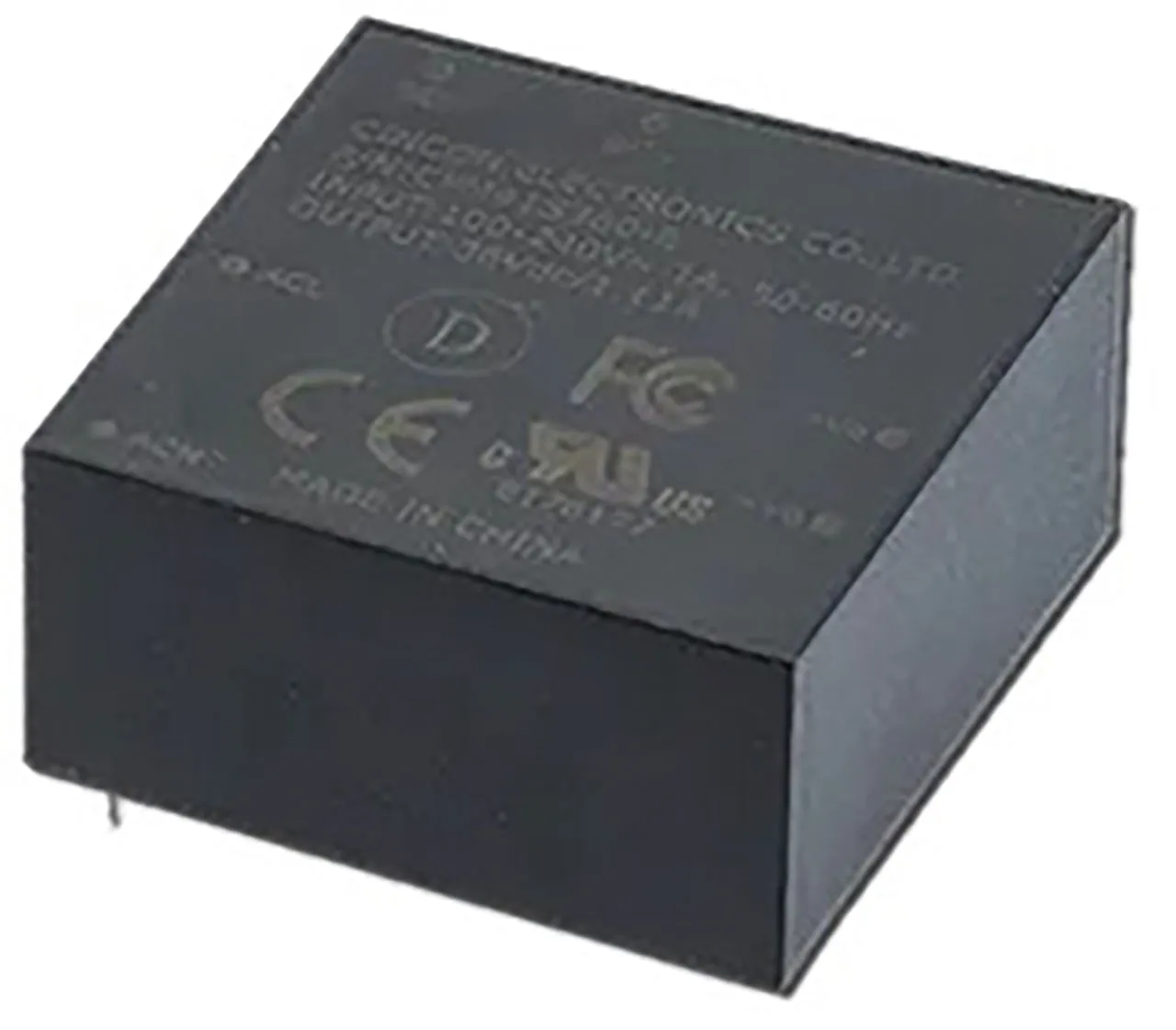

Encapsulated AC-DC Power Supply 40W 15V 2670mA PCB Mount Class 2
Product Identification
Additional Feature:Class 2
Product Type:Power Module SMPS
Manufacturer Series:CFM41S
Compliance
Agency Approvals: CE, CUL, EN, FCC, Nemko, UKCA, UL
Dimensions & Appearance
Style:Encapsulated
Color:Black
Height:1.04 in.
Width:2.14 in.
Length:2.14 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Frequency:50 Hz to 60 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1 A
Output
Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.67 A
Features
PFC Function:No
Minimum Isolation Voltage:3000VAC
Efficiency:90%
Power Rating:40 W
