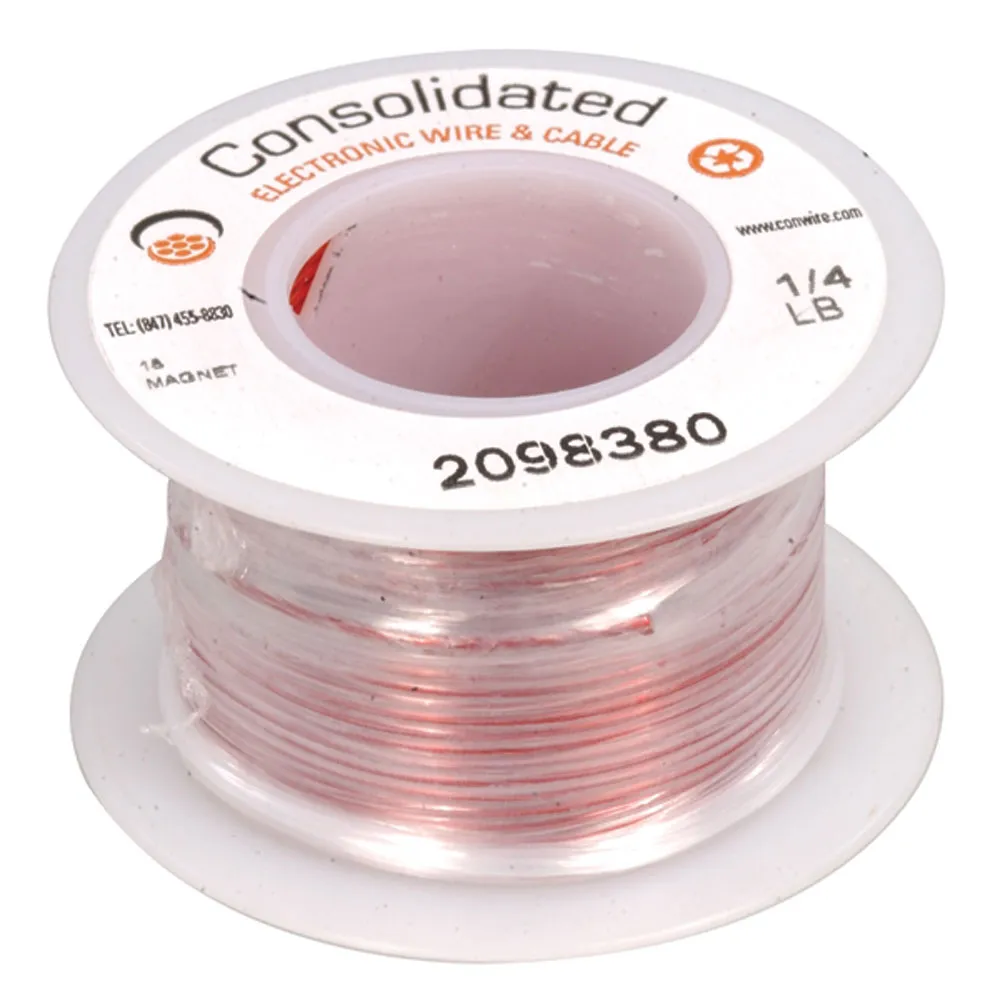

Enamel Magnet Wire 18 AWG When a magnetic field is required, turn to Jameco's wide selection of magnet wire. Used for many custom winding applications including: headphones, loudspeakers, coils, inductors, transformers, motors, ballasts, relays, and timers. Available in a variety of lengths, this sturdy wire is solid bare copper with nylon insulation.
Product Features:
- 1/4 pound
- 51 feet
- 18 AWG
- Solid bare copper conductor
- Polyurethane / Polyamide (Nylon)
- (PE) plain enamel magnet wire Nominal outside diameter (OD): 0.0418"
- Solderable @ 806°F (430°C)
- Temperature Range: -22 to 266°F (-30 to 130°C)
- Approvals: MIL JW-1177/9, MW 28-C, Class 130
Product Features:
- 1/4 pound
- 51 feet
- 18 AWG
- Solid bare copper conductor
- Polyurethane / Polyamide (Nylon)
- (PE) plain enamel magnet wire Nominal outside diameter (OD): 0.0418"
- Solderable @ 806°F (430°C)
- Temperature Range: -22 to 266°F (-30 to 130°C)
- Approvals: MIL JW-1177/9, MW 28-C, Class 130
Dimensions & Appearance
Color:Red Enamel
Length:51 ft.
Packaging
Package:Reel
Features
Number of Conductors:1
Outer Diameter:0.0418 in.
Insulation Material:Nylon
Conductor Strand:Solid
Wire Gauge (AWG):18
