Electronic Projects Kit with 50 Experiments for Circuit Lab

Features

• Number of experiments: 50
• Simple LED circuit
• Spinning LED light
• Function of the reed switch
• Demonstration of resistance and current
• Resistors in series connection
• Resistors in parallel connection
• Function of the touch plate
• A simple demonstration of a function of the PNP transistor
• A simple demonstration of a function of the NPN transistor
• Two LEDs in parallel connection
• Three LEDs in parallel connection
• LED and spinning LED with a single switch
• LED and spinning LED with separate switches
• Basic circuit operation of LED
• Spinning LED light in advance circuit operation of LEDs
• LEDs combination
• Function of a diode
• A simple demonstration of the light sensor
• A practical example: Light triggered LED
• A practical example: Darkness triggered LED
• Demonstration of a simple function of SCR
• A practical example of SCR
• Digital segment LED displaying "1"
• Digital segment LED displaying "2"
• Digital segment LED displaying "8"
• Digital segment LED displaying "F"
• Digital segment LED switching between "1" and "8"
• Digital segment LED switching between "I", "L", "F" and "E"
• Light control seven-segment LED display C
• Light control seven-segment LED display E
• Flashing LEDs
• Dog barking sound with flashing LED
• Dog barking sound and flashing digit "1"
• Rooster crowing sound and flashing digit "2"
• Cat meowing sound, flashing digit "3"
• Horse neighing sound, flashing digit "4"
• Bird chirping sound, flashing digit "5"
• Duck quacking sound, flashing digit "6"
• Sheep baaing sound, flashing digit "7"
• Cuckoo calling sound, flashing digit "8"
• Frog croaking sound, flashing digit "9"
• Manual control horse neighing sound with push switch control flashing digit "0"
• Magnet control sheep baaing sound with flashing LED
• Touch control rooster crowing sound with flashing LED
• Light control cat meowing sound with flashing LED
• Darkness activated dog barking sound
• Security alarm based on wiring disconnection
• Water level LED alarm
• Light intensity indicator
• Darkness activated spinning LED light
• Light control spinning LED light
• Recommended age: 8+
• Batteries included: 2x AA (1.5V alkaline)
• 12.76" x 9.06" x 1.97"

Overview

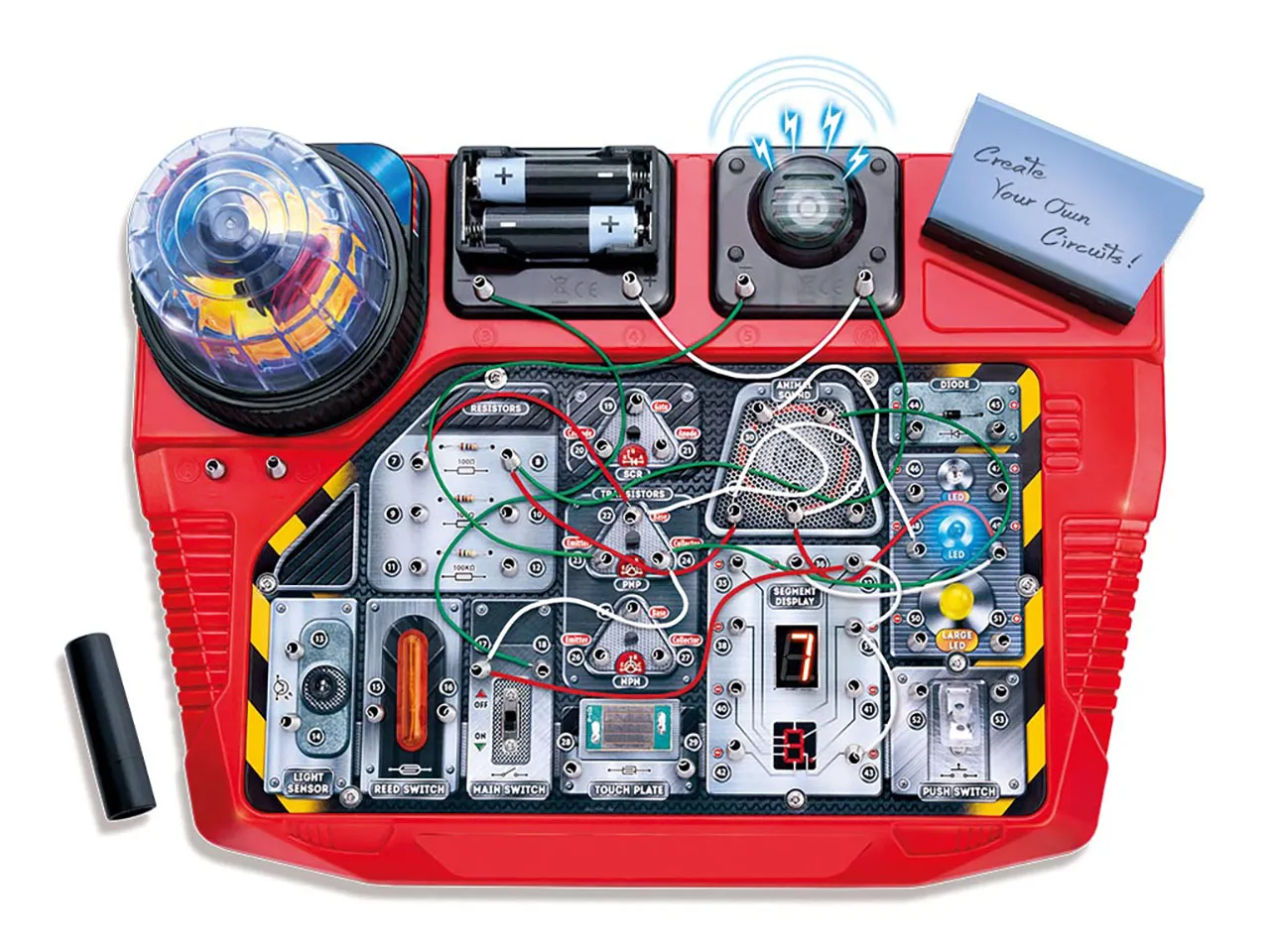

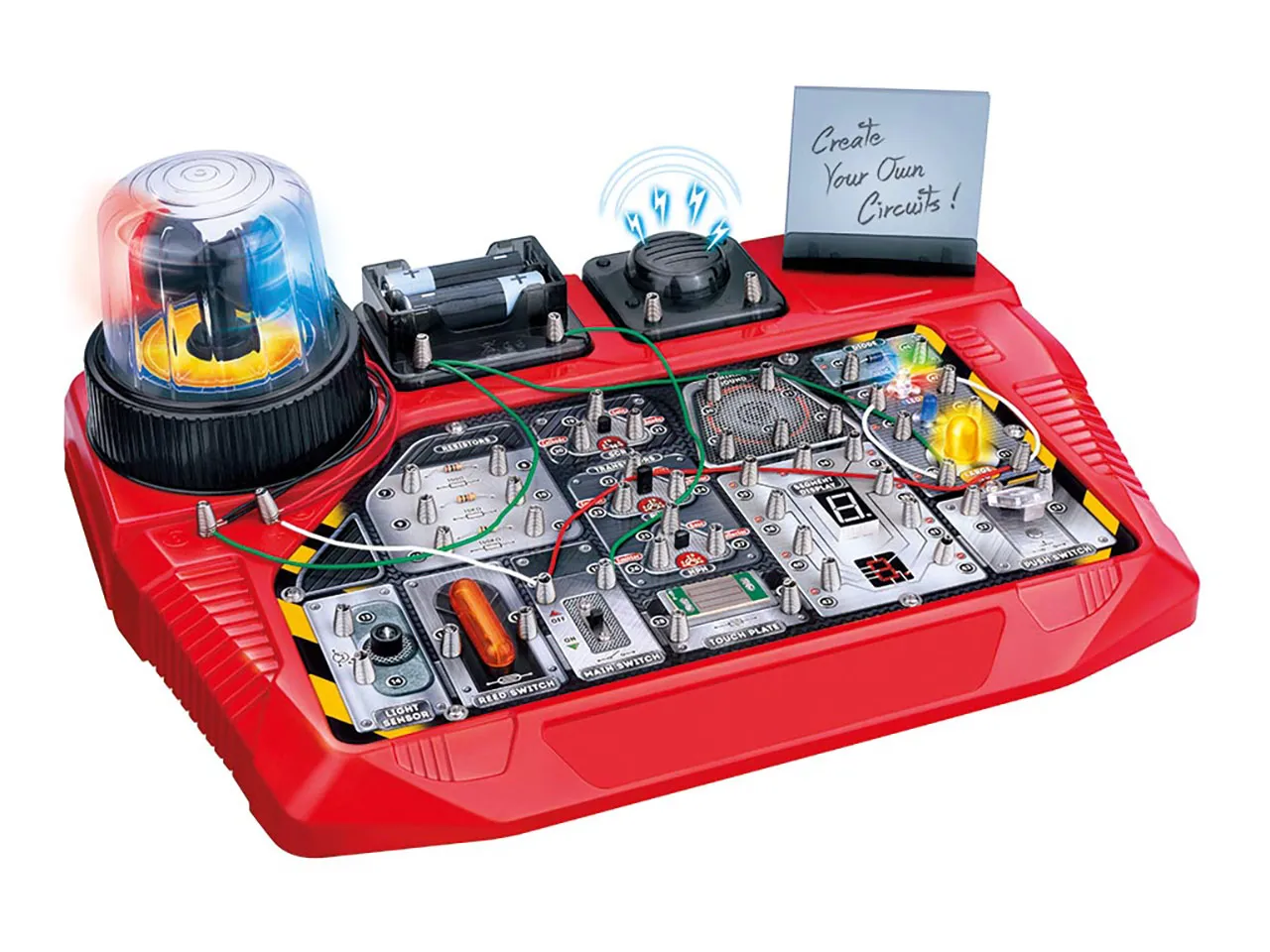

More than 50 experiments are included in this electrical circuit kit, which has been cleverly built such that the primary circuit board unit includes all necessary electronic components. All you need to do is connect the wires in accordance with each experiment's wiring order and proceed step-by-step. After being connected, the circuit will turn on and run. Recall that this is an ongoing experiment. The more time you invest in creating experiments, the more understanding you will acquire. For a few years to come, you will continue to find fresh and fascinating experiments, so you won't get bored and will always be fully interested.

What's Included

• Circuit Board Unit x 1pc
• Magnetic pole x 1pc
• Connecting wire 10cm x 8pcs, 20cm x 5pcs, 30cm x 5pcs
• Instruction Manual x 1pc
• Memo holder base x 1pc
• Memo holder board x 1pc
• Alarm base x 1pc
• Axis x 1pc
• LED Light x1pc
• Alarm body (halved) x 2pcs
• Red & Blue cover x 2pcs
• Gearx 1pc
• Motor with a worm x1pc
• Alarm base cover x1pc
• Transparent cover x1pc
• Sticker x 1pc
• Connecting joint x 5pcs (1spare)
• Spring x 2pcs
