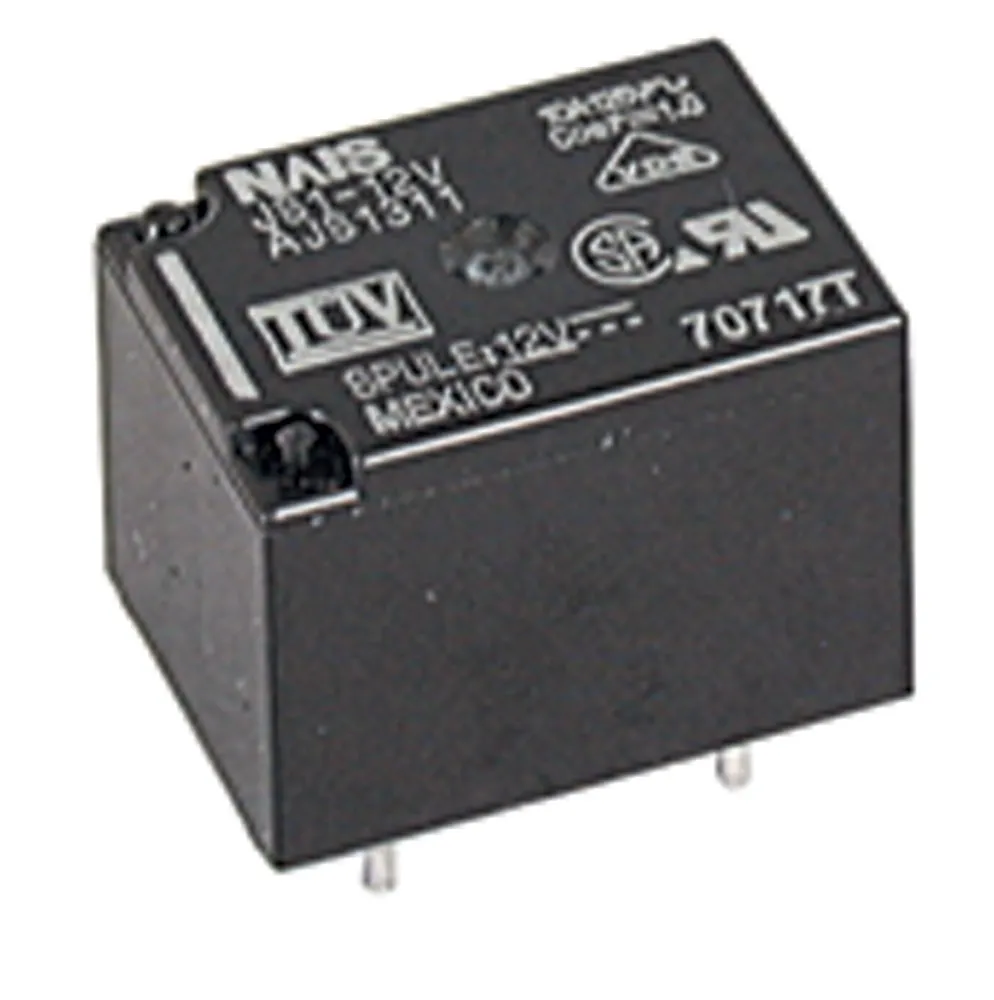

Small PC Mount Relay

Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.

Features:

  • Contact form: SPDT
  • Coil voltage: 12VDC
  • Coil resistance: 400Ω
  • Contact voltage: 125VAC/24VDC
  • Contact current: 10A/5A
  • Size: 0.85"L x 0.62"W x 0.63"H
  • 5-pin package
  • Mechanical life: 10 million operations
  • Electrical life: 100,000 operations
  • Dielectric strength: 1500Vrms (between contact and coil)
  • Potter and Brumfield Cross Reference: T72M5D121-12

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Height:0.63 in.
Width:0.62 in.
Length:0.85 in.

Features

Coil Voltage:12 VDC
Coil Current:30 mA
Contact Form:SPDT
Coil Resistance:400 Ohm
Termination:5-Pin
Current Rating:10 A
,
