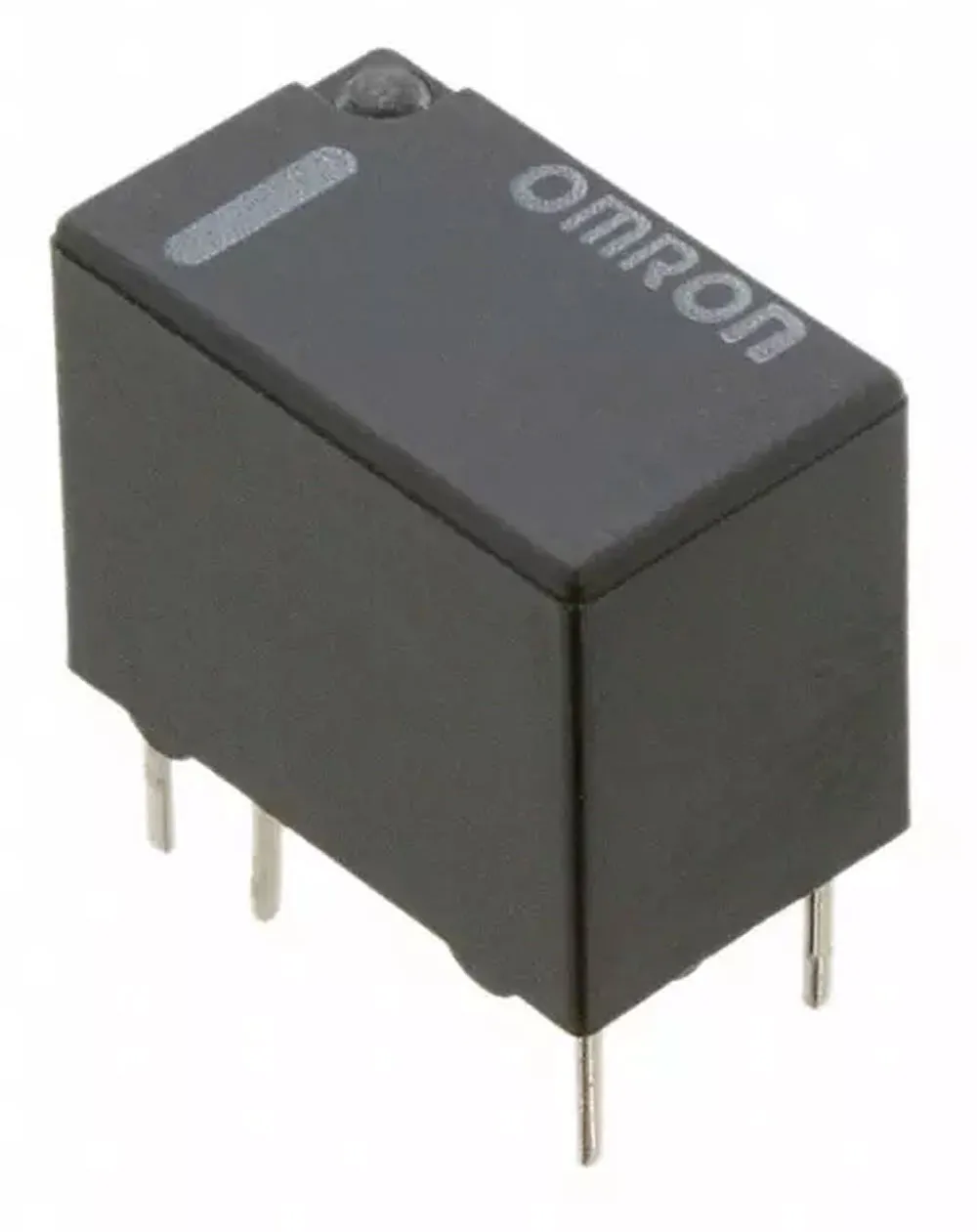

Small PC Mount Relay

Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.

Features:

  • Contact form: SPDT
  • Coil voltage: 12VDC
  • Coil resistance: 960Ω
  • Contact voltage: 125VAC/24VDC
  • Contact current: 0.5A/1A
  • Size: 0.50"L x 0.30"W x 0.40"H
  • 6-pin package
  • Mechanical life: 10 million operations
  • Electrical life: 100,000 operations
  • Dielectric strength: 1500Vrms (between contact and coil)

    • Product Identification

    Family:G5V-1

    Dimensions & Appearance

    Height:10 mm
    Length:12.5 mm
    Width:7.5 mm

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Features

    Pins:6
    Minimum Dropout Voltage:1.2 VDC
    Coil Voltage:12 VDC
    Relay Construction:Non-Latching
    Contact Current:0.5 A, 1 A
    Maximum Pick-Up Voltage:9.6 VDC
    Operate Time:5 ms
    Contact Voltage:125 VAC, 24 VDC
    Contact Form:SPDT
    Coil Resistance:960 Ohm
    ,
