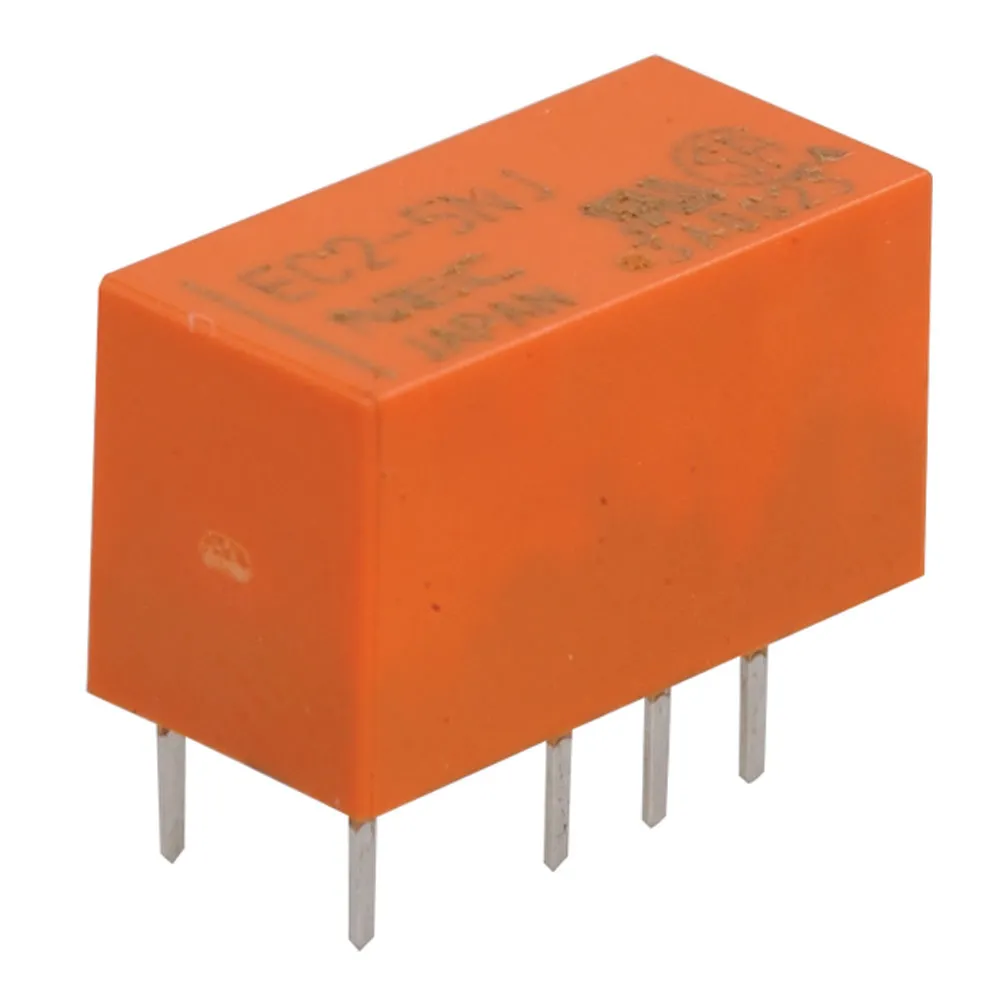

Miniature Signal Relay

The EC2 series relay has reduced mounting space but sustains the high-performance of NEC EA2 series relays. Furthermore, it complies with 2500 volt surge-voltage requirement of Bellcore specifications.

Features:

• DPDT, 5VDC, 2A, 178ohm
• Compact and light weight
• 2 form c contact arrangement
• Low power consumption
• Reduced mounting space: 15mm x 7.5mm
• High-breakdown voltage of coil to contacts:
  • 1500 VAC, 2500 V (rise time: 2µs, fall time: 10µs)
• Capable of High-power switching:
  • 700 VAC, 4.2 A, 4 times in case of accident
• UL recognized (E73266), CAS certified (LR46266)

Applications:

• Electronic switching systems, PBX, terminal equipment, and telephone systems.
