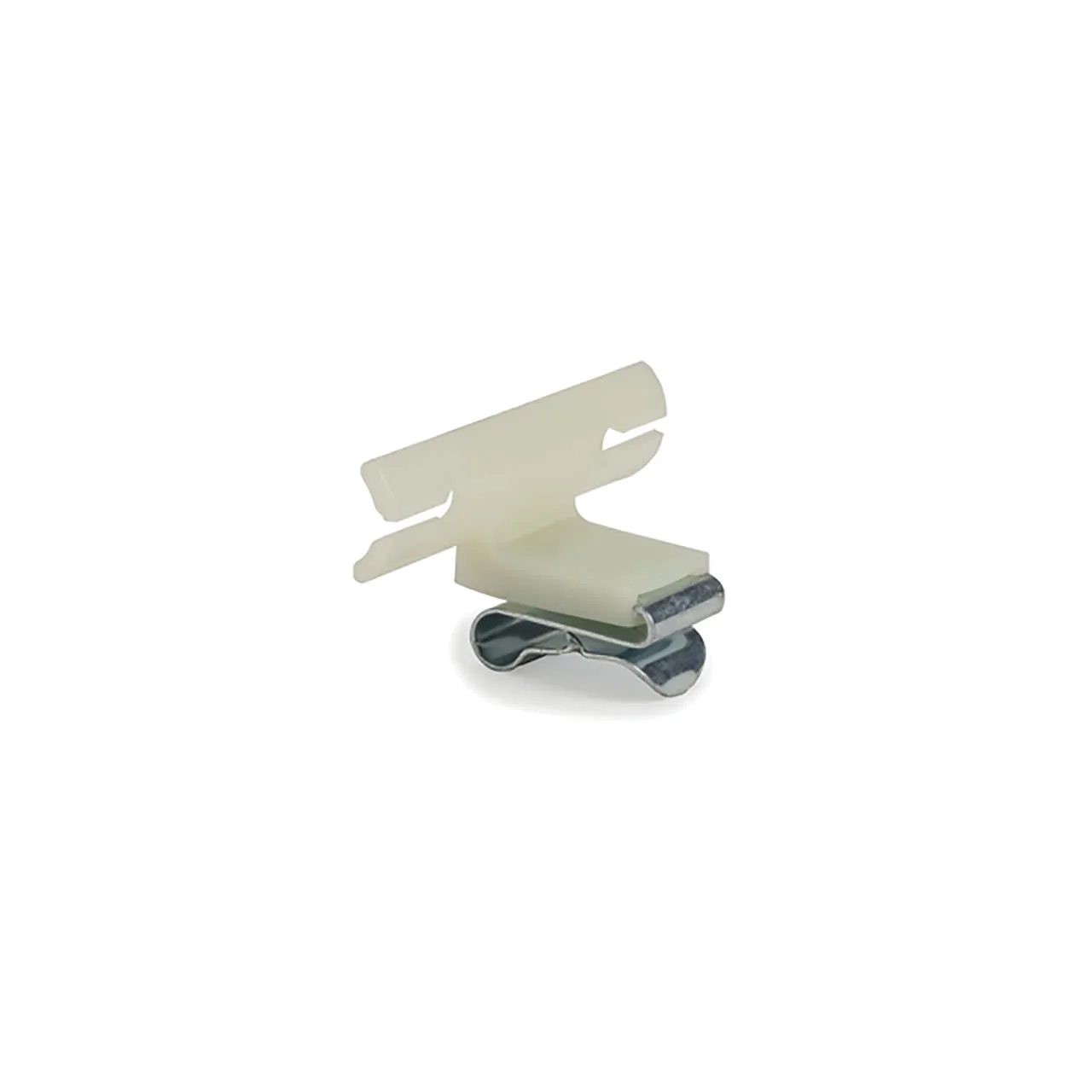

Edge Clip and Tape Clip, Panel Thickness 0.03 - 0.08", 1.43" Long, PA66HIRHS, Cream, 4000/ctn

Features

• The different fastening orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters
• Product Type: Edge Clips

Technical Specifications

• Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS);Metal (MET)
• Color: Cream (CM)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 0.31"
• Bundle Diameter Max. (Metric): 7.8 mm
• Bundling Bar Length (metric): 36.25 mm
• Diameter D (Imperial): 0.16"
• Diameter D (Metric): 4.0 mm
• Fixation Method: Edge Clip
• Height H (Imperial): 0.3"
• Height H (Metric): 7.5 mm
• Length L (Imperial): 0.59"
• Length L (Metric): 15.1 mm
• Length L2 (Imperial): 1.43"
• Length L2 (Metric): 36.2 mm
• Offset Length (Imperial): 0.36"
• Offset Length (Metric): 9.2 mm
• Panel Thickness (Imperial): 0.03 - 0.08"
• Panel Thickness (Metric): 0.8 - 2.0 mm
• Panel Thickness Max. (Imperial): 0.08"
• Panel Thickness Max. (Metric): 2.0 mm
• Panel Thickness Min. (Imperial): 0.03"
• Panel Thickness Min. (Metric): 0.8 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.39"
• Width W (Metric): 9.9 mm
• Width W2 (Imperial): 0.59"
• Width W2 (Metric): 15.1 mm
• CE Certified: No
• CSA Certified: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306414841

Overview

HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
