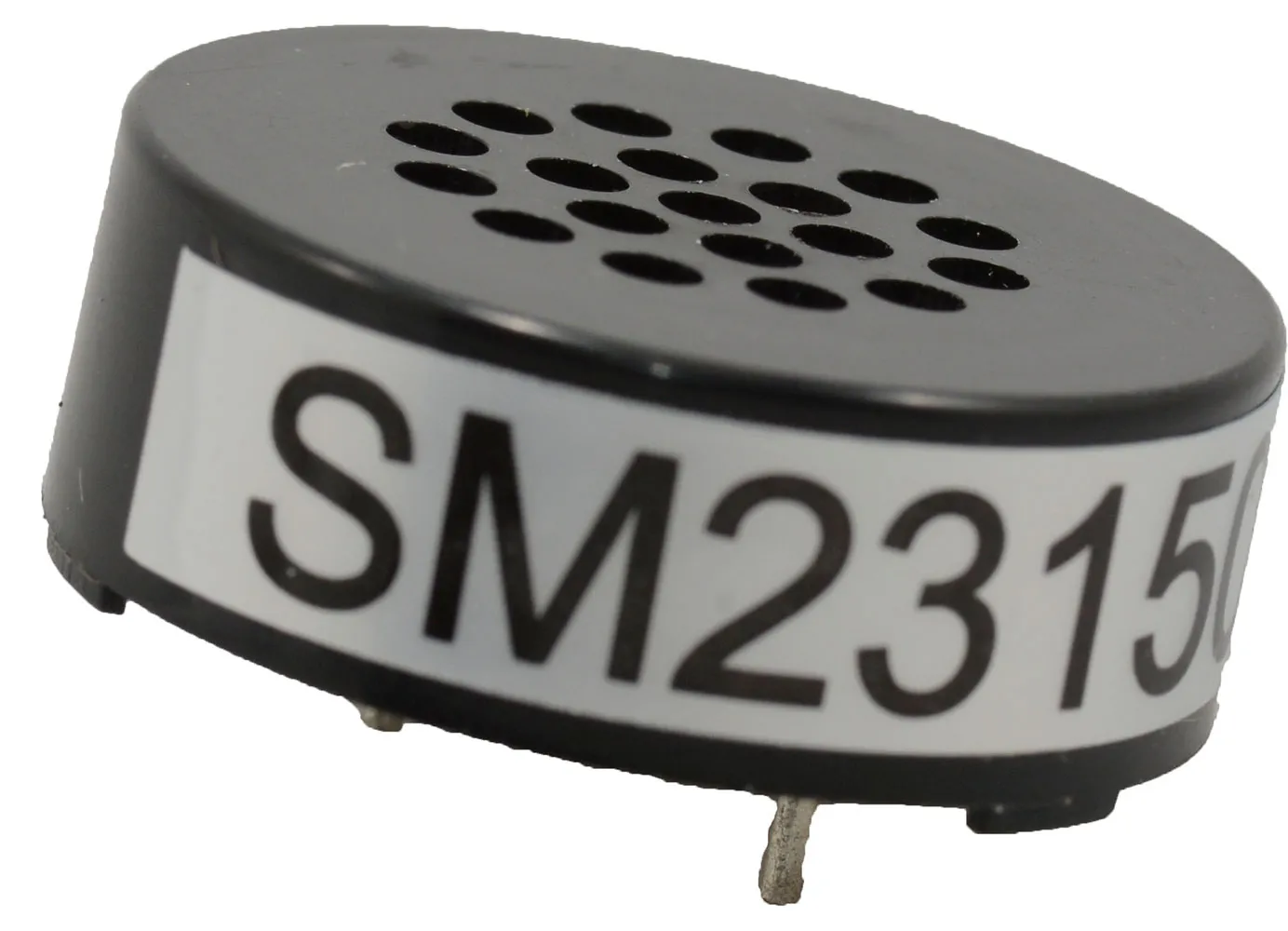

Dynamic Speaker 8 Ohm 1500 Hz 300mW Nominal 75dB

Specifications

  • Dimensions: 22.8 mm diameter x 8.7 mm thick (0.898" x 0.343")
  • Input power: 0.3 W (nom.) / 0.4 W (max.)
  • Cone: Mylar
  • Impedance: 8 ohms
  • Output: 75 dB
  • Frequency range: 1,500 - 4,000 Hz
  • PC mount, 10 mm pitch
  • Through hole mount

Dimensions & Appearance

Depth:0.343 in.
Diameter:0.898 in.
Width:0.343 in.
Length:0.898 in.

Input

Nominal Input Power (W):0.30
Input Power (max) (W):0.40

Output

Output:75 dB

Features

Impedance:8 Ohm
Magnet Size (Diameter x H) (inches):n/a
Termination Style:Thru Hole
Frequency Range:1500 Hz to 4000 Hz
,
