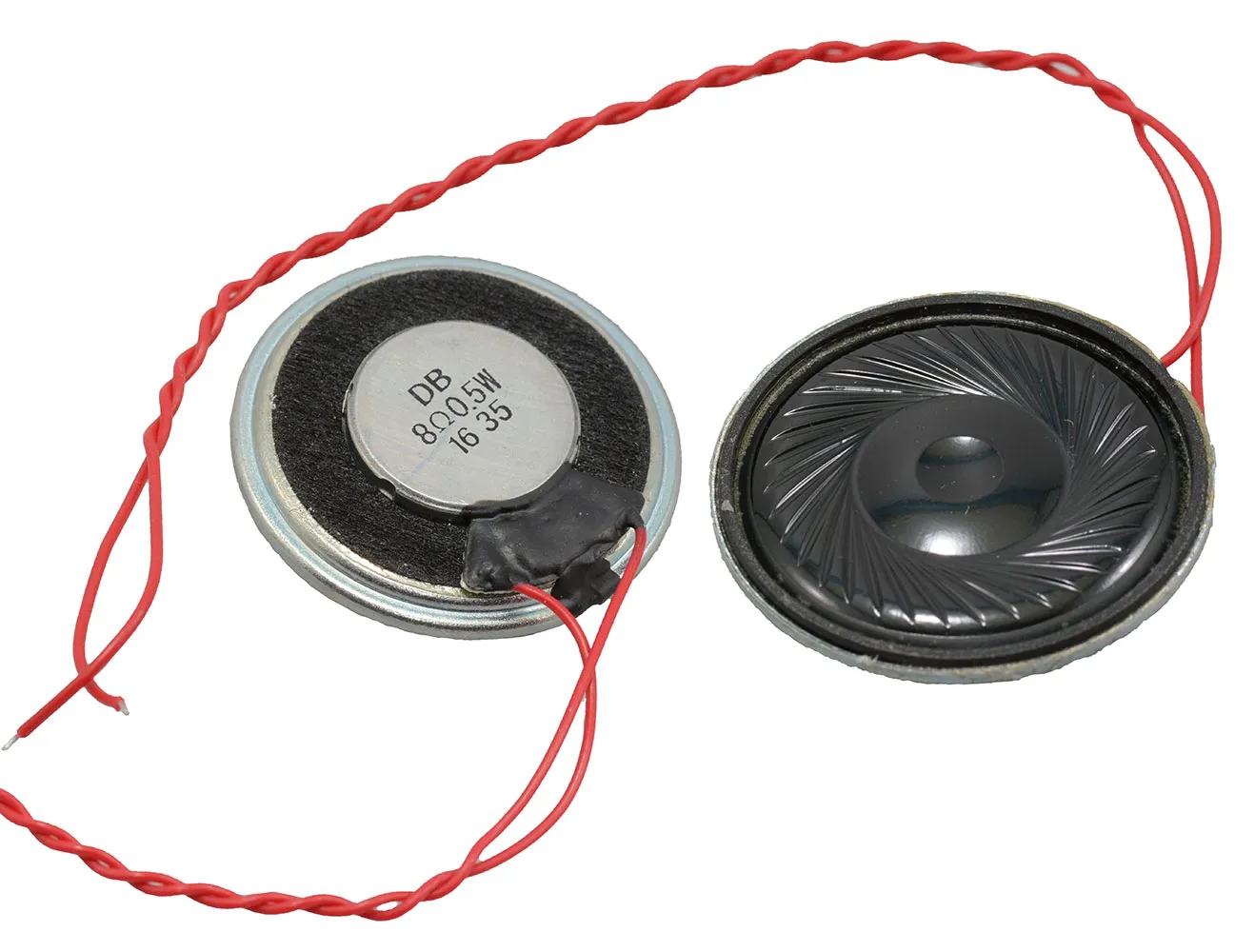

Dynamic Flat Speaker 8 Ohm 280 Hz 200mW Nominal 94dB

Specifications

  • Dimensions: 32 mm diameter x 5.1 mm thick (1.260" x 0.201")
  • Input power: 0.5 W (nom.) / 0.8 W (max.)
  • Cone: Mylar
  • Element size: 16mm diameter x 1.8mm thick
  • Impedance: 8 ohms
  • Output: 94 dB
  • Frequency range: 280 - 20,000 Hz
  • Wire leads, 140mm
  • Flush mount

Dimensions & Appearance

Depth:0.2 in.
Diameter:1.26 in.

Input

Input Power (max) (W):0.8
Nominal Input Power (W):0.5

Output

Output:94 dB

Features

Impedance:8 Ohm
Magnet Size (Diameter x H) (inches):0.63 x 0.71
Frequency Range:280 Hz to 20000 Hz
,
