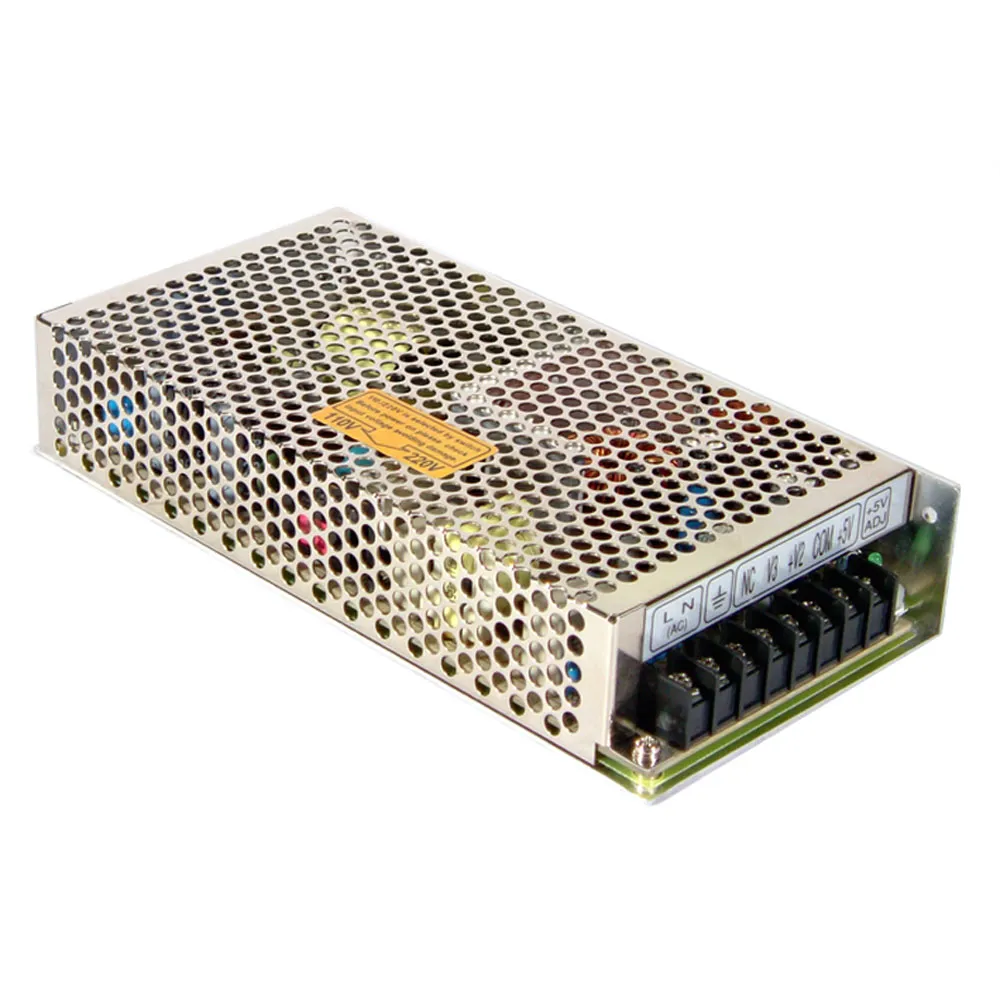

133.2W AC/DC Enclosed Switching Power Supply Dual Channel Output

12 Volts @ 3.7 Amps (Channel 1)
24 Volts @ 3.7 Amps (Channel 2)

Specifications

  • Size (L x W x H) (inches): 7.8 x 3.9 x 1.5
  • Ripple and Noise (mV p-p): 120
  • Load Regulation: 1.0%
  • Line Regulation: 0.5%
  • Input: 88-264VAC @ 47-63Hz
  • 5G Vibration
  • Able to withstand 300VAC surge input for 5 seconds
  • Short-circuit/overload/overvoltage protection
  • 3-year warranty
  • Certifications: UL/CUL/TUV/CE/CB


Discounted/Unboxed option: Some units were bulk packaged in a case and don't have individual unit box/carton, see P/N: 2290503. These are available for a limited time at a discounted price while supplies last.

Product Identification

Type:Switch Selectable SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RD-125

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:3 A

Output

Number of Outputs:2
Output Voltage (Channel 2):24 VDC
Output Current (Channel 2):3.7 A
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):24
Output Current (Channel 1):3.7 A
Output Current:3.70 A

Features

Minimum Isolation Voltage:3000V
Efficiency:85%
Power Rating:133.2 W
,
