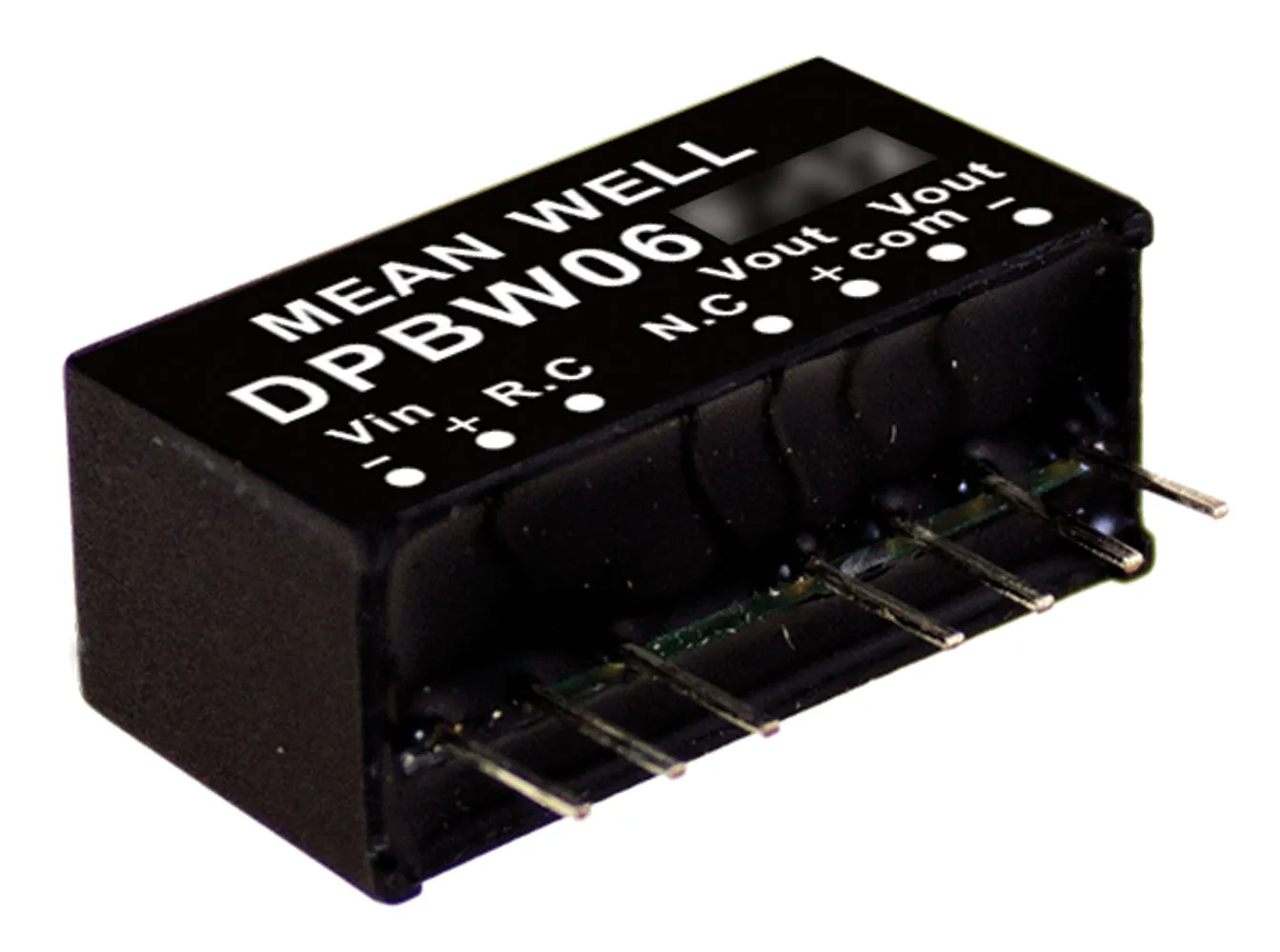

Dual Output 6W ±5V ±0.6A SIP-8 Isolated Regulated DC-DC Converter 24Vin

Output: +/-5 Volts @ +/-600 milliamps

Features

  • SIP8 package with industry standard pinout
  • 4:1 ultra-wide input range
  • Input voltage range: 9V to 36V
  • Line regulation: ±0.5%
  • Load regulation: ±1%
  • Operating temperature range: -40°C to +85°C
  • No minimum load required
  • Complies with EN55032 radiated Class A without additional components
  • High efficiency up to: 86%
  • Protections: Short circuit (continuous), overload
  • 1.5KVDC I/O isolation
  • Remote ON/OFF control
  • 3 year warranty

Applications

  • Telecom and Datacom systems
  • Wireless networks
  • Industrial control facilities
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Type:Isolated
Manufacturer Series:DPBW06
Product Type:DC-DC Regulated Dual Output SMPS

Dimensions & Appearance

Height:0.44 in.
Width:0.36 in.
Length:0.86 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:0.298 A

Output

Number of Outputs:2
Additional Output Voltages (VDC):-5 VDC
Output Connector Type:SIP-8
Output Voltage:5 VDC
Output Current:0.60 A

Features

Pins:8
Efficiency:86%
Power Rating:6 W
,
