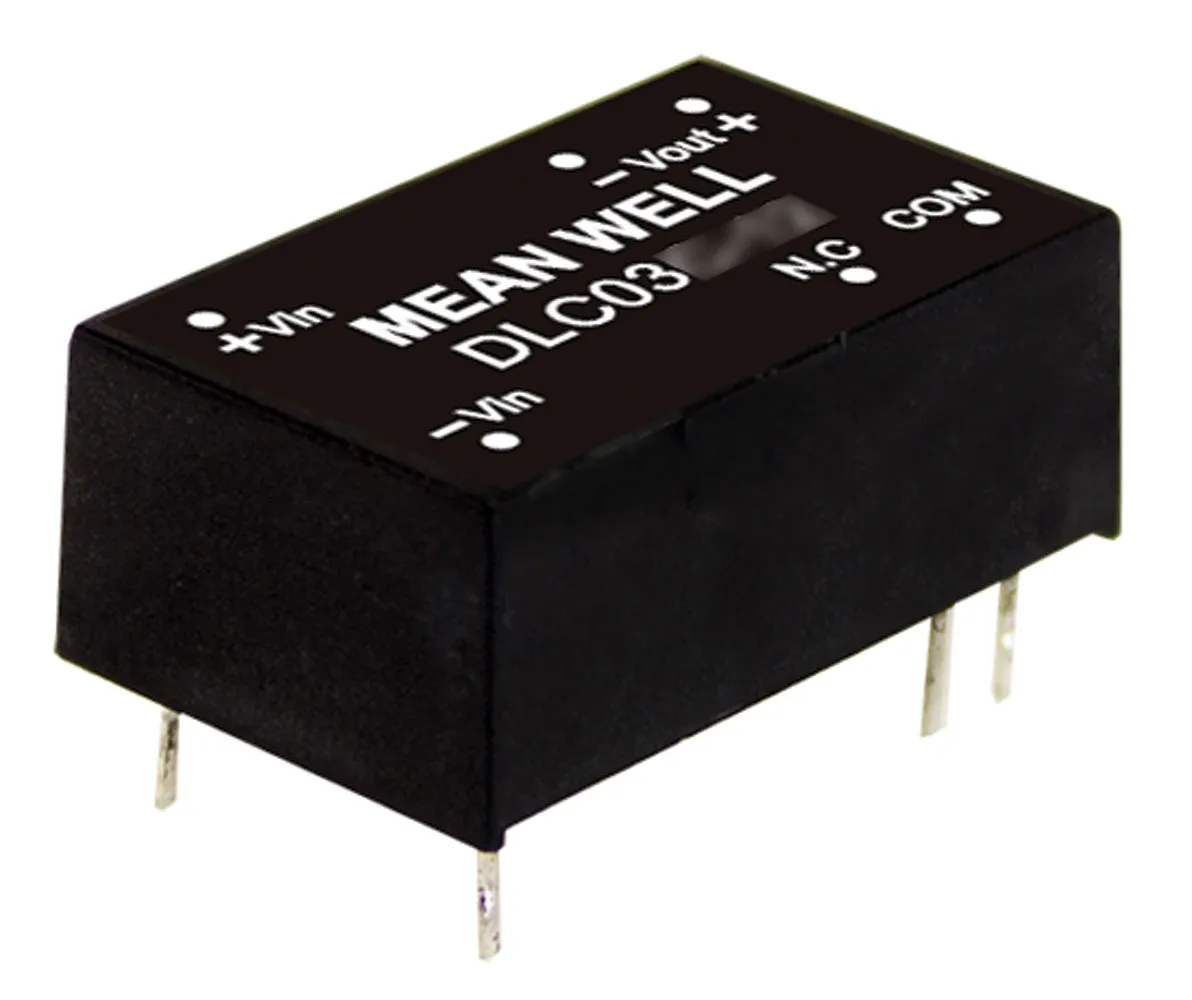

Dual Output 3W ±15V ±0.1A DIP-16 Isolated DC-DC Regulated Converter 12Vin

Output: +/-15 Volts @ +/-0.1 Amps

Features

  • DIP16 package with industry standard pinout
  • 2:1 wide input range
  • Input voltage range: 9V to 18V
  • Line regulation: ±0.2%
  • Load regulation: ±0.5%
  • Operating temperature range: -40°C to +85°C
  • No minimum load required
  • Complies with EN55032 radiated Class B without additional components
  • High efficiency up to: 81%
  • Protections: Short circuit (continuous), overload, input under voltage
  • 1.5KVDC I/O isolation
  • 3 year warranty

Applications

  • Telecom and Datacom systems
  • Wireless networks
  • Industrial control facilities
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Type:Isolated
Manufacturer Series:DLC03
Product Type:DC-DC Regulated Dual Output SMPS

Dimensions & Appearance

Height:0.34 in.
Width:0.54 in.
Length:0.87 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:9 VDC to 18 VDC
Input Voltage:12 VDC
Maximum Input Current:0.313 A

Output

Number of Outputs:2
Output Connector Type:DIP-16
Output Current:0.10 A
Additional Output Voltages (VDC):-15 VDC
Output Voltage:15 VDC

Features

Pins:6
Efficiency:81%
Power Rating:3 W
,
