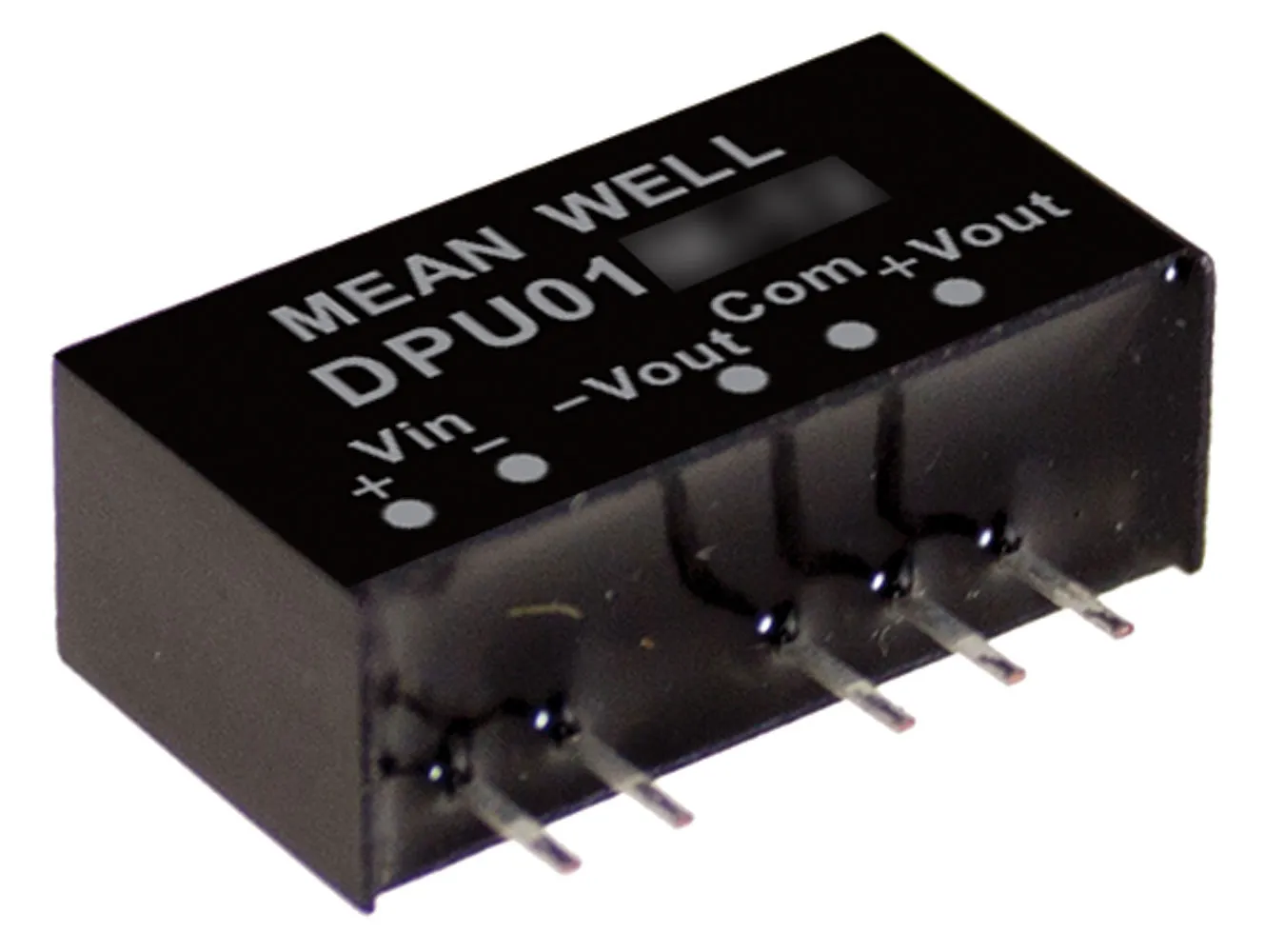

Dual Output 1W ±15V ±0.033A SIP-6 Isolated Unregulated DC-DC Converter 5Vin

Output: +/-15 Volts @ +/-33 milliamps

Features

  • SIP6 package with industry standard pinout
  • Input voltage range: 4.5V to 5.5V
  • Line regulation: 1.2% for 1% input variation
  • Load regulation: 10%
  • Operating temperature range: -40°C to +90°C
  • Complies with EN55032 radiated Class A without additional components
  • High efficiency up to: 75%
  • Protections: Short circuit
  • 1.5KVDC I/O isolation
  • Low cost
  • 3 year warranty

Applications

  • Telecom and Datacom systems
  • Wireless networks
  • Industrial control facilities
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Type:Isolated
Manufacturer Series:DPU01
Product Type:DC-DC Unregulated Dual Output SMPS

Dimensions & Appearance

Height:0.40 in.
Width:0.24 in.
Length:0.77 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Voltage Range:4.5 VDC to 5.5 VDC
Input Voltage:5 VDC
Maximum Input Current:0.27 A

Output

Number of Outputs:2
Output Current:0.033 A
Output Connector Type:SIP-6
Additional Output Voltages (VDC):-15 VDC
Output Voltage:15 VDC

Features

Pins:6
Efficiency:75%
Power Rating:1 W
,
