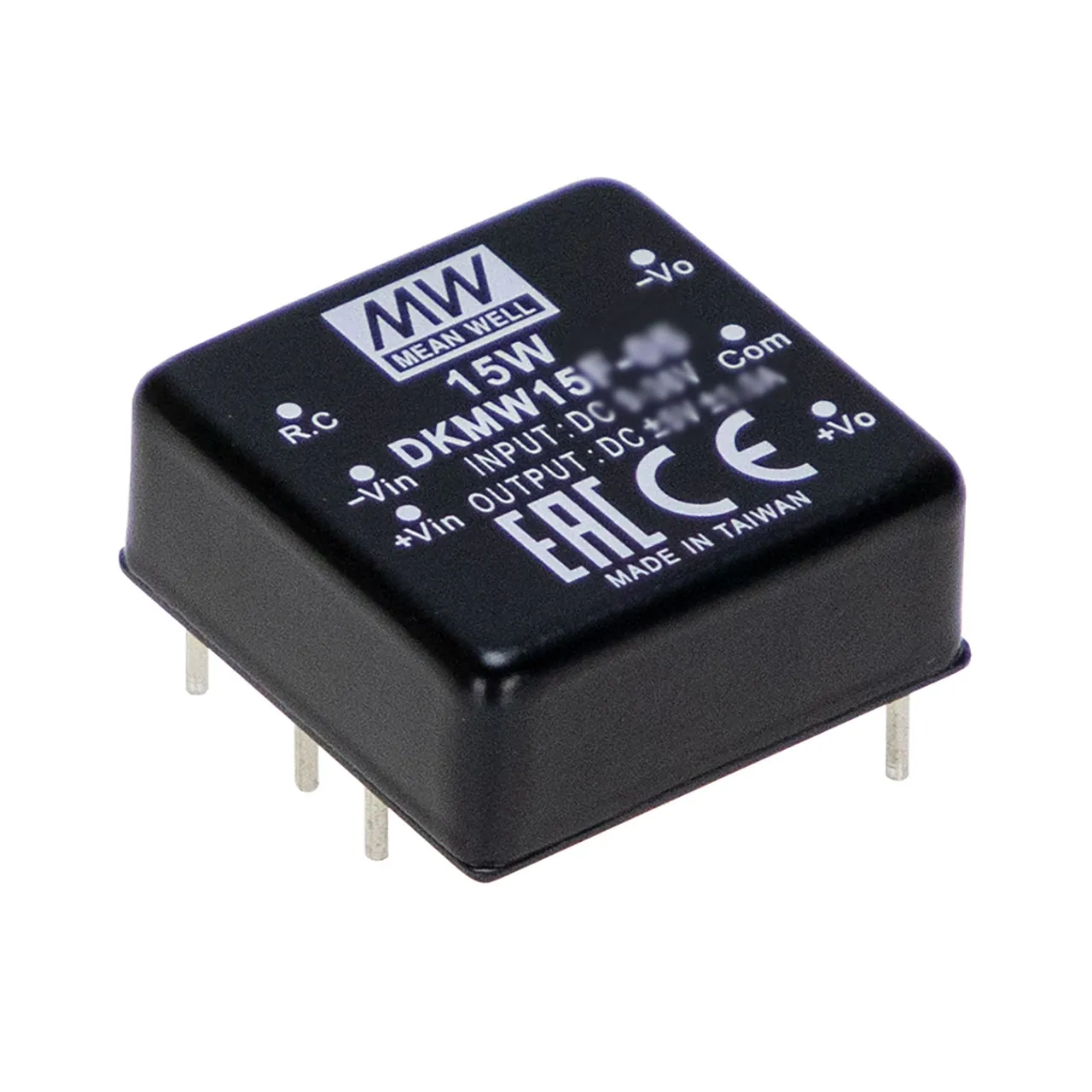

Dual Output 15W DC-DC Regulated Converter ±15V ±500mA 18-75Vin

Features

  • DIP 1"x1" package with industry standard pinout
  • 4:1 ultrawide input range
  • Operating temperature range: -40 to +85°C
  • No minimum load required
  • Complies with BS EN/EN55032 radiated Class A without additional components
  • High efficiency up to 89%
  • Protections: Short circuit (continuous), Overload, Over voltage, Input under voltage
  • 3000 VDC I/O isolation
  • 3 year warranty

Overview

DMKW06 series is a 15-watt isolated and regulated module type DC-DC converter with DIP 1"x1" package. This model has an ultrawide input voltage range of 18V to 75V, 48V nominal, and dual output of ±15V and is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

Specifications

  • Output Voltage: ±15 VDC
  • Output Current: ±0 to ±500 mA
  • Input Voltage Range: 18 VDC to 75 VDC; 48 VDC Normal
  • Input Current: 25 mA (no load); 360 mA (full load)
  • Capacitor Load (max.): 330 µF (each output)

Product Identification

Type:Isolated
Product Type:DC-DC Regulated Converter SMPS
Manufacturer Series:DKMW15

Compliance

Agency Approvals:CE, EN, EAC, UKCA

Dimensions & Appearance

Color:Black
Height:0.40 in.
Width:1 in.
Length:1 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:18 VDC to 75 VDC
Input Voltage:48 VDC
Maximum Input Current:0.360 A

Output

Number of Outputs:2
Additional Output Voltages (VDC):-15 VDC
Output Connector Type:PC Pins
Output Voltage:15 VDC
Output Current:0.500 A

Features

Pins:6
Efficiency:89%
Power Rating:15 W
,
