Dual Clamp Tie, 19.20" Long, 0.25" Stud Dia, 2.30" Max Bundle Dia, 150lb, PA66HIRHSUV, Black, 50 per Package

Features

• Provides dual separation between bundles to prevent chafing and abrasion. 150lb. tensile strength ensures enough strength for heavy duty applications. Straps are releasable for increased serviceability.
• Product Type: Dual Clamp Ties

Technical Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 2.28"
• Bundle Diameter Max. (Metric): 58.0 mm
• Bundle Diameter Min. (Imperial): 0.25"
• Bundle Diameter Min. (Metric): 6.4 mm
• Cable Tie Closure: plastic pawl
• Fixation Method: Weld Stud Fixing
• Focused Markets and Industries: Automotive Industry
• Height H (Imperial): 0.8"
• Height H (Metric): 20.32 mm
• Length L (Imperial): 19.2"
• Length L (Metric): 487.68 mm
• Mounting Hole Diameter D (Imperial): 0.20"
• Mounting Hole Diameter D (Metric): 6.2 mm
• Mounting Hole Diameter D Max. (Imperial): 0.20"
• Mounting Hole Diameter D Max. (Metric): 6.2 mm
• Mounting Hole Diameter D Min. (Imperial): 0.20"
• Mounting Hole Diameter D Min. (Metric): 6.2 mm
• Mounting Hole Shape: Round
• Recommended Application Tool: 110-80003
• Releasable Closure: No
• Stud Diameter (Imperial): 1/4"
• Stud Diameter (Metric): M6
• Tensile Strength Min. (Imperial): 150 lbs
• Tensile Strength Min. (kgf): 68.02 kgf
• Tensile Strength Min. (Metric): 667 N
• Thickness T (Imperial): 0.06"
• Thickness T (Metric): 1.4 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.02645547144
• Width W (Imperial): 0.5"
• Width W (Metric): 12.7 mm
• Width W2 (Imperial): 0.7"
• Width W2 (Metric): 19.7 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306165286

Overview

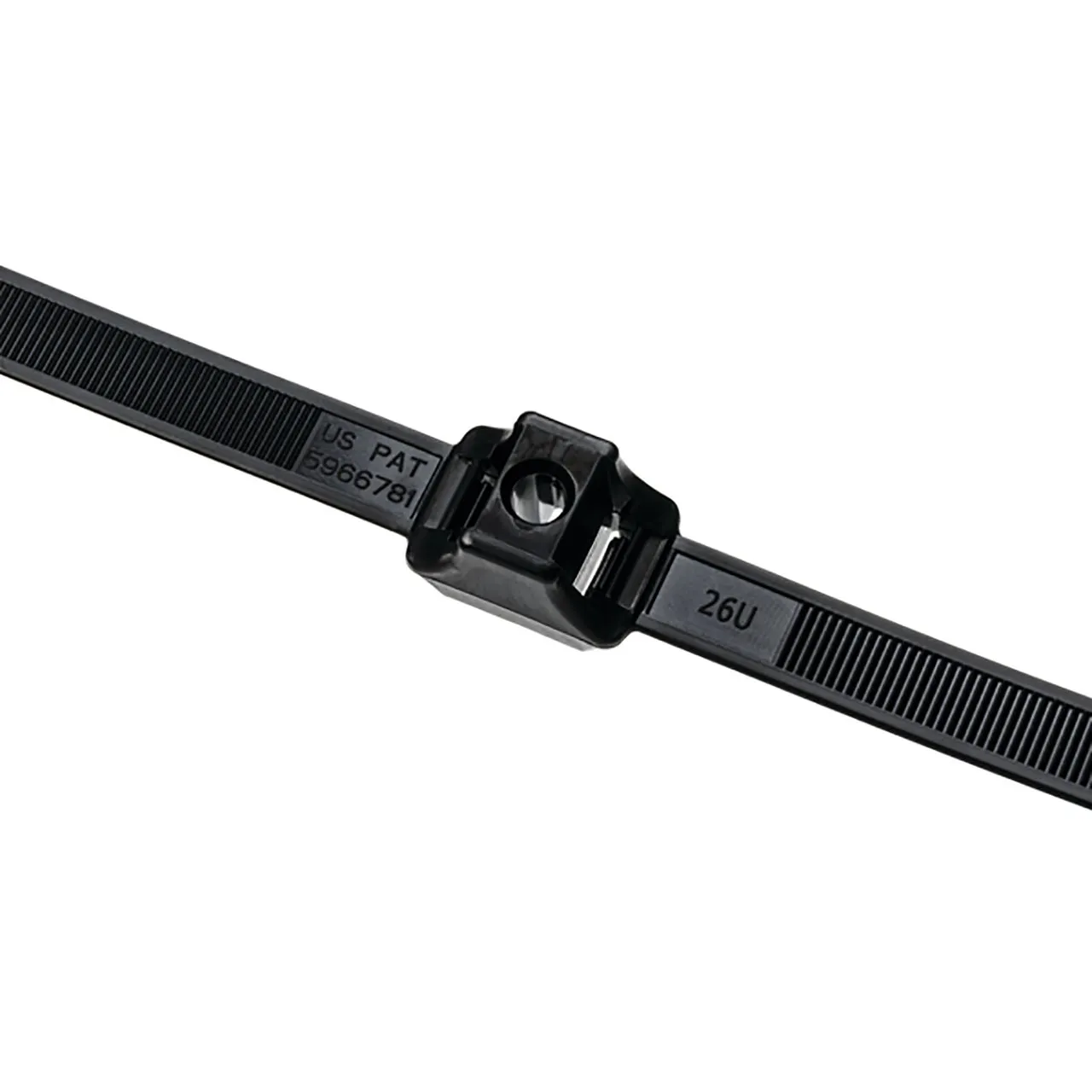

Dual-Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of trucks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap.
