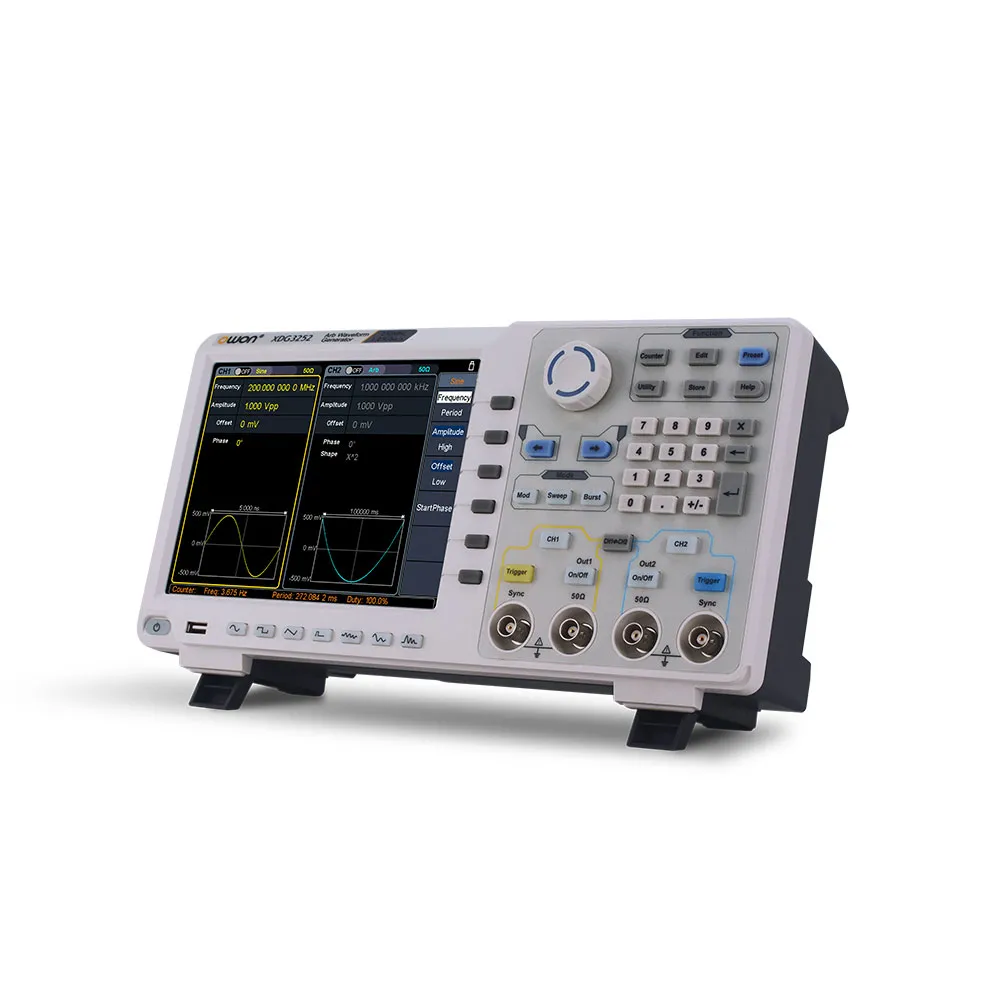

Dual Channel Arbitrary Waveform Generator 80MHz 1.25 GSa/s 14-bit 8" Touchscreen LCD

Specifications

• Advanced DDS technology
• 80 MHz frequency output
• 1.25 GSa/s sample rate, vertical resolution: 1 µHz
• 14-bits Vertical Resolution, up to 1M arb waveform length
• Comprehensive waveform output: sine, square, pulse, ramp, noise, harmonic
• Comprehensive modulation functions: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep and Burst
• High accuracy frequency counter integrated, supported range: 100 mHz to 200 MHz
• SCPI and LabVIEW supported
• Communication Interface: USB Host, USB device and LAN
• 8" multi-touch screen (800 x 480 pixels)
• Size: 340mm x 177mm x 90mm

Resources & Downloads

• PC software for XDG Series Arbitrary Waveform Generator (.zip)
