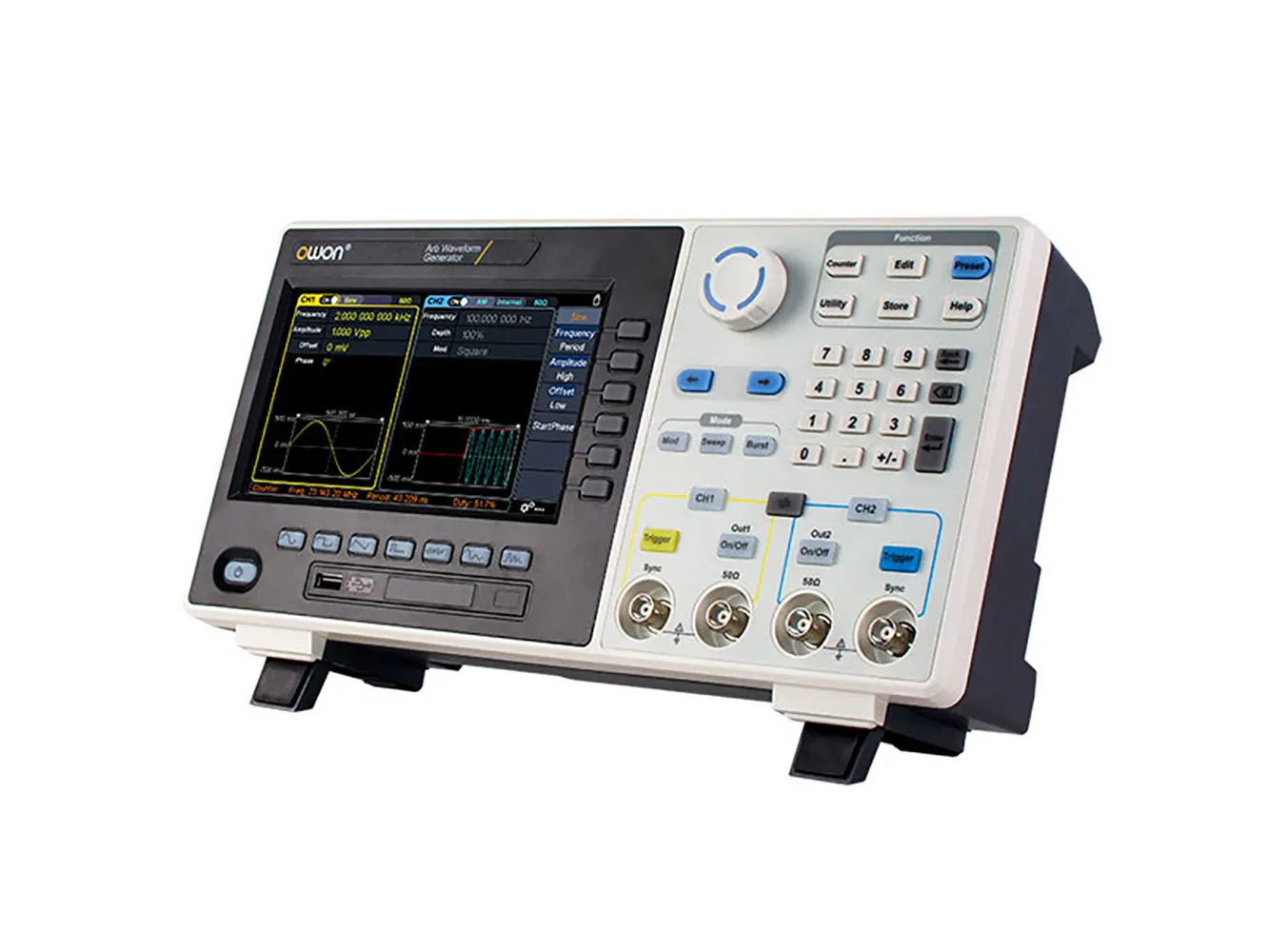

Dual Channel Arbitrary Waveform Generator 100MHz 500 MSa/s 14-bit 7" Touchscreen LCD

Specifications

• 100 MHz frequency output
• 500 MSa/s sample rate, vertical resolution: 1 µHz
• 14-bits Vertical Resolution, 10 Marb waveform length
• Comprehensive waveform output: sine, square, pulse, ramp, noise, harmonic
• Comprehensive modulation functions: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, DSB-AM, QPSK, SUM, BPSK, PWM, Sweep and Burst
• High accuracy frequency counter integrated, supported range: 100 mHz to 200 MHz
• SCPI and LabVIEW supported
• 7" multi-touch screen (800 x 480 pixels)
• Size: 340mm x 177mm x 90mm

Resources & Downloads

• PC software for XDG Series Arbitrary Waveform Generator (.zip)
