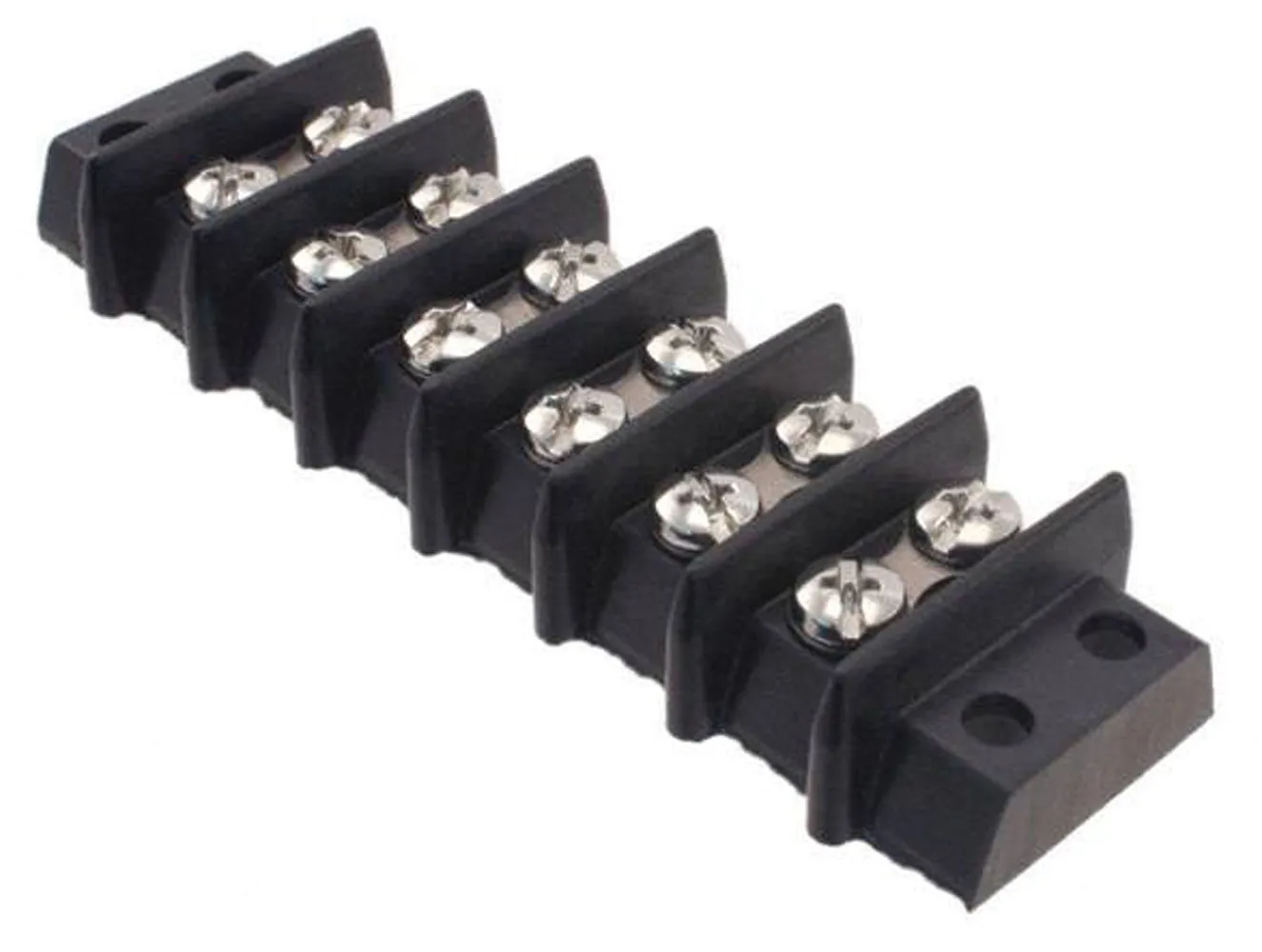

DUAL BARR TERM BLOCK,STD,2-ROW,.563",6-POS,OPEN,30A@250V
Product Identification
Product Type:Dual Row Barrier Strip
Manufacturer Series:142
Dimensions & Appearance
Depth:26.99 mm
Length:110.34 mm
Mounting:Chassis, Panel
Body Orientation:Straight
Operating conditions
Minimum Operating Temperature:-55°C
Maximum Operating Temperature:300°C
Features
Number of Rows:2
Housing Color:Black
Number of Positions:6
Bottom Termination:Open Bottom w/ Flange
Top Termination:Screw, 6-32
Wire Gauge (AWG):10
Contact Plating:Nickel
Housing Material:PheNolic
Contact Material:Steel
Pitch:0.563 in., 14.3 mm
Voltage Rating:250 VAC
Current Rating:30 A
