Dry Reed Switch SPST-NO 250mA 7-19 At

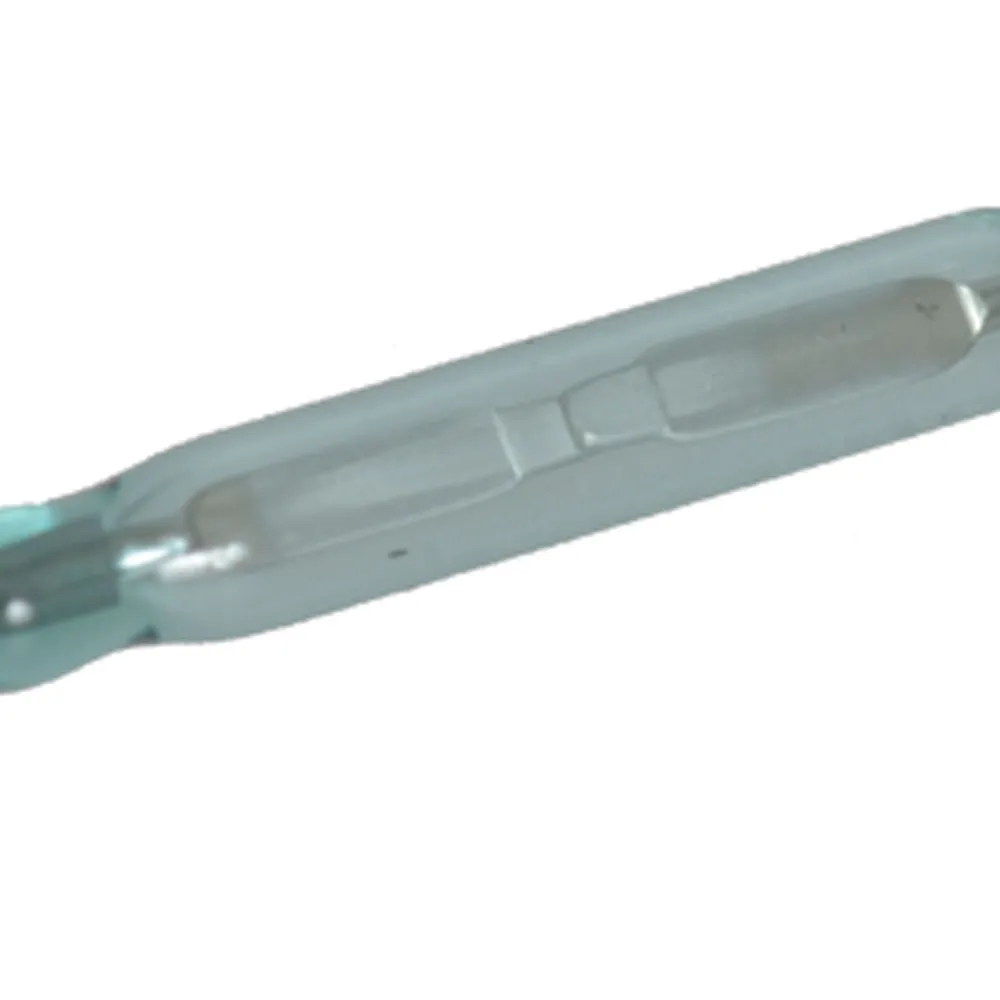

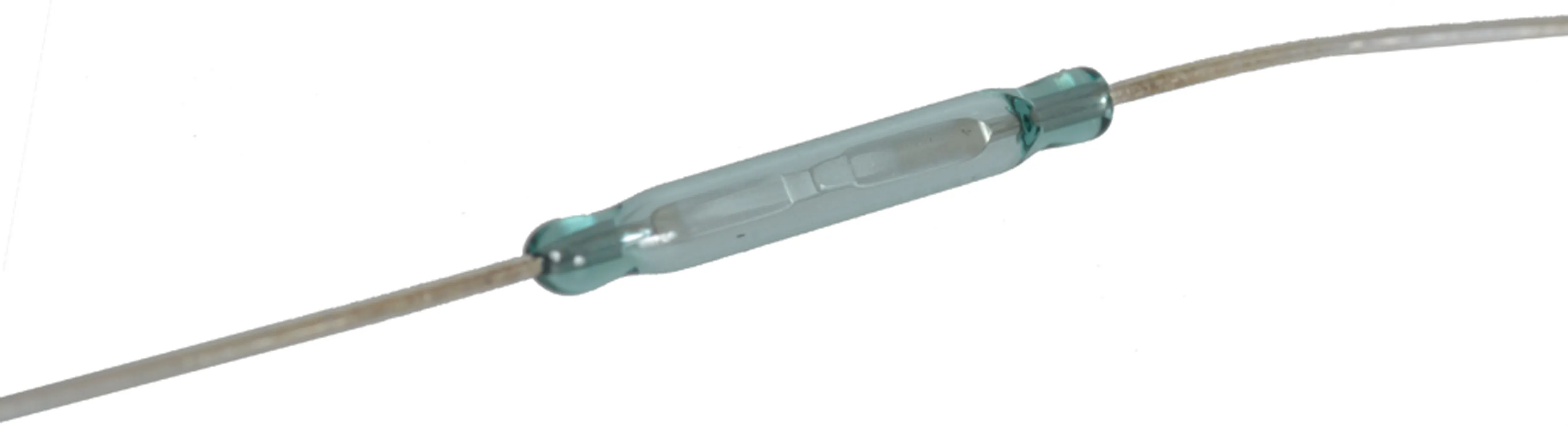

Pico dry-reed switch hermetically sealed in a gas-filled glass envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in relays, sensors, pulse counters or similar devices.

Features

• Ideal for general purpose reed relays and sensors
• Contact layers: Ruthenium on gold
• Superior glass-to-metal seal and blade alignment

Specifications

• Switch Type: Dry Reed
• Contact Form: SPST-NO
• Contact Rating: 250 mA
• Operate Range: 7 At to 19 At
• Magnet Type: Electromagnet
• Termination Style: Axial
• Mounting: PCB
