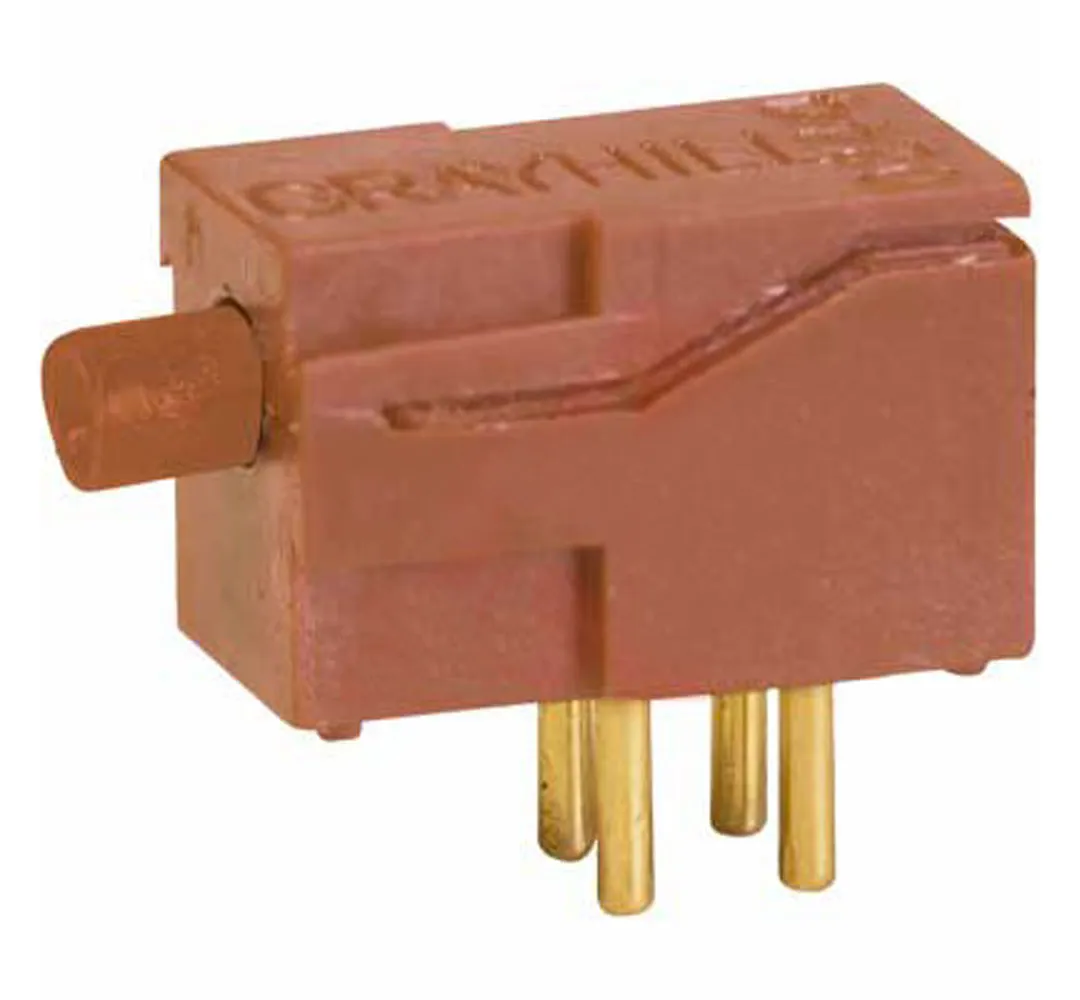

DPST NO/NC Butt Contact Pushbutton Switch
Features
- Series 32
- Stackable
- 0.2" centers when stacked
- SPST-NO, SPST-NC circuitry in the same package
- Process compatible, internal sealed plunger
Specifications
- Type: Standard
- Circuit: DPST (1-NO, 1-NC)
- Switch Function: On-Mom, Off-Mom
- Current Rating: 150mA (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 28V
- Actuator Type: Round, Plunger
- Color - Actuator/Cap: Black
- Illumination Type, Color: -
- Illumination Voltage (Nominal): -
- Mounting Type: Through Hole, Right Angle
- Termination Style: PC Pin
- Ingress Protection: -
- Features: Sealed - Fully, Stackable
- Panel Cutout Dimensions: -
- Operating Temperature: -40°C to 85°C
- Mechanical Life: -
- Electrical Life: 100,000 Cycles
