DPS3340 Discovery USB Programmable Power Supply: Three Channel Variable DC Output

Features

• 1 V to 5 V / 10 mA to 3 A output
• -1 V to -15 V / -10 mA to -500 mA output
• 1 V to 15 V / 10 mA to 500 mA output
• Optional tracking between the -15 V and 15 V outputs
• Overcurrent protection options provided through WaveForms
• Auxiliary powered - 19 V +/- 5%, 3.2 A maximum, 60 W maximum, 5.5 mm x 1.65 mm, center positive

Overview

Digilent's Discovery USB Programmable Power Supply (DPS3340) is a three-channel variable DC programmable power supply that allows users to control the power provided to their external circuits. Providing both constant voltage and constant current modes with built-in readback sensors and optional tracking for the output channels, you can confidently power your circuits according to your requirements. Driven by the free WaveForms software (Mac, Linux, and Windows compatible), the Discovery USB Programmable Power Supply can be used either as a stand-alone product or in combination with any of Digilent's Test and Measurement devices acting as its own Tool within the WaveForms software - no external triggers or multiple instances of software required.

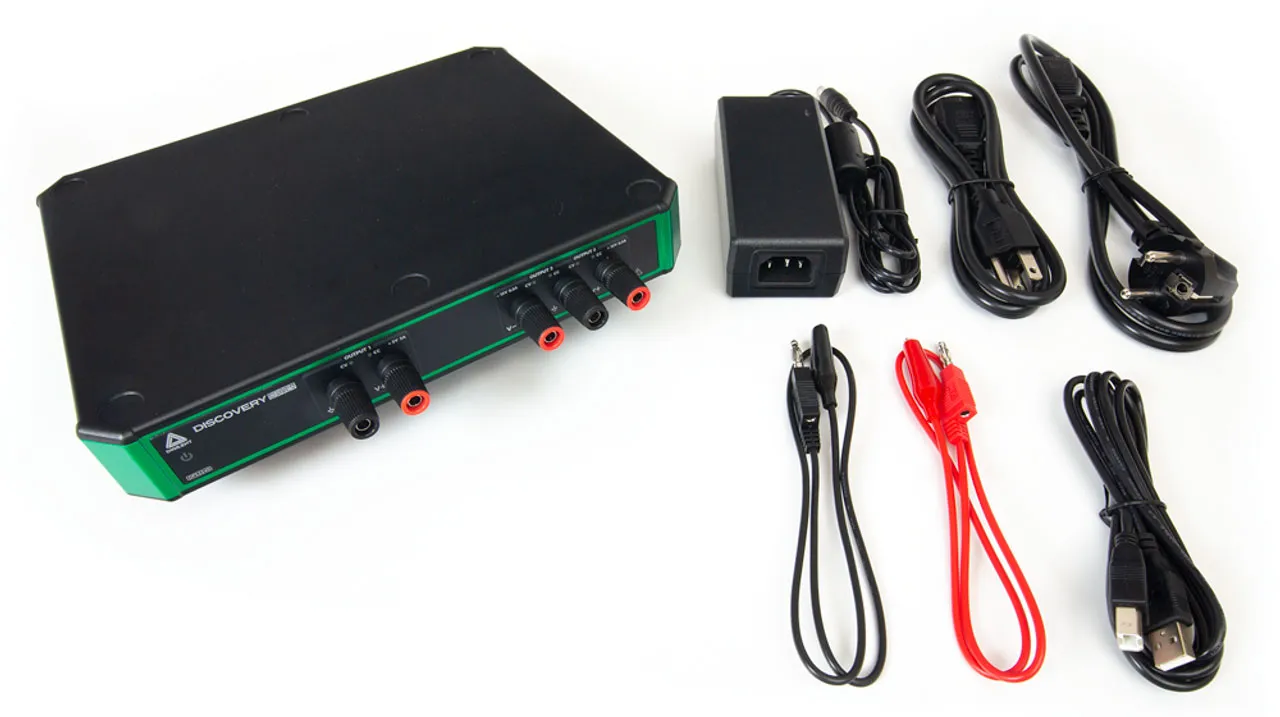

What's Included

• DPS3340
• One red and one black alligator clip to banana plug cable
• 19 V, 3.4 A Power Supply
• European and US IEC Cables
• USB A to B Cable

Resources & Downloads

The resource center for the Discovery USB Programmable Power Supply (DPS3340) is the central hub of technical content for the device and contains everything to get started and reduce mean time to test. This includes a getting started guide, documentation, tutorials on each instrument, example projects, and a link to technical support.
