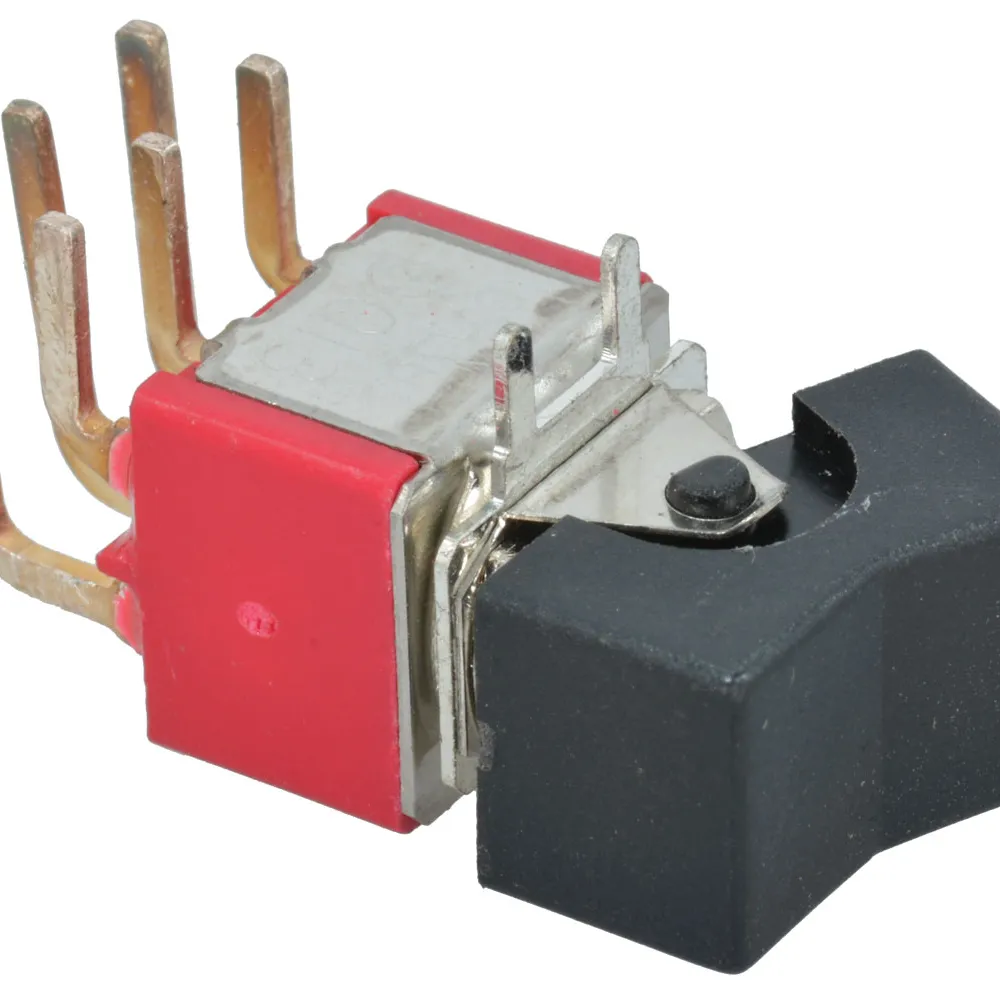

DPDT ON-NONE-(ON) Panel Mount Black Rocker Switch

Specifications

  • Contact Form: PC terminal RA
  • Contact Rating: 5 Amp @ 120 & 2 Amp @ 250 Volt
  • Dimensions (L X W X D) inches: .50 x .45 x .48
  • Number of Pins: 6
  • Terminal Type: PC terminal RA

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount
Depth:0.45 in.
Height:0.48 in.
Length:0.5 in.
Width:0.45 in.
Body Color:Red

Features

Lead Spacing B (inch):0.15
UL Flammability Code:94V-0
Pins:6
Lead Spacing A (inch):0.19
Color - Actuator/Cap:Black
Switch Function:ON-(ON)
Illumination Type:None
Actuator Length:0.17 in.
IP Rating:none
Contact Form:DPDT
Termination Style:PC Pins RA
Actuator Type:Rocker
Current Rating:5A @ 125VAC, 2A @ 250VAC
,
