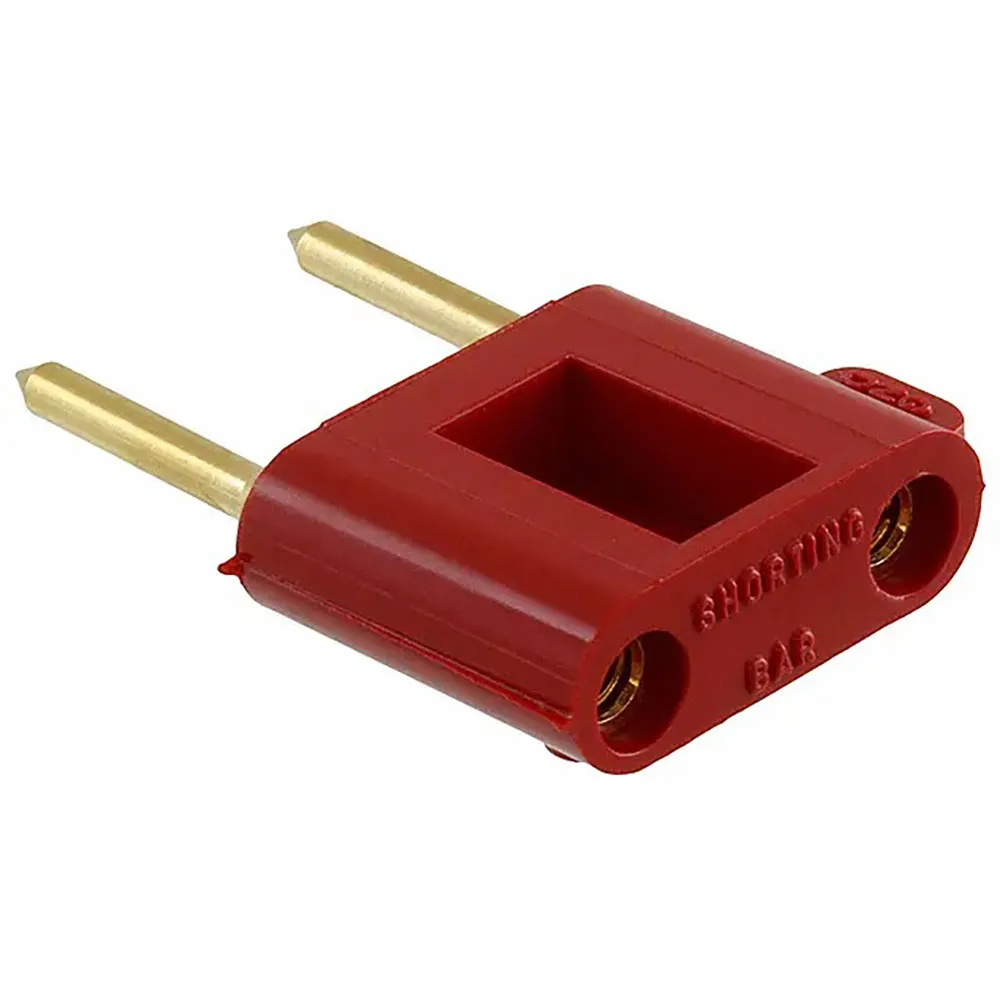

Double Pin Tip Plug with Shorting Bar Red

This plug accepts pin tip plugs and is internally shorted with 20 AWG wire. Use as a connecting link for 0.5" (12.7mm) spaced pin tip jacks.

Specifications

  • Type: Stackable Double Tip Plug
  • Gender: Male
  • Plug/Mating Plug Diameter: Standard Tip
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Solderless
  • Insulation: Non-Mating End Insulated
  • Features: Shorting Bar
  • Color: Red
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Body Material: Acrylonitrile Butadiene Styrene (ABS)
  • Operating Temperature: 50°C

Product Identification

Product Type:Tip Plug, Double, Stackable

Dimensions & Appearance

Body Material:ABS
Mounting Type:Free Hanging
Color:Red
Length:1.200 in.

Features

Contact Material:Beryllium Copper
Insulation Material:ABS
Insulation:Non-Mating End
Contact Plating:Gold
Gender:Male
Wire Gauge (AWG):N/A
Termination:Solderless
Current Rating:5 A
Voltage Rating:3000 VDC
,
