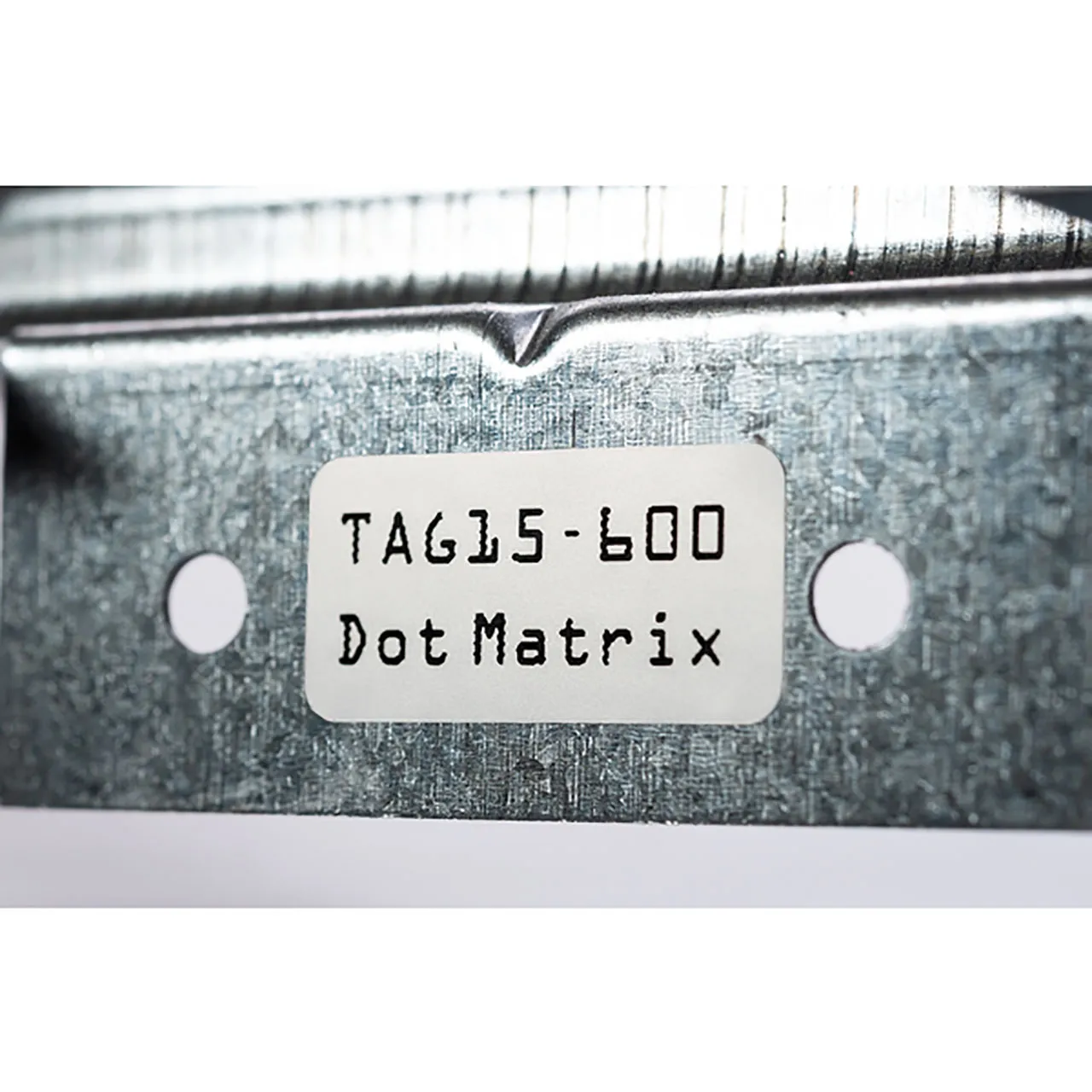

Dot Matrix Label, 0.90" x .25", 8 Across, Polyester, White, 5000 per Package

Features

• Tabtag dot matrix labels are specifically made for use in dot matrix printers for fast and easy printing. Labels come with a pin-feed margin to ensure they can easily be loaded into any dot matrix printing system. White dot matrix polyester has a matte finish, allowing for the highest resolution and print contrast using impact printers. The acrylic-based adhesive bonds to a wide variety of substrates and can withstand high temperatures long term.
• Product Type: Labels for Dot Matrix Printers

Technical Specifications

• Material: Type 400, Polyester, white (400)
• Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Height H (Imperial): 0.25"
• Height H (Metric): 6.35 mm
• Horizontal Repeat HR (imperial): 1.0"
• Horizontal Repeat HR (metric): 25.40 mm
• Installation Temperature: from +50°F (from +10°C)
• Labels per Column: 8
• Labels per Row: 8
• Print Method: Dot-Matrix
• Printable Area Height (metric): 6.40 mm
• Self laminating: No
• Thickness T (Metric): 25.0 µm
• Vertical Repeat VR (imperial): 0.333"
• Vertical Repeat VR (metric): 8.45 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width of Liner WL (imperial): 8.9"
• Width of Liner WL (metric): 226.00 mm
• Width W (Imperial): 0.9"
• Width W (Metric): 22.8 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH18396 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306093565

Overview

HellermannTyton white polyester labels are ideal for marking small electrical and electronic components, such as EPROMS’, Integrated circuits, as well as the circuit board itself. Printed labels can withstand the soldering process and survive flux removal when the board is washed. HellermannTyton’s 400 material is designed for use on flat surfaces and can also be used to identify connectors, buttons and just about anything requiring permanent, durable, high temperature and UV resistant marking.
