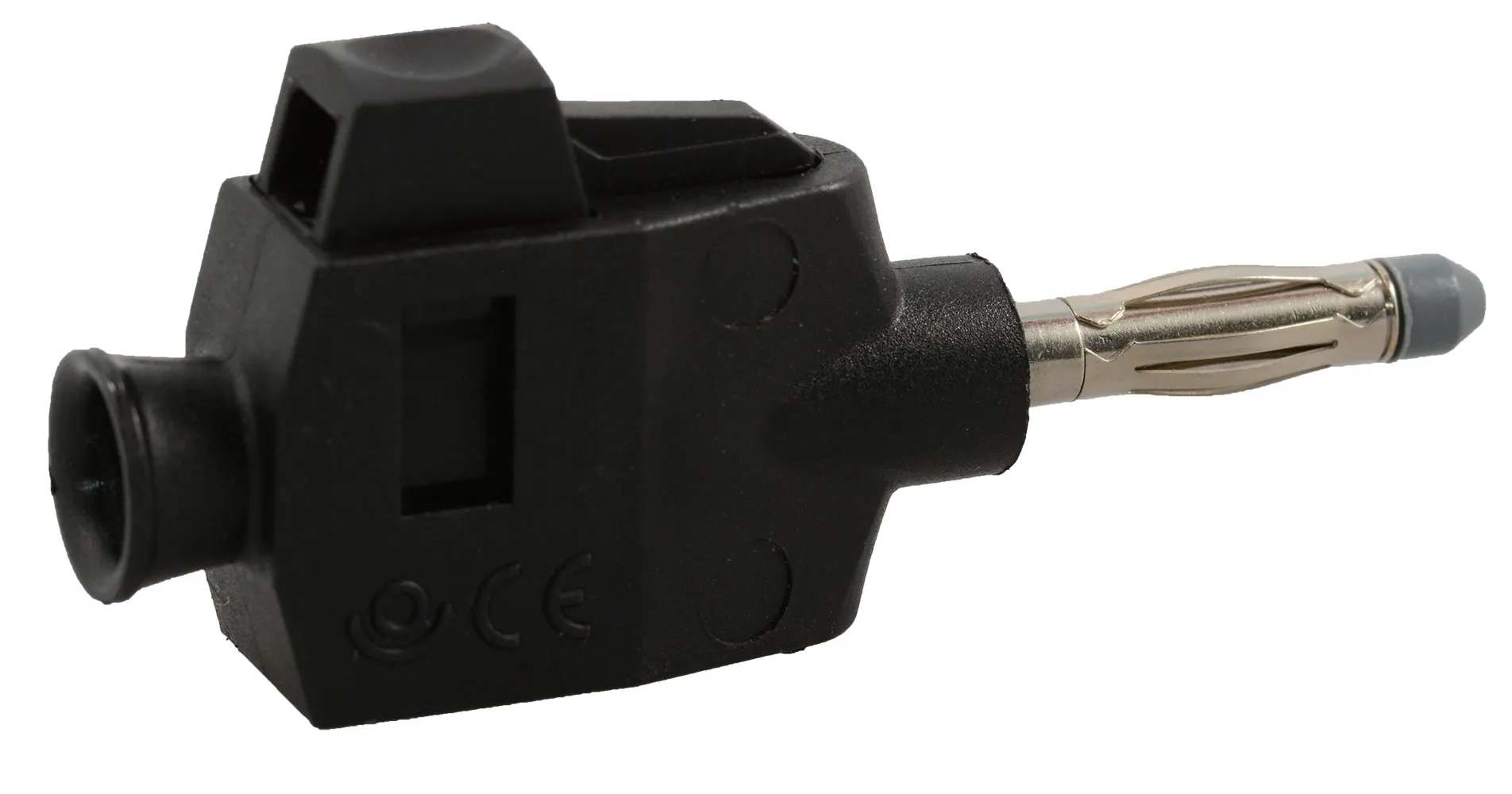

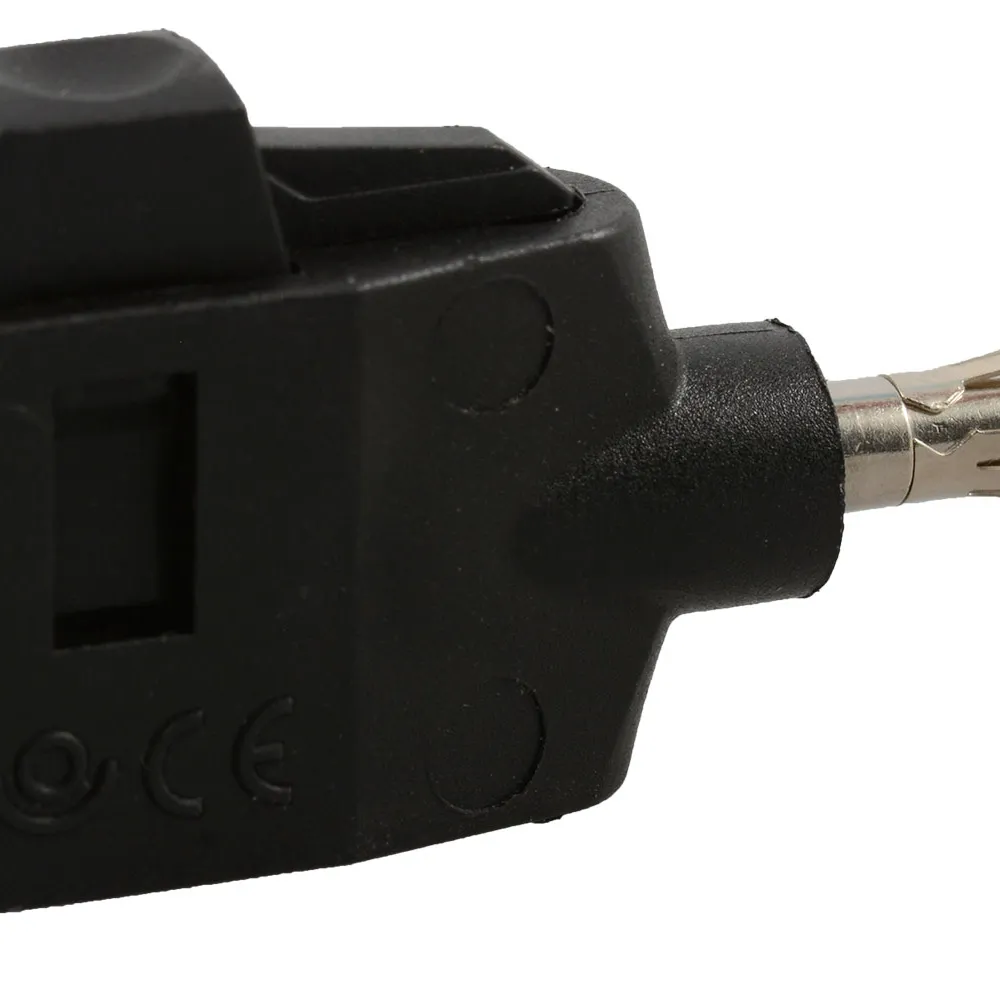

Do-it-Yourself 4mm Banana Plug Connector Quick Wire Attachment Black

Features

• Attach wires quickly with the push-button tab for easy assembly or test lead repair
• No soldering or set screws required; simply, push and hold the push tab, insert the stripped test lead wire (strip 4-6mm of insulation), and release the push tab to secure the wire down
• Great in low voltage applications where prototyping and quick wire attachments are important
• Make 4mm banana plug patch cords conveniently in the field
• Designed to fit on the end of any 22 AWG to 18 AWG wire gauge (such as 18 AWG silicone test lead wire, for example Jameco P/N: 2283287 (black, 50') or P/N: 2283295 (red, 50')

Specifications

• Voltage: 33 VAC / 70 VDC
• Max. Current: 20 A
• Max. Resistance: <10mΩ
• Type: Banana Plug
• Gender: Male
• Plug/Mating Plug Diameter: Standard Banana
• Mounting Type: Free Hanging (In-Line)
• Termination: Solderless
• Insulation: Non-Mating End Insulated
• Features: Push Button Tab
• Color: Black
• Wire Gauge: 18-22 AWG
• Contact Finish: Nickel-plated
• Contact Material: Brass and steel
• Body Material: Polypropylene (PP) and Polyoxymethylene (POM)
