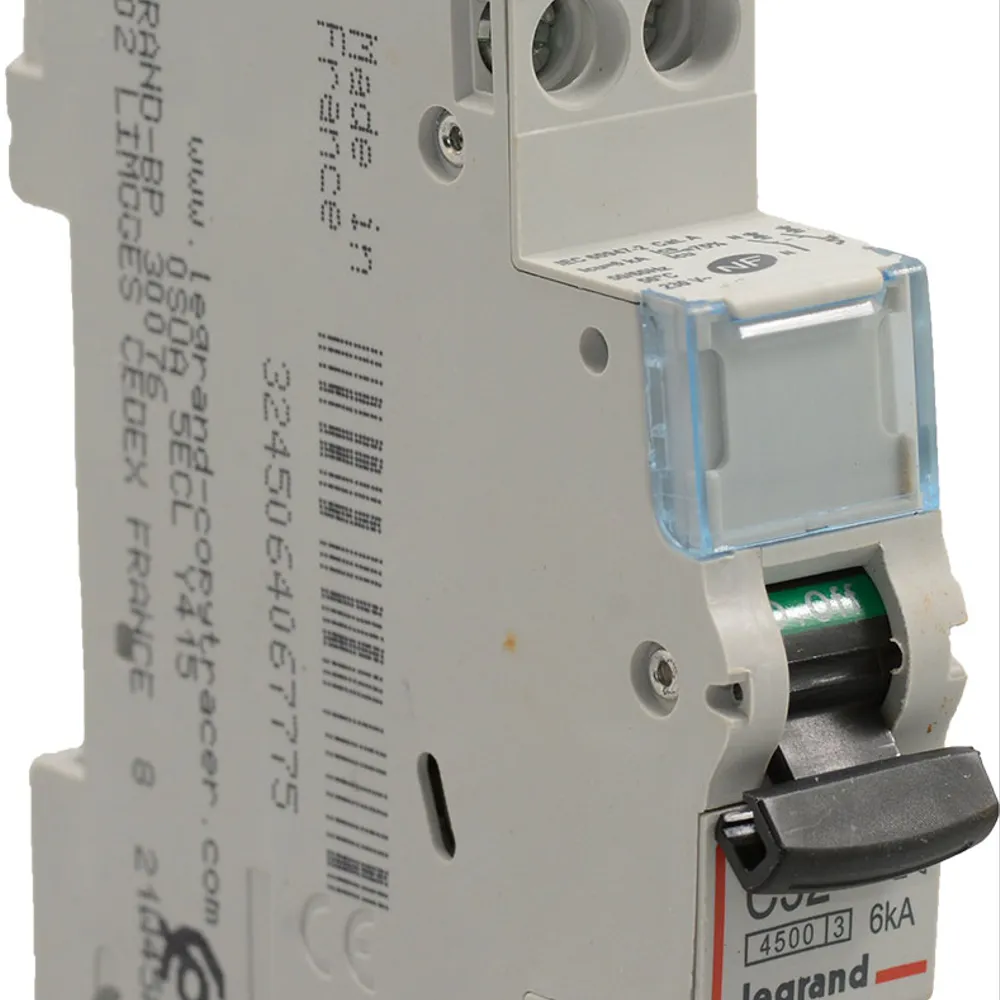

DNX3 4500 Circuit Breaker U+N 230V 32A 4.5KA Curve C

Features

• DNX(3) UNI + neutral circuit breaker 230V ~ cutting power:
• 4500A compliant with standard NF EN 60891-1- 230V ~- 50Hz for residential installations
• 6KA compliant with the EN 60947-2- 230V
• Departure protection: High arrival and low output by screw terminals
• Nominal intensity 32A - Curve C (magnetic trigger between 5in and 10in)
• For combing unipolar universal optimized (phase or neutral) or tetrapolar
• Allows the realization of flying tests (presence voltage)
• Receives the auxiliaries and accessories DX3
• Protected terminals against IP20 touch, cable device

Overview

DNX, Modular Phase+Magnetothermic circuit breaker with fully visible cutting for the control, protection and sectioning of electrical circuits.
