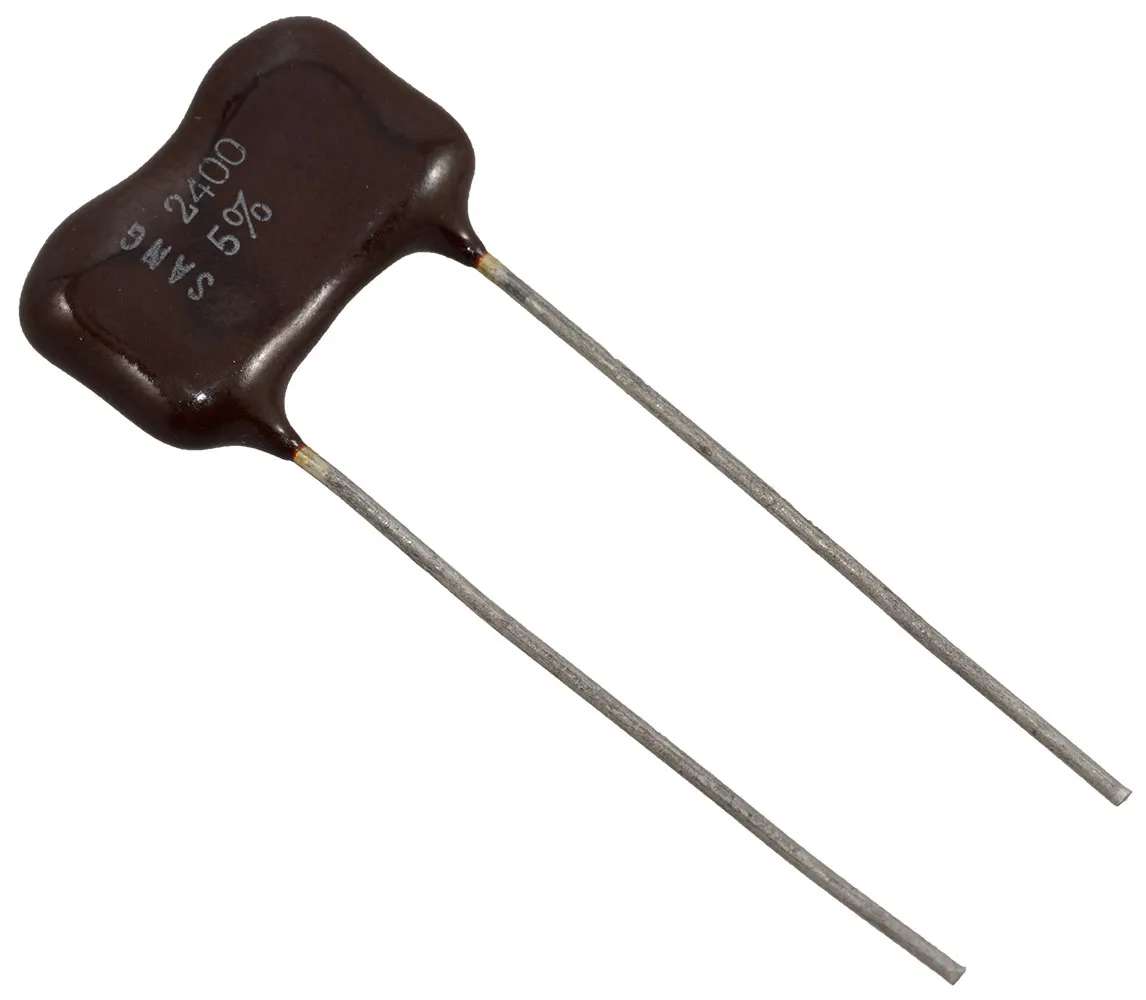

Dipped Mica Capacitor Mylar 2400pF 5% 500V Radial

Specifications

  • Series: CM06 / CD19
  • Capacitance: 2400 pF (242)
  • Tolerance: ±5%
  • Voltage - Rated: 500 V
  • Dielectric Material: Mica
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: Radial
  • Lead Spacing: 0.343" (8.70mm)
  • Features: General Purpose
  • Size: 16.00 mm L x 3.80 mm W
  • Height - Seated (Max): 12.00 mm
Notification: QPL or Military Specs are for reference only. Parts are not for military use. See Terms and Conditions.

Dimensions & Appearance

Mounting:Through Hole
Depth:4.5 mm
Height:12 mm
Width:18.5 mm

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C

Features

Tolerance:5%
Pitch:11 mm
Capacitance:2400 pF
Voltage Rating:500 VDC
,
