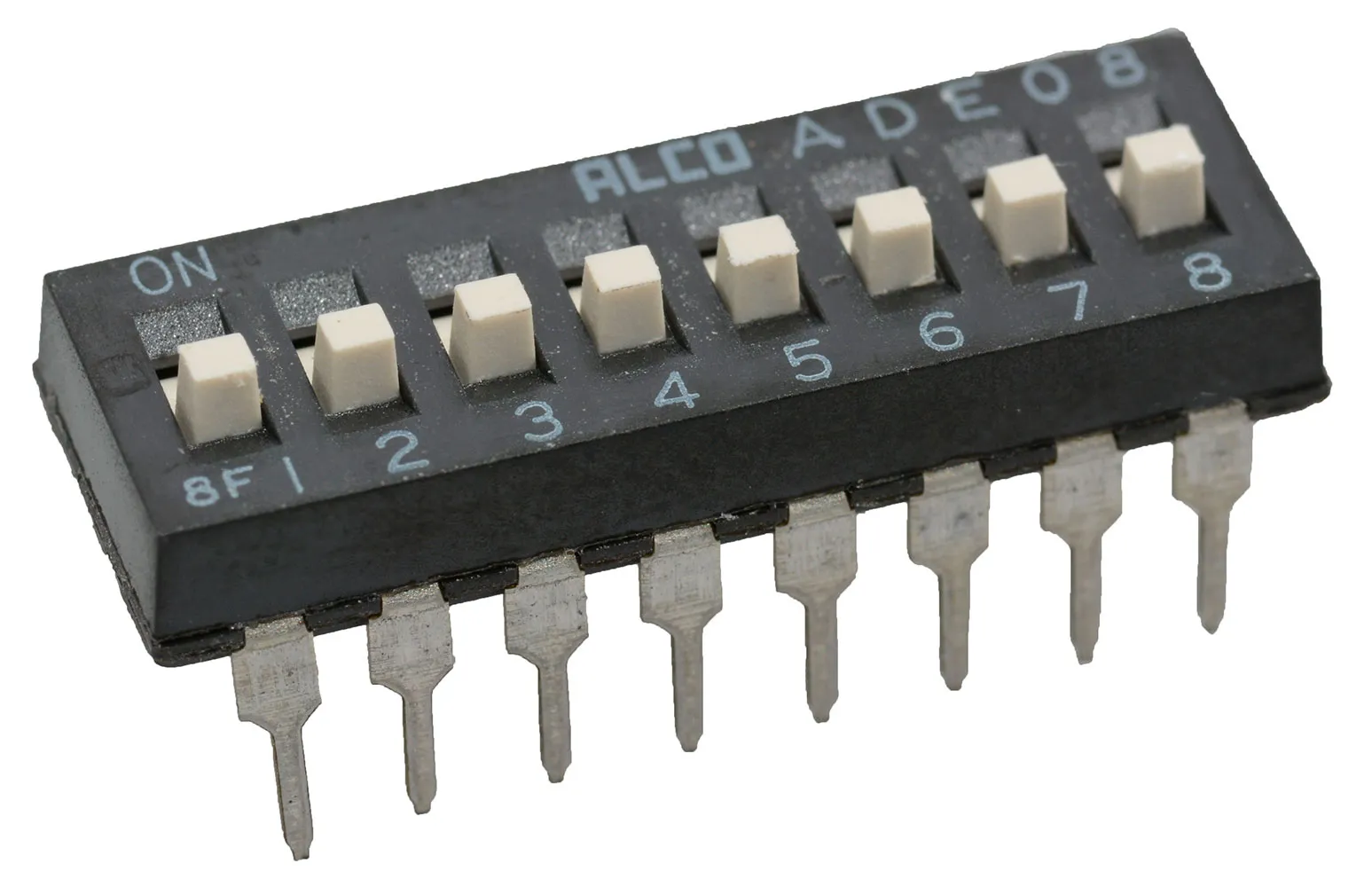

DIP Switch SPST 8 Position Standard Slide Actuators 100mA 24VDC DIP-16

Specifications

  • Series: ADE
  • Circuit: SPST
  • Number of Positions: 8
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Current Rating (Amps): 100 mA
  • Voltage Rating: 24 VDC
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Pitch: 0.100" (2.54mm), Full
  • Package: DIP-16
  • Height Above Board: 0.232" (5.90mm)
  • Length: 0.878" (22.30mm)
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Body Material: Polyphenylene Sulfide (PPS)
  • Operating Temperature: -30°C to 85°C
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles
  • Washable: Yes

Product Identification

Product Type:DIP Switch
Family:ADE

Dimensions & Appearance

Mounting:Through Hole

Features

Number of Positions:8
Contact Form:SPST
Actuator Type:Slide Raised (Low-Profile)
,
