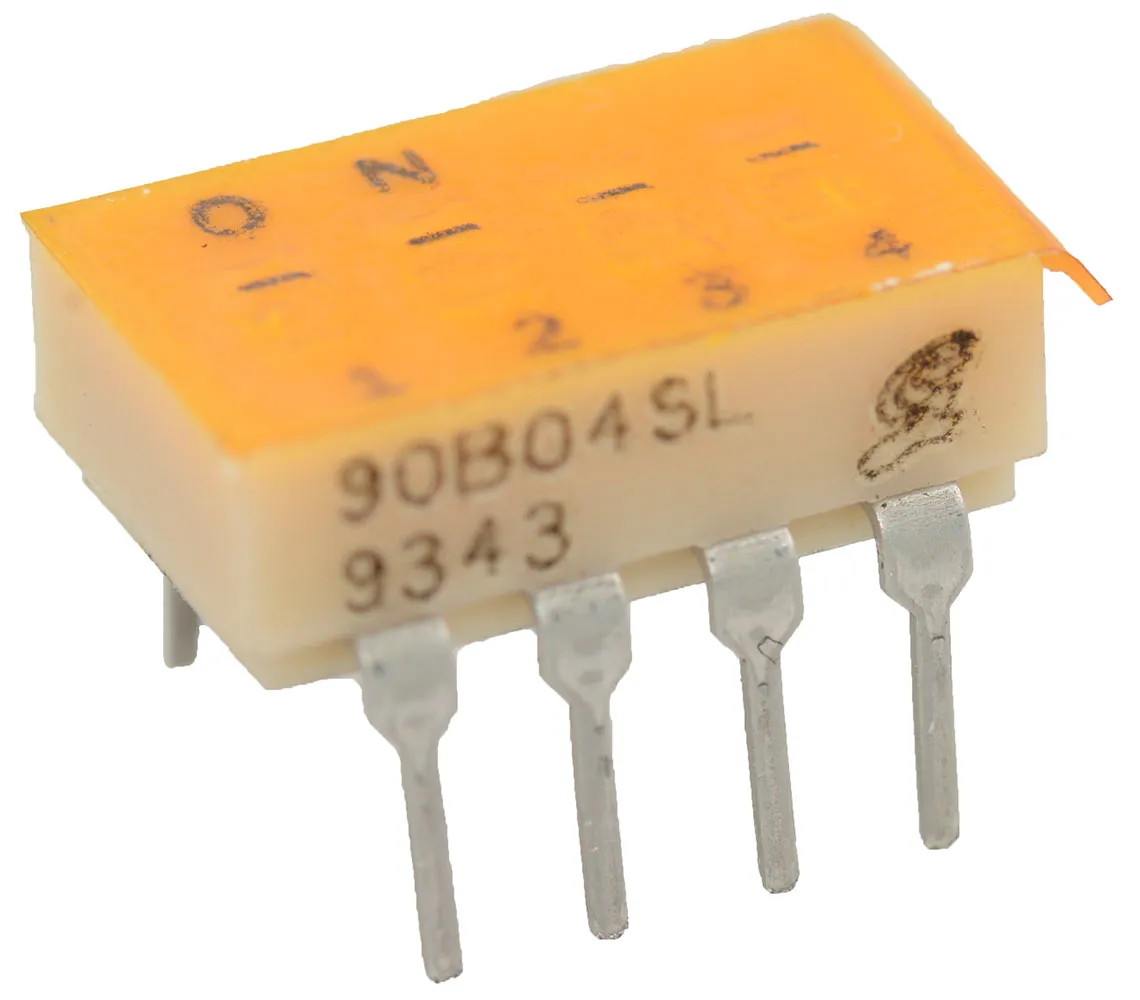

DIP Switch SPST 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC

Specifications

  • Series: 90B
  • Number of Positions: 4
  • Circuit: SPST
  • Current Rating: 25 mA
  • Voltage Rating: 24 VDC
  • Actuator Type: Slide (Standard)
  • Actuator Level: Flush, Recessed
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Height Above Board: 0.195" (4.95 mm)
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Pitch: 0.1" (2.54 mm), Full
  • Washable: Yes
  • Features: Position Identification Line, Tape Seal
  • Operating Temperature: -40°C to 85°C
  • Body Material: Thermoplastic
  • Length: 0.470" (11.94mm)
  • Mechanical Life: 2,000 Cycles
  • Electrical Life: 2,000 Cycles

Product Identification

Family:90B
Product Type:DIP Switch

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Length:11.94 mm

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Packaging

Packaging:Tube

Features

Number of Positions:4
Seal Location:Top
Seal Description:Tape
Contact Plating:Gold
Contact Material:Copper Alloy
Terminal Type:PC Pins
Pitch:2.54 mm
Contact Form:SPST
Voltage Rating:24 VDC
Actuator Type:Slide Flush (Low-Profile)
Current Rating:25 mA
,
