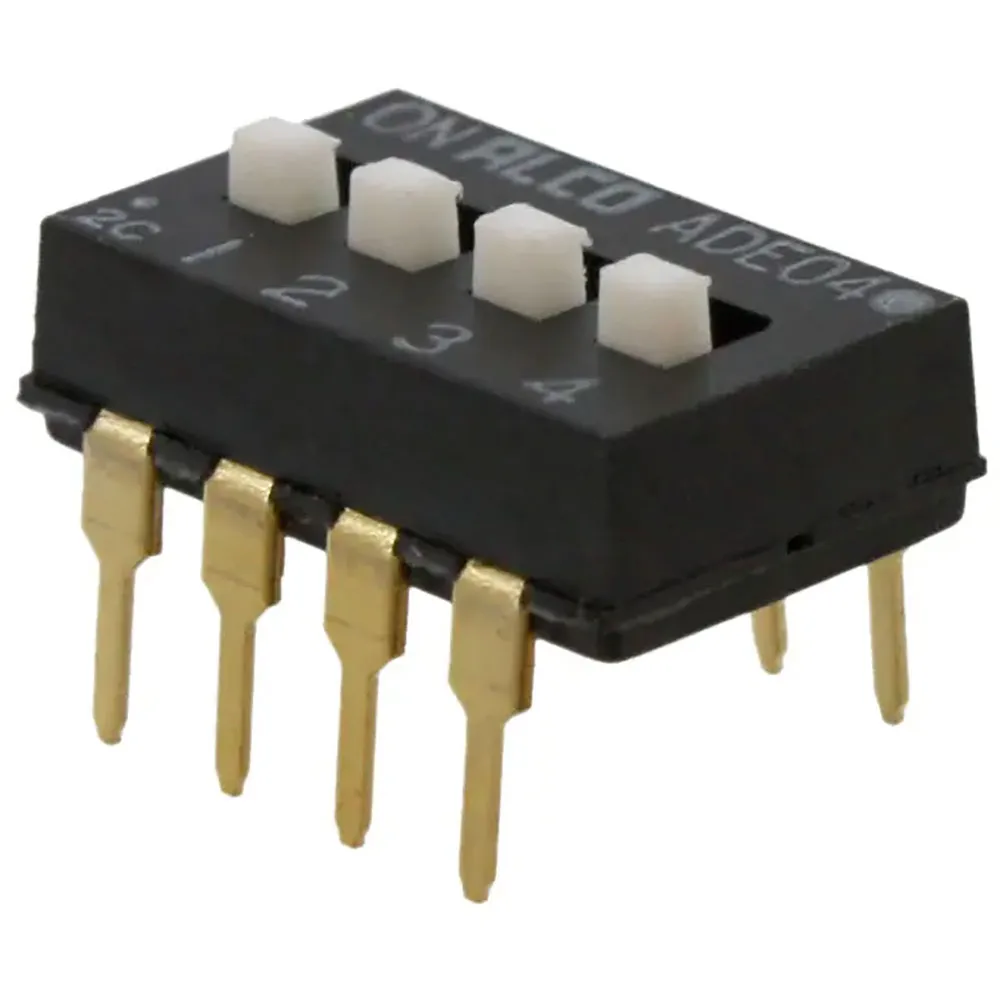

DIP Switch SPST 4 Position Through Hole Raised Slide Actuator (Standard) 100mA 24VDC

specifications

  • Series: ADE
  • Circuit: SPST
  • Number of Positions: 4
  • Current Rating: 100 mA
  • Voltage Rating: 24 VDC
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Height Above Board: 0.228" (5.8 mm)
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Pitch: 0.1" (2.54 mm), Full
  • Washable: Yes
  • Operating Temperature: -30°C to 85°C
  • Body Material: Polyphenylene Sulfide (PPS)
  • Length: 0.476" (12.09 mm)
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles

Product Identification

Family:ValuePro
Product Type:DIP Switch

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Depth:7.50 mm
Length:12.09 mm
Height:3.50 mm

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:85°C

Packaging

Packaging:Tube

Features

Maximum Non Switching Current:100mA
Seal Description:N/A
Number of Positions:4
Seal Location:N/A
Total Pitch:7.62 mm
Dielectric Strength:500Vrms
Minimum Insulation Resistance:5000MOhm
Contact Material:Copper Alloy
Terminal Type:PC Pins
Current Rating:0.1A@24VDC
Contact Plating:Gold/Nickel
Pitch:2.54 mm
Contact Form:SPST
Voltage Rating:24 VDC
Actuator Type:Slide Raised
,
