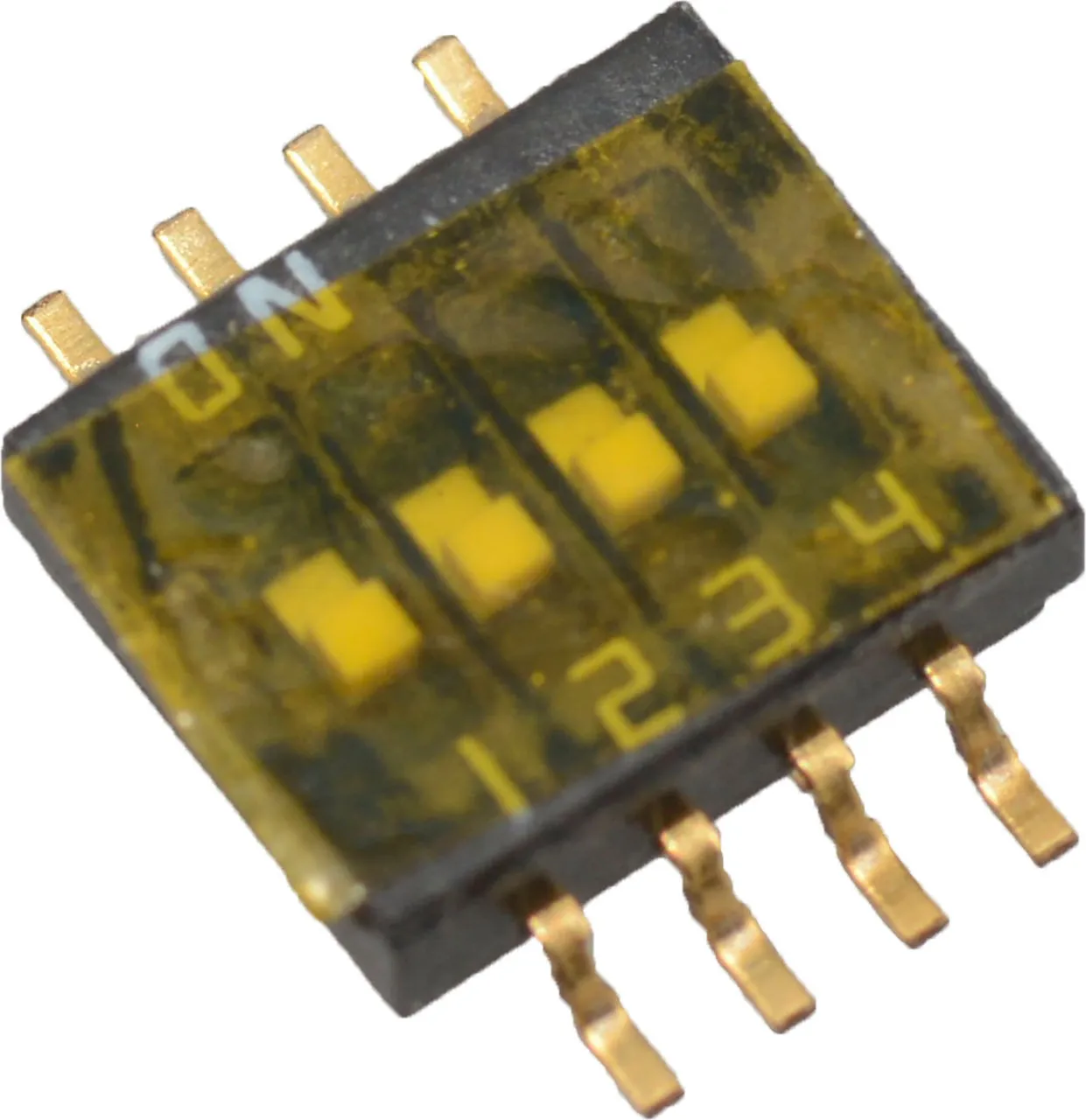

DIP Switch SPST 4 Position Surface Mount Slide (Standard) Flush Actuator 25mA 24VDC

Specifications

  • Circuit: SPST
  • Number of Positions: 4
  • Current Rating: 25 mA
  • Voltage Rating: 24 VDC
  • Actuator Type: Slide (Standard)
  • Actuator Level: Flush, Recessed
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Length: 0.248" (6.31 mm)
  • Height Above Board: 0.063" (1.6 mm)
  • Pitch: 0.05" (1.27 mm), Half
  • Washable: Yes
  • Features: Tape Seal
  • Operating Temperature: -40°C to 85°C
  • Body Material: Polyamide (PA), Nylon
  • Mechanical Life: 1,000 Cycles

Product Identification

Family:ValuePro
Product Type:DIP Switch

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Body Orientation:Straight
Mounting:Surface Mount
Depth:5.40 mm
Height:2.40 mm
Length:6.65 mm

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Packaging

Packaging:N/A

Features

Maximum Non Switching Current:100mA
Dielectric Strength:300VAC
Total Pitch:3.81 mm
Minimum Insulation Resistance:100MOhm
Number of Positions:4
Current Rating:0.025A@24VDC
Actuator Material:Nylon
Seal Location:Top
Seal Description:Tape
Contact Plating:Gold
Contact Material:Copper Alloy
Terminal Type:Gull Wing
Pitch:1.27 mm
Contact Form:SPST
Voltage Rating:24 VDC
Actuator Type:Slide Flush
,
