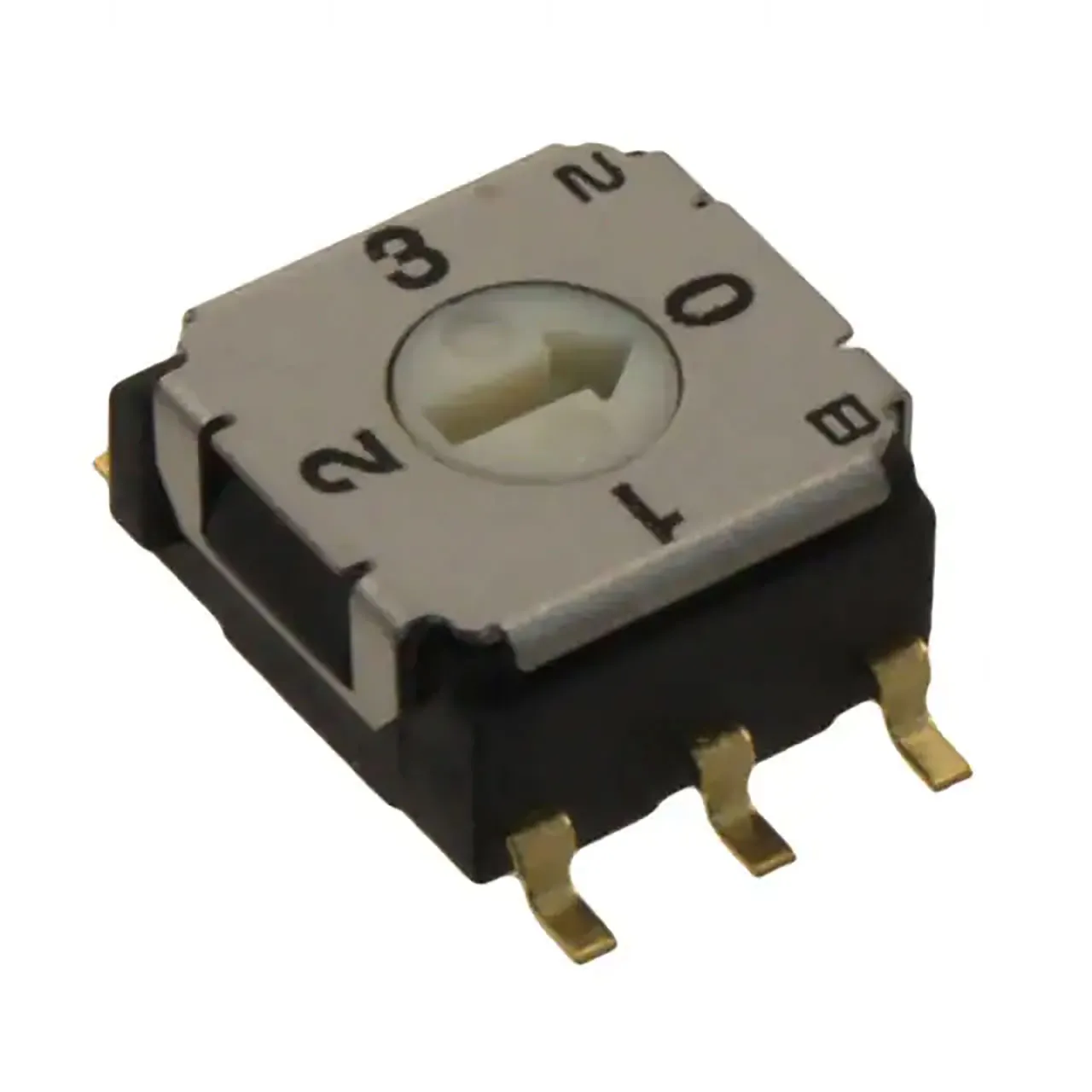

Dip Switch SP4T 4 Position Surface Mount Rotary for Tool 100mA 5VDC

Specifications

  • Series: CS-7
  • Circuit: SP4T
  • Number of Positions: 4
  • Current Rating: 100 mA
  • Voltage Rating: 5 VDC
  • Actuator Type: Rotary for Tool
  • Actuator Level: Flush, Recessed
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Height Above Board: 0.148" (3.75 mm)
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Pitch: 0.100" (2.54 mm), Full
  • Washable: Yes
  • Operating Temperature: -40°C to 85°C
  • Body Material: Polyphenylene Sulfide (PPS)
  • Length: 0.287" (7.30 mm)
  • Electrical Life: 10,000 Steps

Product Identification

Product Type:Rotary DIP Switch
Family:CS-7

Dimensions & Appearance

Depth:7.10 mm
Height:3.75 mm
Length:7.30 mm
Mounting:Surface Mount
Body Orientation:Straight

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Packaging

Packaging:Tube

Features

Maximum Non Switching Current:100mA
Dielectric Strength:250VAC
Number of Positions:4
Total Pitch:5.08 mm
Minimum Insulation Resistance:1000MOhm
Seal Description:Tape
Seal Location:Top/Botton
Contact Plating:Gold
Contact Material:Copper Alloy
Terminal Type:Gull Wing
Voltage Rating:5 VDC
Current Rating:0.1A@5VDC
Contact Form:SP4T
Pitch:2.54 mm
Actuator Type:Rotary Top Slot
,
