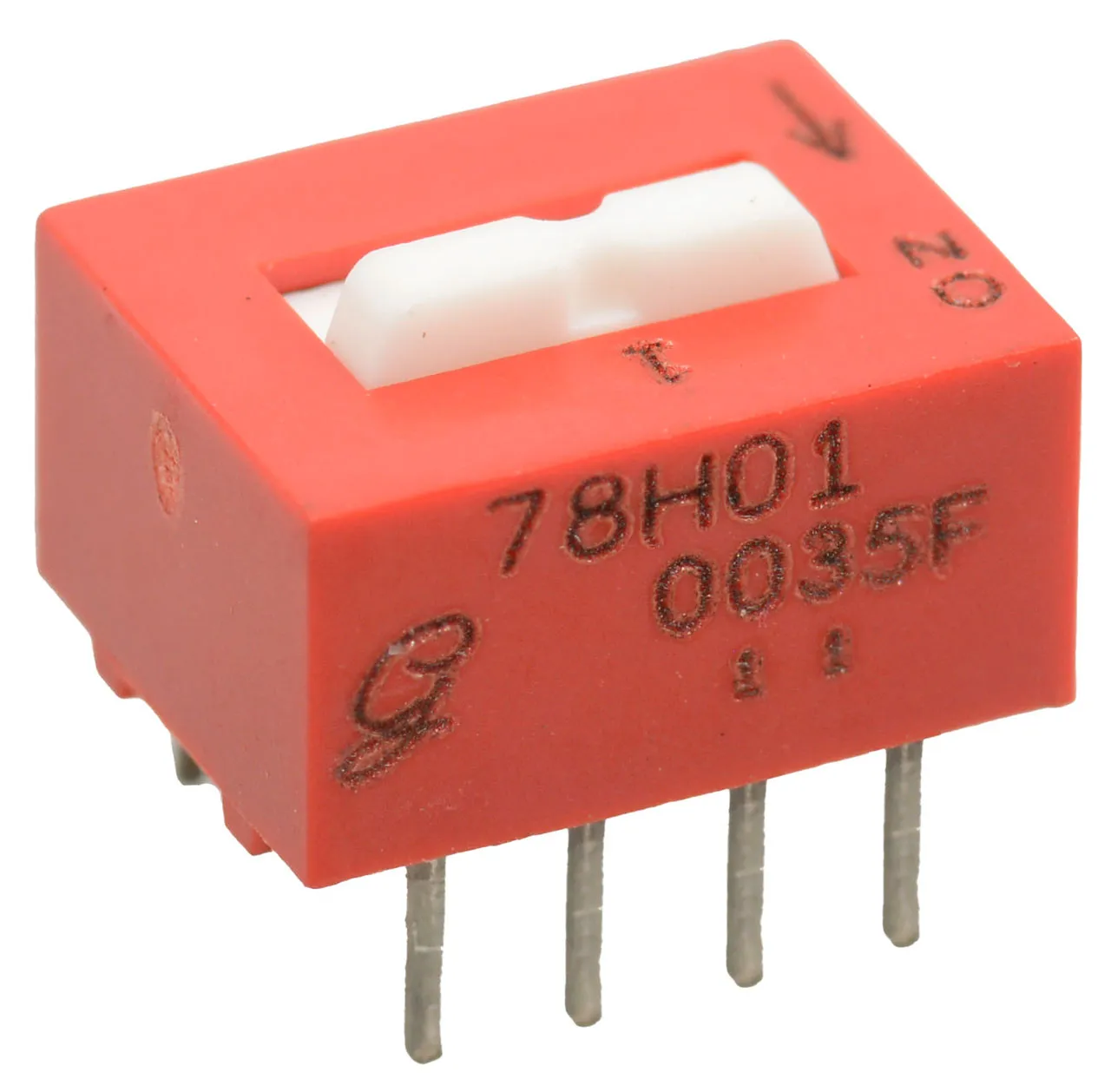

DIP Switch 4PST 1 Position Through Hole Slide (Standard) Actuator 150mA 30VDC

Specifications

  • Series: 78
  • Circuit: 4PST
  • Number of Positions: 1
  • Current Rating (Amps): 150 mA
  • Voltage Rating: 30 VDC
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Height Above Board: 0.315" (8 mm)
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Pitch: 0.100" (2.54 mm), Full
  • Washable: No
  • Operating Temperature: -40°C to 85°C
  • Body Material: Thermoplastic
  • Length: 0.480" (12.19 mm)
  • Mechanical Life: 2,000 Cycles
  • Electrical Life: 2,000 Cycles

Product Identification

Family:78
Product Type:DIP Switch

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Depth:9.65 mm
Length:12.20 mm
Height:6.22 mm

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Packaging

Packaging:Tube

Features

Number of Positions:1
Total Pitch:7.62 mm
Dielectric Strength:500Vrms
Minimum Insulation Resistance:1000MOhm
Seal Location:Top
Seal Description:Tape
Contact Material:Copper Alloy
Terminal Type:PC Pins
Contact Plating:Gold/Nickel
Current Rating:0.15A@30VDC
Contact Form:4PST
Pitch:2.54 mm
Voltage Rating:30 VDC
Actuator Type:Slide Raised
,
