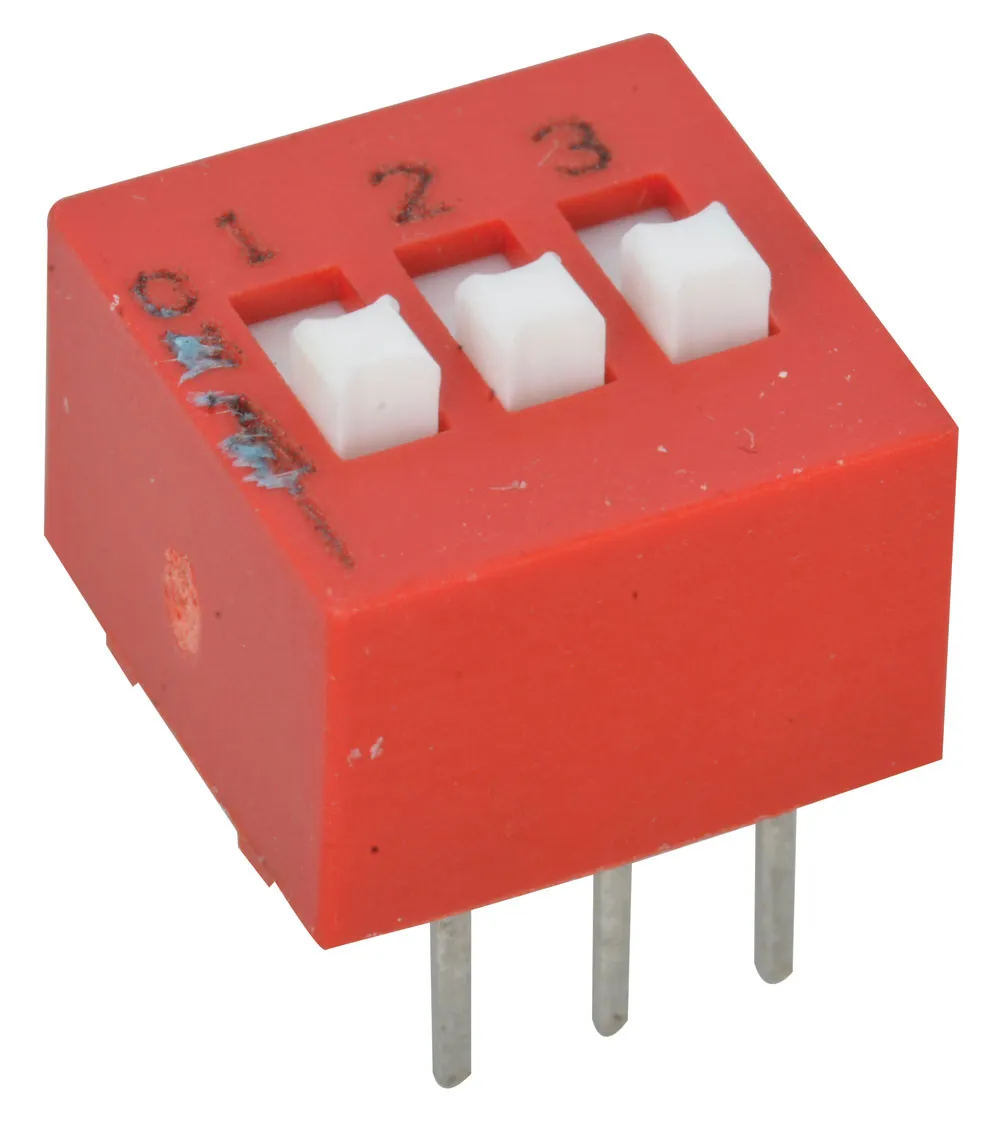

DIP Switch 3-Position Standard Raised Slide SPST 6-Pin

Specifications

  • Circuit: SPST
  • Number of Positions: 3
  • Current Rating (Amps): 50 mA
  • Voltage Rating: 24 VDC
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Contact Finish: Gold
  • Height Above Board: 0.334" (8.48 mm)
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Pitch: 0.100" (2.54 mm), Full
  • Washable: No
  • Operating Temperature: -55°C to 85°C
  • Body Material: Plastic
  • Length: 0.386" (9.80 mm)
  • Electrical Life: 10,000 Cycles
  • Compatible socket: 112193

Product Identification

Family:ValuePro
Product Type:DIP Switch

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole

Features

Number of Positions:3
Current Rating:0.05A@24VDC
Contact Plating:Gold
Terminal Type:PC Pins
Contact Form:SPST
Voltage Rating:24 VDC
Actuator Type:Slide Raised (Standard)
,
