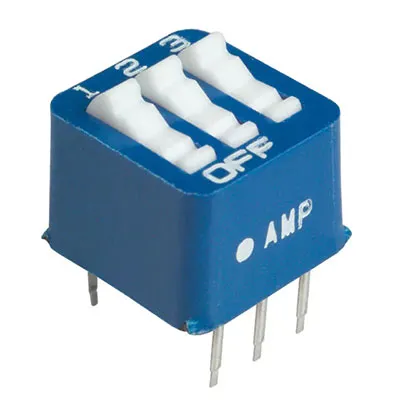

DIP Switch 3 Position SPST Raised Rocker Standard 60mA 5VDC DIP-6

Specifications

  • Series: 7100
  • Circuit: SPST
  • Number of Positions: 3
  • Current Rating (Amps): 60 mA
  • Voltage Rating: 5 VDC
  • Actuator Type: Rocker
  • Actuator Level: Raised
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Height Above Board: 0.340" (8.64 mm)
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Pitch: 0.100" (2.54 mm), Full
  • Washable: Yes
  • Features: Sealed
  • Operating Temperature: -55°C to 105°C
  • Body Material: Polyester (PET), Glass filled
  • Length: 0.380" (9.65 mm)
  • Mechanical Life: 2,000 Cycles
  • Electrical Life: 2,000 Cycles

Product Identification

Product Type:DIP Switch

Dimensions & Appearance

Mounting:Through Hole

Features

Number of Positions:3
Contact Form:SPST
Actuator Type:Rocker Raised (Standard)
,
