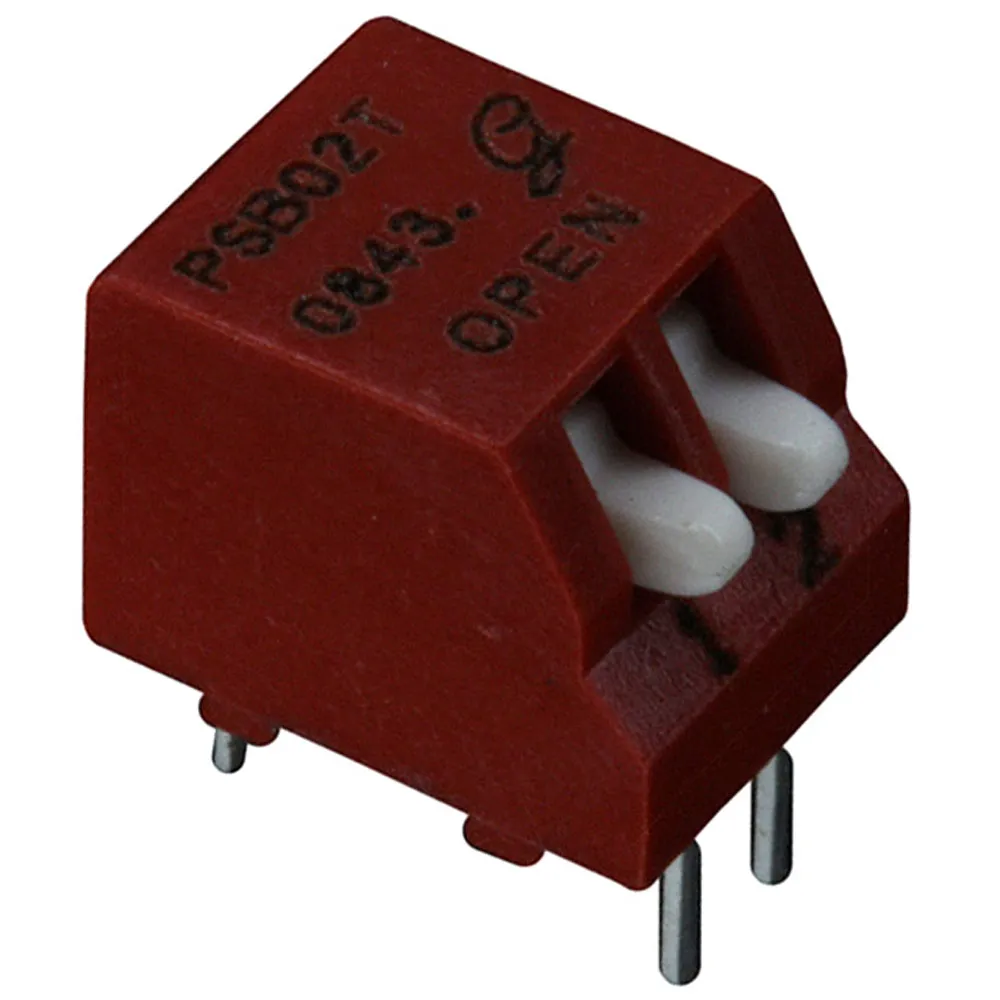

Switch DIP ON OFF Single Pole Single Throw (SPST) 2 Piano 0.15A 30VDC PC Pins 2000Cycles/Switch Cycles 2.54 mm Thru-Hole
Product Identification
Product Type:DIP Switch
Family:76
Dimensions & Appearance
Depth:9.65 mm
Height:7.65 mm
Length:7.1 mm
Mounting:Through Hole
Body Orientation:Straight
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Packaging
Packaging:Tube
Features
Seal Location:Base
Total Pitch:2.5 mm
Number of Positions:2
Minimum Insulation Resistance:1000MOhm
Dielectric Strength:750Vrms
Contact Material:Copper Alloy
Terminal Type:PC Pins
Contact Plating:Gold/Nickel
Current Rating:0.15A@30VDC
Pitch:2.5 mm
Actuator Type:Piano
Voltage Rating:30 VDC
