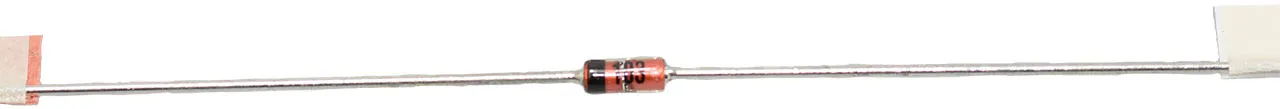

Diode Schottky 30 V Through Hole DO-35

Specifications

  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 30 V
  • Current - Average Rectified (Io): N/A
  • Voltage - Forward (Vf) (Max) @ If: 600 mV @ 200 mA
  • Speed: Fast Recovery =< 500 ns, > 200 mA (Io)
  • Reverse Recovery Time (trr): 10 ns
  • Current - Reverse Leakage @ Vr: 5 µA @ 20 V
  • Capacitance @ Vr, F: 50 pF @ 0 V, 1 MHz
  • Mounting Type: Through Hole
  • Package: DO-204AH, DO-35, Axial
  • Operating Temperature - Junction: 125°C (Max)
  • Base Number: SD103

Product Identification

Family:SD103

Dimensions & Appearance

Mounting:Through Hole

Operating conditions

Maximum Operating Temperature:125°C

Packaging

Package:DO-35

Output

Average Rectified Output Current:N/A

Features

Pins:2
Repetitive Peak Reverse Voltage:30 V
Peak Reverse Recovery Time:10ns
Maximum Reverse Current:5uA
Maximum Forward Voltage:0.6 V @ 0.2 A
Peak Non-Repetitive Surge Current:N/A
Configuration:Single
Application:Schottky Diode
,
