Schottky Barrier Rectifier

Features

  • Very small conduction losses
  • Negligible switching losses
  • Extremely fast switching
  • Low forward voltage drop

    • Product Identification

    Family:1N5817

    Dimensions & Appearance

    Mounting:Through Hole
    Width:2.7 mm
    Height:2.7 mm
    Length:5.2 mm

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-65°C

    Packaging

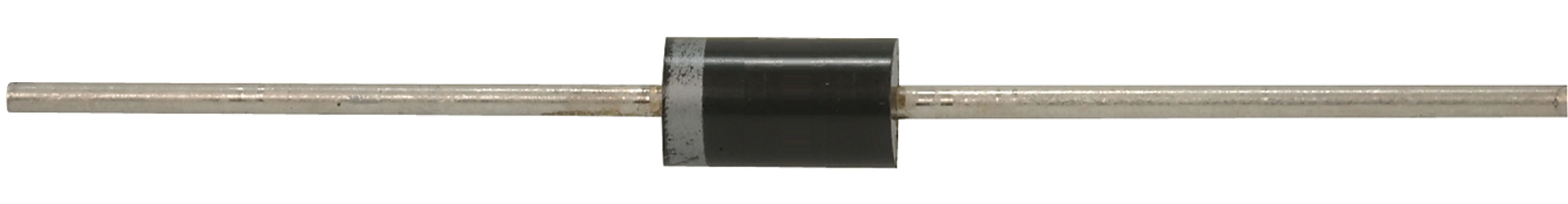

    Package:DO-41

    Output

    Average Rectified Output Current:1A

    Features

    Pins:2
    Repetitive Peak Reverse Voltage:20 V
    Maximum Forward Voltage:0.45 V
    Peak Non-Repetitive Surge Current:25A
    Maximum Reverse Current:1000uA
    Configuration:Single
    Application:Schottky Rectifier
    ,
