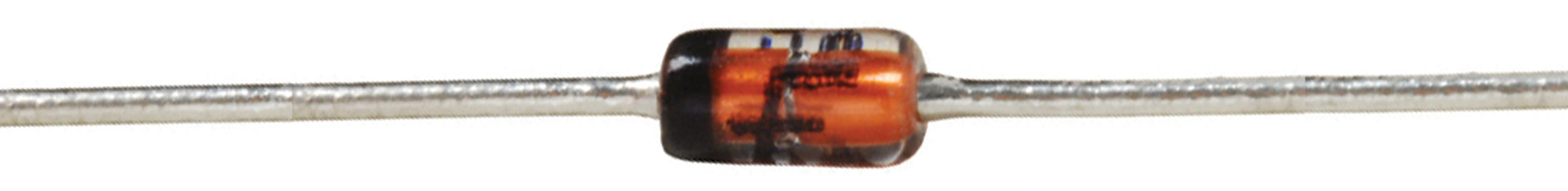

Diode Switching 100V 0.15A 2-Pin DO-35
This 100V small signal switching diodes features a black band color for Cathode and is characterized for it's tiny footprint. They are perfect for pulse and circuit applications and are know for it's fast speed.Specifications
- Power dissipation: 500 mW
- Max. repetitive reverse voltage: 100 V
- Package: DO-35
- Fast switching
- Axial leads
- Bulk packaging
Product Identification
Product Type:Switching Diode
Family:1N4148
Dimensions & Appearance
Height:1.9 mm
Width:1.9 mm
Length:3.9 mm
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:175°C
Minimum Operating Temperature:-65°C
Packaging
Package:DO-35
Features
Pins:2
Peak Non-Repetitive Surge Current:0.5 A
Maximum Forward Current:0.20 A
Peak Reverse Recovery Time:4ns
Maximum Reverse Current:5uA@75V
Repetitive Peak Reverse Voltage:100 V
Maximum Forward Voltage:1 V
Application:GENERAL PURPOSE
Configuration:Single
