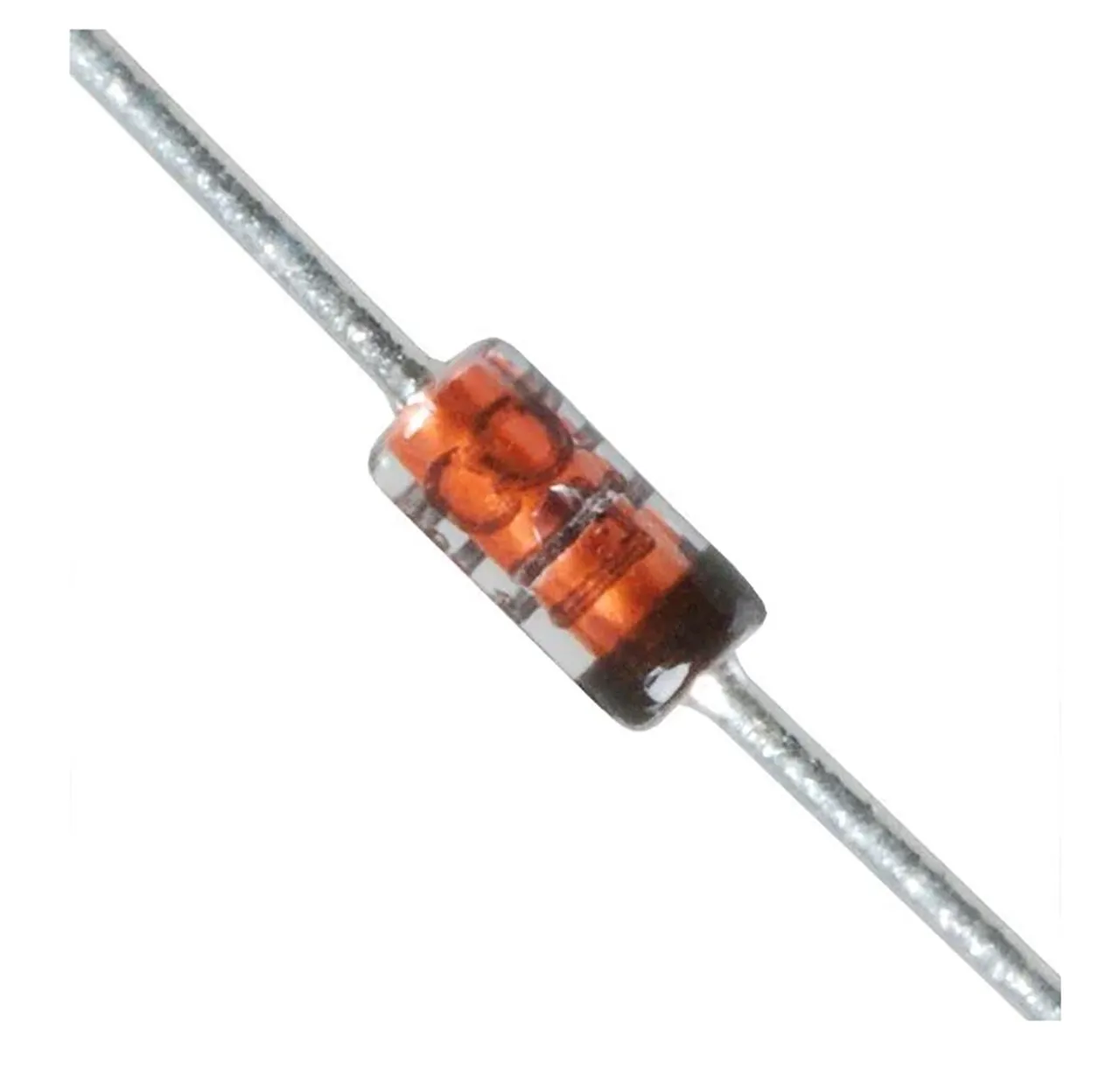

General Purpose Germanium Diode


DO-7 Glass Package

Features:
  • Forward voltage drop: 1V @ 200mA
  • Breakdown voltage: 100V @ 1mA
  • Reverse leakage current: 100µA @ 50V
  • Junction capacitance: 0.8pF @ VR=50V, 1MHz
  • At least 1 million hours MTBF
  • Optimized for radio frequency response

    Applications:
  • AM/FM detectors
  • Ratio detectors
  • FM discriminators
  • TV audio detectors
  • RF input probes
  • TV video detectors

    • Packaging

    Package:DO-7

    Features

    Maximum Forward Current:0.50 A
    Repetitive Peak Reverse Voltage:100 V
    Maximum Forward Voltage:1 V
    Application:GENERAL PURPOSE
    ,
