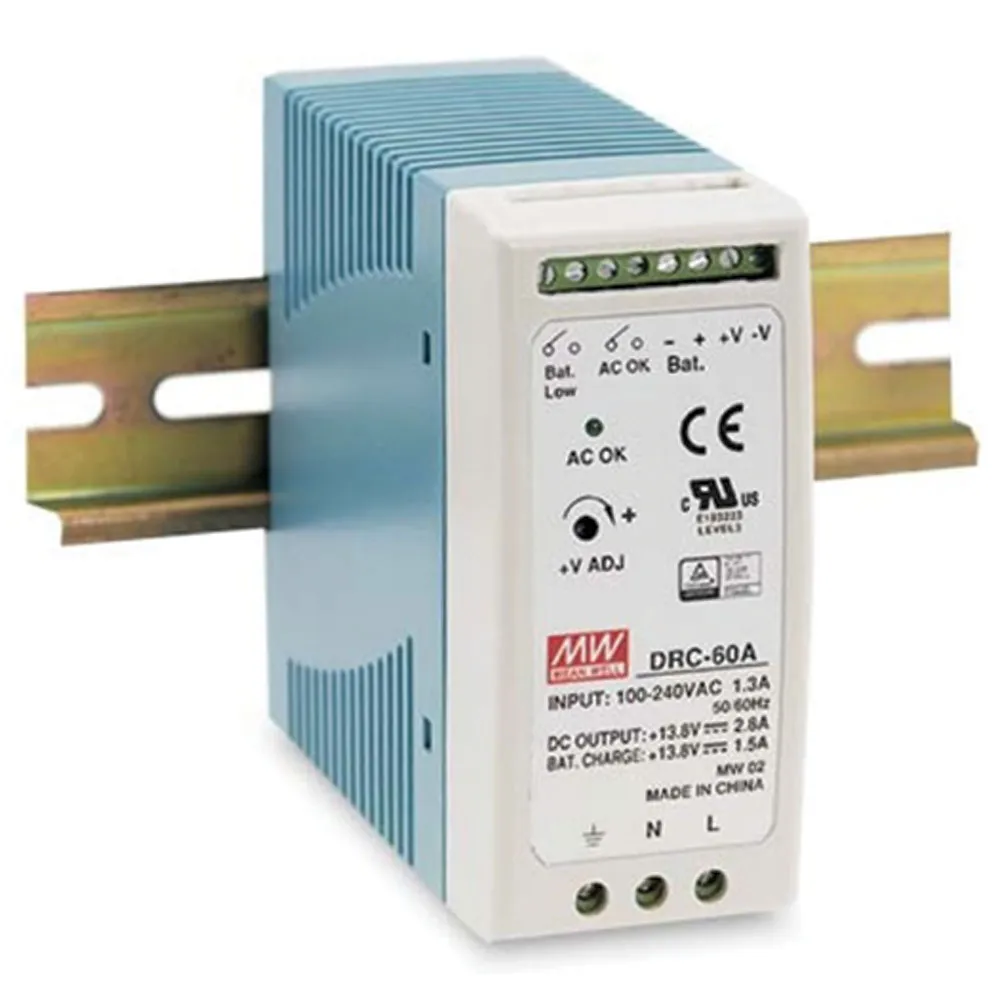

DIN Rail Switching Power Supply 13.8 Volts 2.8/1.5 Amps 60 Watts

13.8 Volts @ 2.8/1.5 Amps

Find out more about MEAN WELL Security Power Solutions.

Specifications

  • Output Power (W): 59.34
  • Ripple & Noise (mV p-p): 120
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 0.5%
  • Efficiency: 86%
  • Agency Approvals: UL, CUL, TUV
  • Size (L x W x H) inches: 3.93 X 1.57 X 3.54
  • Universal AC input / Full range
  • Protections: short circuit, over voltage, overload
  • Battery low protection/Battery polarity protection by fuse
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Alarm signal for AC OK and Battery low
  • Cooling by free air convection
  • LED indicates power on
  • 100% full load burn in tested
  • 3 year warranty

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:DRC-60

Compliance

Agency Approvals: CB, CE, CUL, EN, TUV, UL

Dimensions & Appearance

Depth:1.57 in.
Color:White
Width:3.54 in.
Height:3.94 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.3 A

Output

Number of Outputs:1
Output Voltage:13.8 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:4.30 A

Features

PFC Function:No
Low Power Source (LPS):Yes
Efficiency:86%
Power Rating:59.3 W
,
