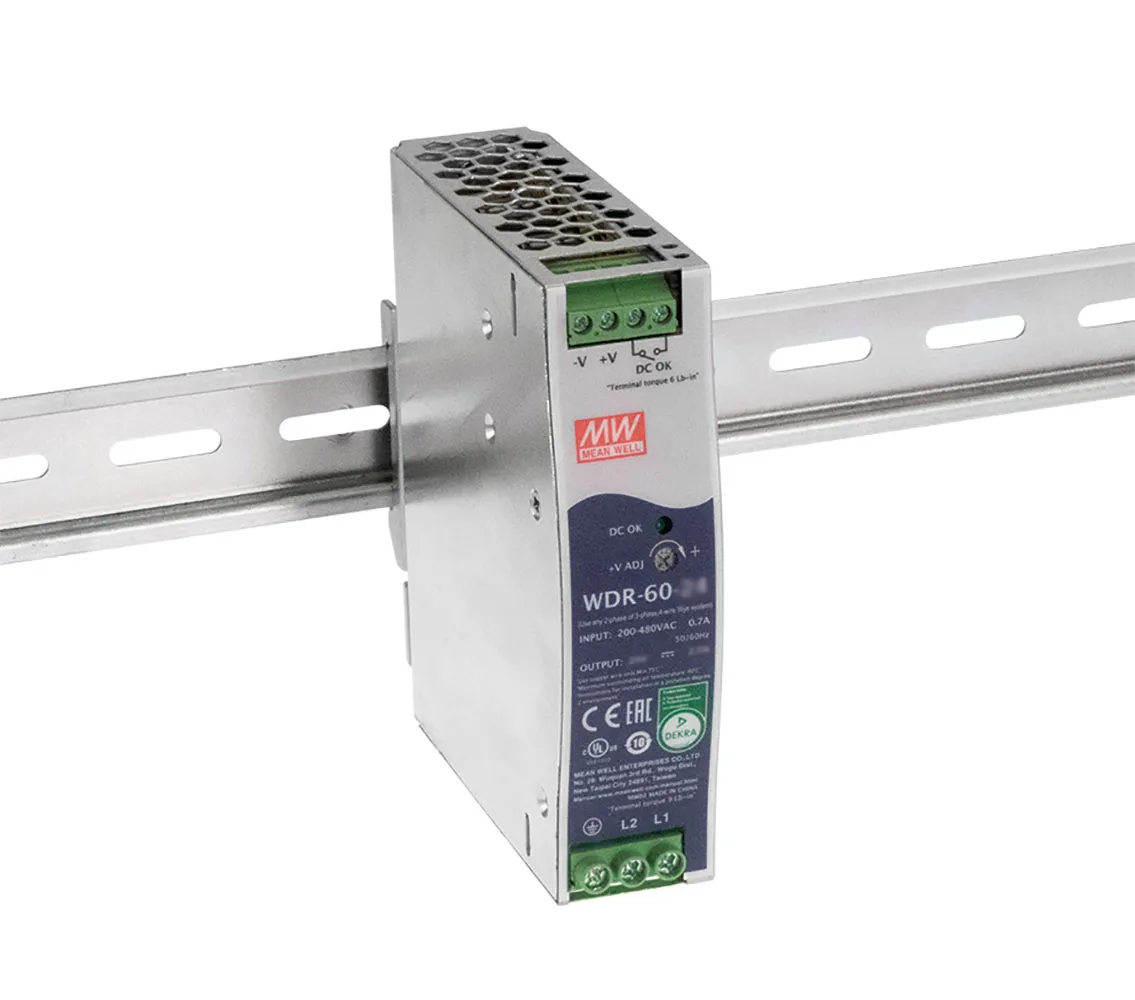

DIN Rail Power Supply 48V 1.25A 60W Ultra-Wide Industrial Input 180-550VAC

Output: 48 Volts DC @ 1.25 Amps

Features

  • 180 to 550 VAC ultra-wide input for 1-phase or 2-phase
  • 32mm slim width
  • Can be installed on DIN rail TS-35/7.5 or TS-35/15
  • 4.7 KVac I/O high isolation (reinforced isolation)
  • Cooling by free air convection
  • Ultra-wide operating temperature: -30 to +85°C (>+60°C derating)
  • Over voltage category II
  • DC OK relay contact
  • DC output voltage adjustable (+20%)
  • 3 year warranty

Specifications

  • Output Voltage: 48 VDC
  • Output Current: 1.25 A
  • Rated Power: 60 W
  • Size: 1.26"W x 4.93"H x 4.02"D (32 x 125.2 x 102 mm)
  • Agency Approvals: UL, TUV, CE, EN, EAC

Applications

  • Industrial control systems
  • Semiconductor fabrication equipment
  • Factory automation
  • Electromechanical apparatus

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:WDR-60

Compliance

Agency Approvals: CE, EAC, EN, TUV, UL

Dimensions & Appearance

Color:Silver
Depth:4.02 in.
Width:1.26 in.
Height:4.93 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.4 A
Input Voltage:180 VAC to 550 VAC

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.25 A

Features

PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:4700V
Efficiency:90.5%
Power Rating:60 W
,
